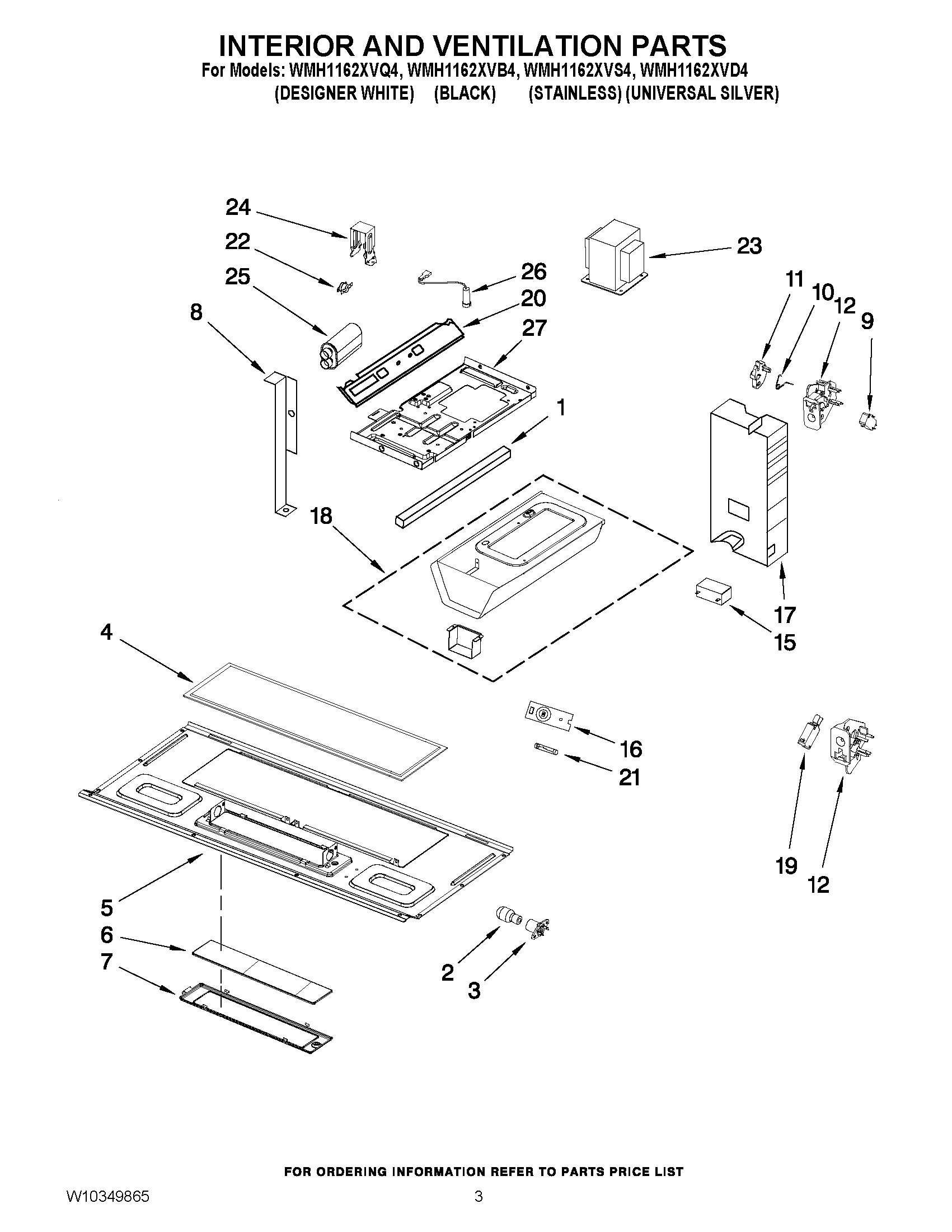

WMH1162XVD4 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W11523261 Whirlpool Microwave Cushion
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10210871 Whirlpool Microwave Lamp Housing
4	W10208631A Whirlpool Microwave Grease Filter
5	W10245196 Whirlpool Microwave Base
6	WPW10210875 Whirlpool Microwave Lamp Glass Cover
7	HOLDER, GLASS
8	W10313275 Whirlpool Microwave Support Bracket
9	W10269458 Whirlpool Microwave Door Switch
10	W10156812 Whirlpool Spring
11	W10562613 Whirlpool Microwave Interlock Cam Assembly
12	WP8206419 Whirlpool Microwave Top Interlock Support
12	WPW10156813 Whirlpool Microwave Bottom Interlock Support
15	W11405832 Whirlpool Microwave Capacitor
16	W10163422 Whirlpool Microwave Thermistor
17	SEPERATOR, SIDE WALL
18	W10313269 Whirlpool Microwave Base
19	W10269460 Whirlpool Microwave Door Switch
20	W10315759 Whirlpool Microwave Base
21	FUSE-THRML
22	W10269232 Whirlpool Microwave Thermostat Fix
23	TRANSFORMER, H.V.
24	W10532063 Whirlpool Microwave Bracket
25	CAPACTR-MG
26	W11256462 Whirlpool Microwave Diode
27	W10269456 Whirlpool Microwave Base
