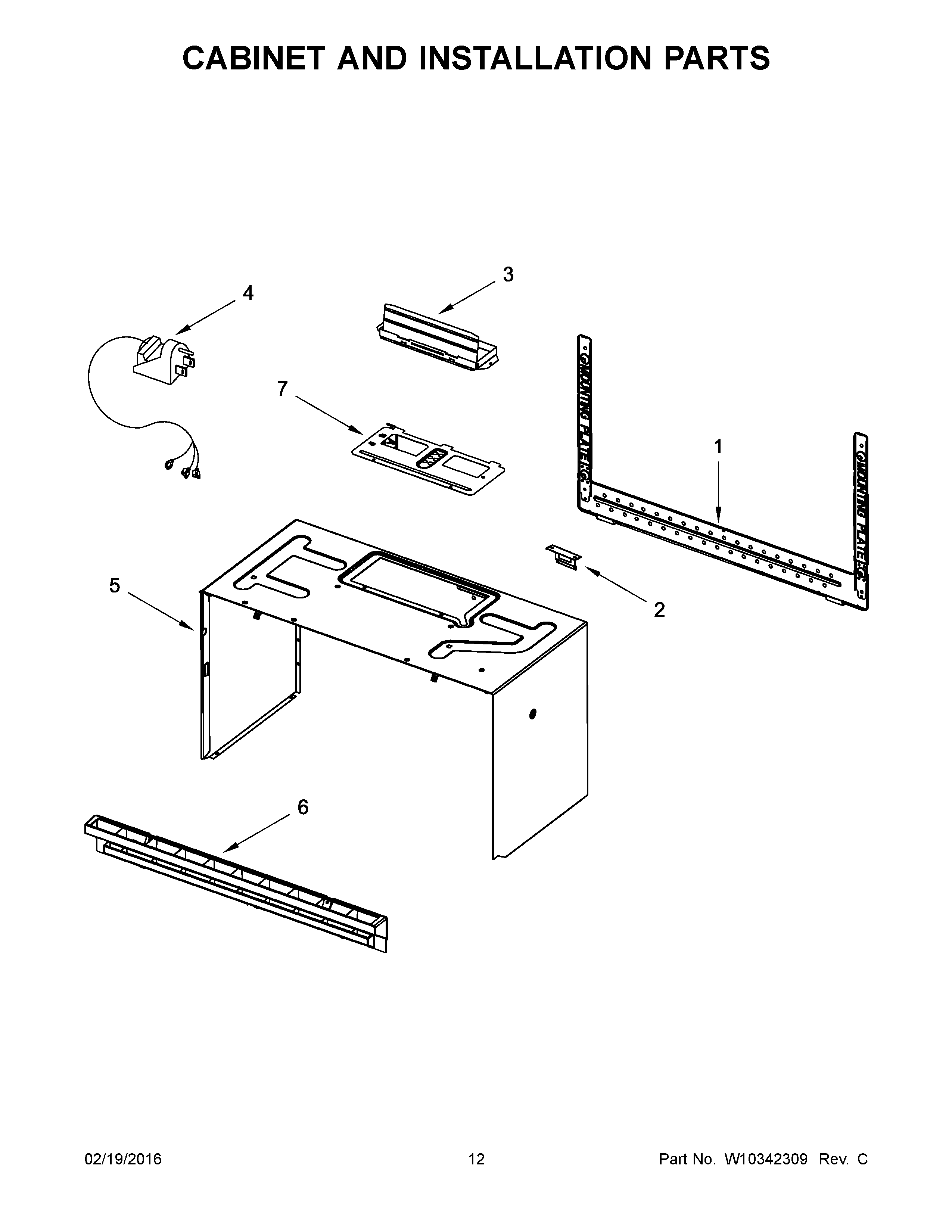

WMH1163XVB1 07 – CABINET AND INSTALLATION PARTS

WMH1163XVB1 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMH1163XVB1 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIW10539841 Whirlpool Microwave Wire Harness
NIW10539842 Whirlpool Microwave Harness Wire
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIW10138802 Whirlpool Microwave Screw
NIGrnd Wire, Filter
NIH.V. Wire Assy
NIW10821385 Whirlpool Hardware Kit
NIMISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY
NIW10470168 Whirlpool Microwave Wire Harness
1WPW10269225 Whirlpool Bracket Mounting
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5ACASE, OUTER (BLACK)
5CASE, OUTER (WHITE)
6CW10245216 Whirlpool Microwave Vent Grille
6BW10315776 Whirlpool Microwave Vent Grill
6W10245217 Whirlpool Microwave Vent Grill
6AW10245218 Whirlpool Microwave Vent Grille
7COVER, HOOD FAN MOTOR
