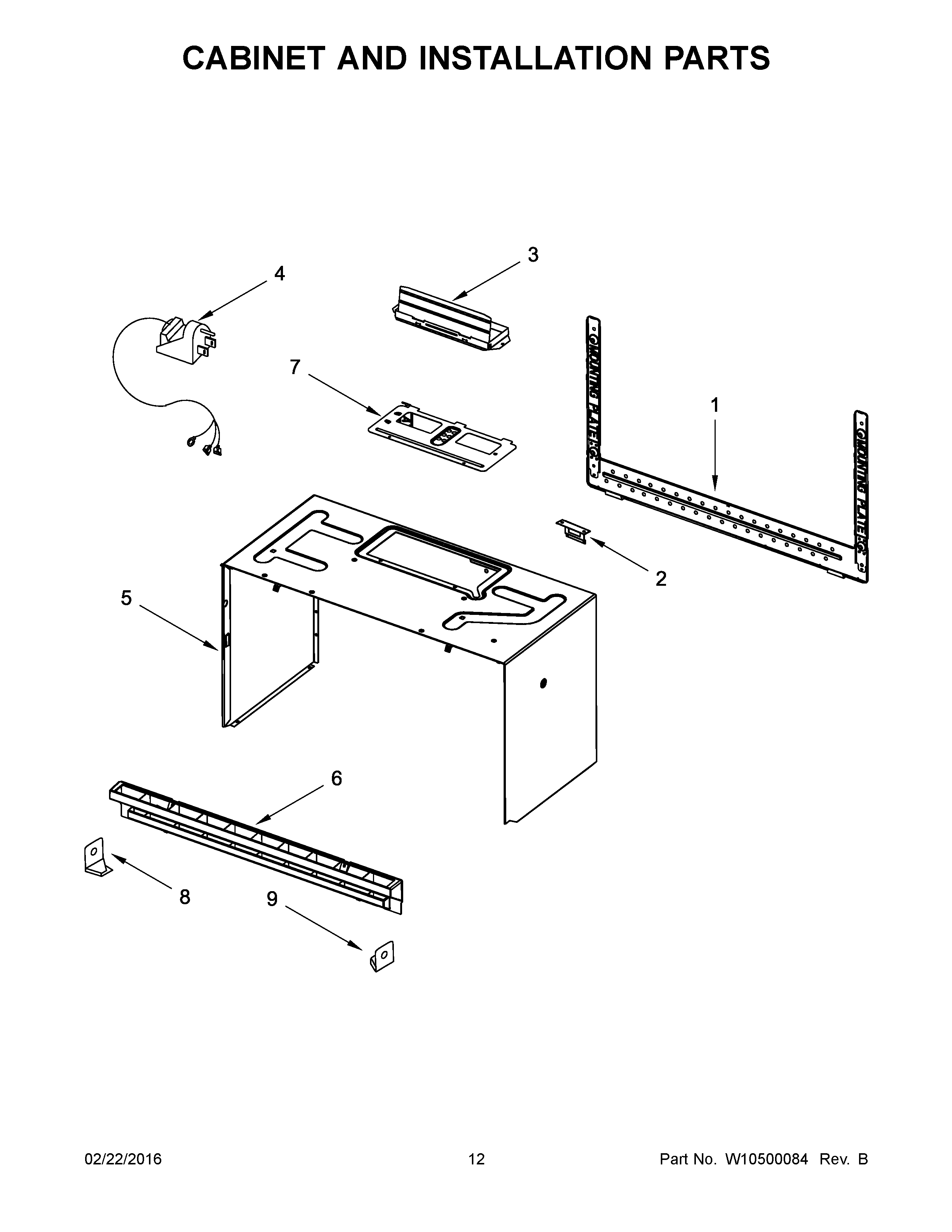

WMH1163XVB3 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	W10539842 Whirlpool Microwave Harness Wire
NI	W10539841 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	W10821385 Whirlpool Hardware Kit
1	WPW10269225 Whirlpool Bracket Mounting
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	W10708076 Whirlpool Microwave Power Cord
5	CASE, OUTER (WHITE)
5A	CASE, OUTER (BLACK)
6C	GRILLE, VENT (STAINLESS)
6	W10245217 Whirlpool Microwave Vent Grill
6B	W10315776 Whirlpool Microwave Vent Grill
6A	W10245218 Whirlpool Microwave Vent Grille
7	COVER, HOOD FAN MOTOR
8	W10830163 Whirlpool Microwave Mounting Bracket
9	W10810989 Whirlpool Microwave Mounting Bracket
