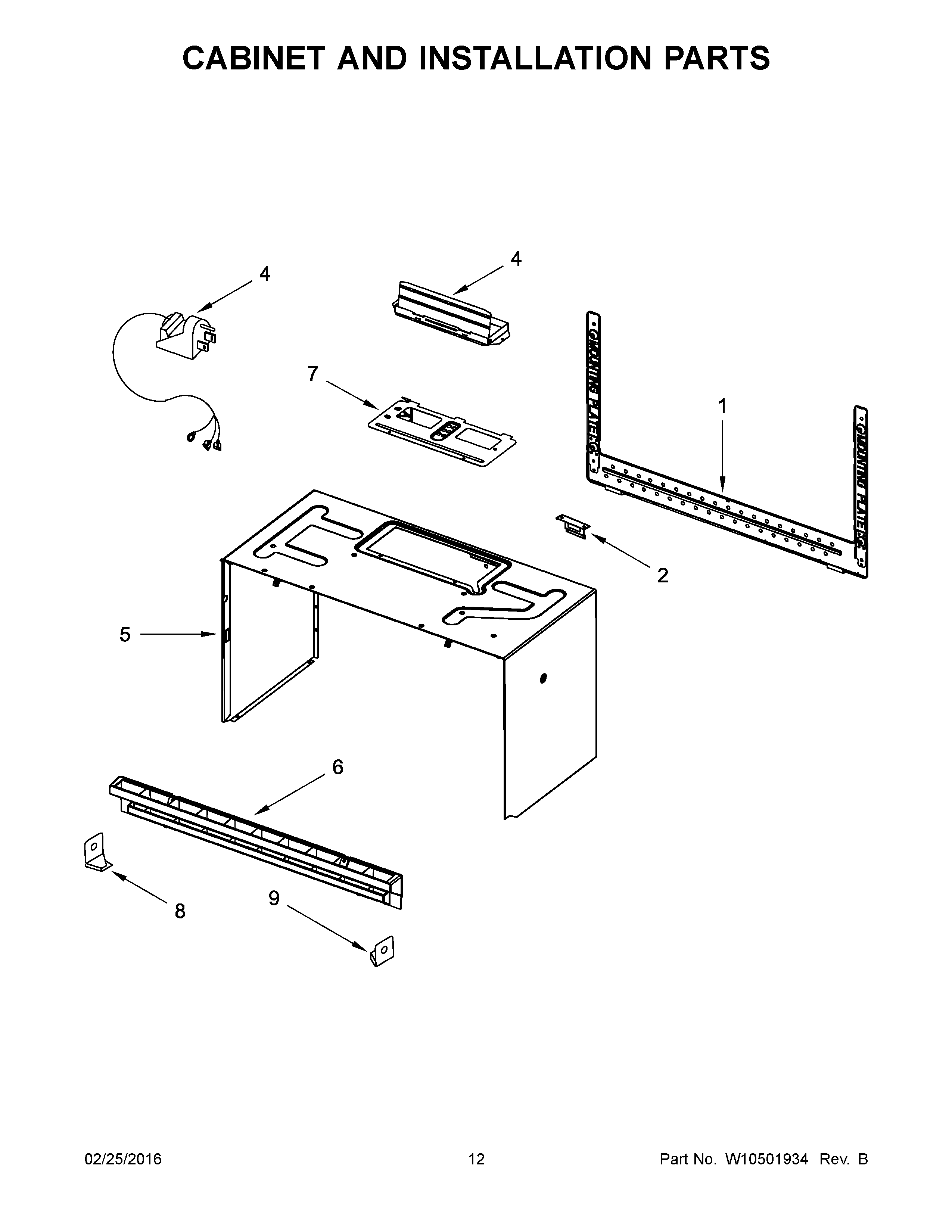

WMH1163XVB4 07 – CABINET AND INSTALLATION PARTS

WMH1163XVB4 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMH1163XVB4 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIW10539842 Whirlpool Microwave Harness Wire
NIW10539841 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIW10821385 Whirlpool Hardware Kit
NIW10190018 Whirlpool Microwave Template
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5AWPW10462001 Whirlpool Microwave Cab Wrapper
5WPW10462003 Whirlpool Oven Microwave Cabinet Wrapper
6CGRILLE, VENT (STAINLESS)
6AW10245218 Whirlpool Microwave Vent Grille
6BW10315776 Whirlpool Microwave Vent Grill
6W10245217 Whirlpool Microwave Vent Grill
7COVER, HOOD FAN MOTOR
8W10830163 Whirlpool Microwave Mounting Bracket
9W10810989 Whirlpool Microwave Mounting Bracket
