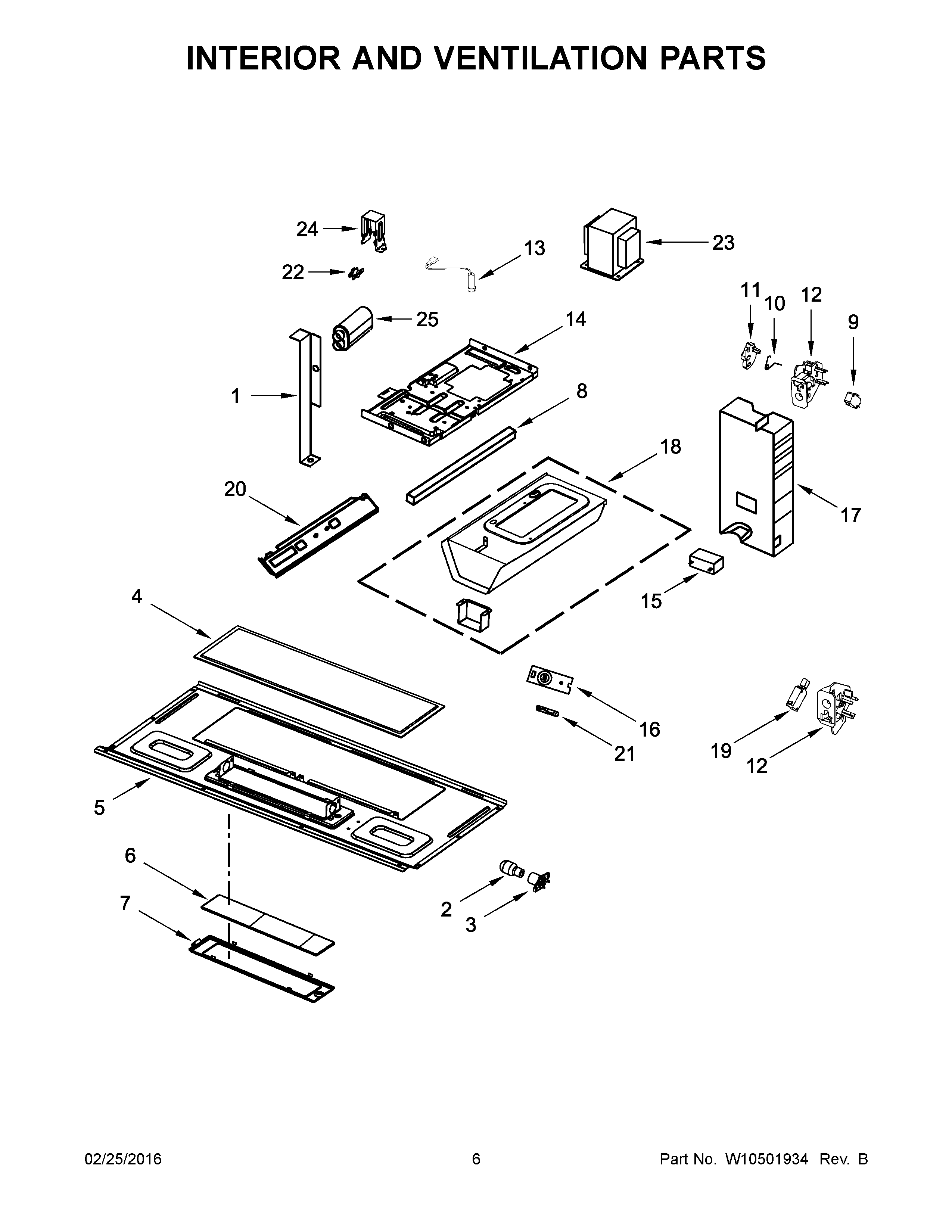

WMH1163XVQ4 04 – INTERIOR AND VENTILATION PARTS

WMH1163XVQ4 04 – INTERIOR AND VENTILATION PARTS

Written by

in

WMH1163XVQ4 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10313275 Whirlpool Microwave Support Bracket
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10208631A Whirlpool Microwave Grease Filter
5W10245196 Whirlpool Microwave Base
6WPW10210875 Whirlpool Microwave Lamp Glass Cover
7HOLDER, GLASS
8W11523261 Whirlpool Microwave Cushion
9W10269458 Whirlpool Microwave Door Switch
10W10156812 Whirlpool Spring
11W10562613 Whirlpool Microwave Interlock Cam Assembly
12AWPW10156813 Whirlpool Microwave Bottom Interlock Support
12WP8206419 Whirlpool Microwave Top Interlock Support
13W11256462 Whirlpool Microwave Diode
14W10269456 Whirlpool Microwave Base
15W11405832 Whirlpool Microwave Capacitor
16W10163422 Whirlpool Microwave Thermistor
17SEPERATOR, SIDE WALL
18W10313269 Whirlpool Microwave Base
19W10269460 Whirlpool Microwave Door Switch
20W10315759 Whirlpool Microwave Base
21FUSE-THRML
22W10269232 Whirlpool Microwave Thermostat Fix
23TRANSFORMER, H.V.
24W10532063 Whirlpool Microwave Bracket
25CAPACTR-MG
