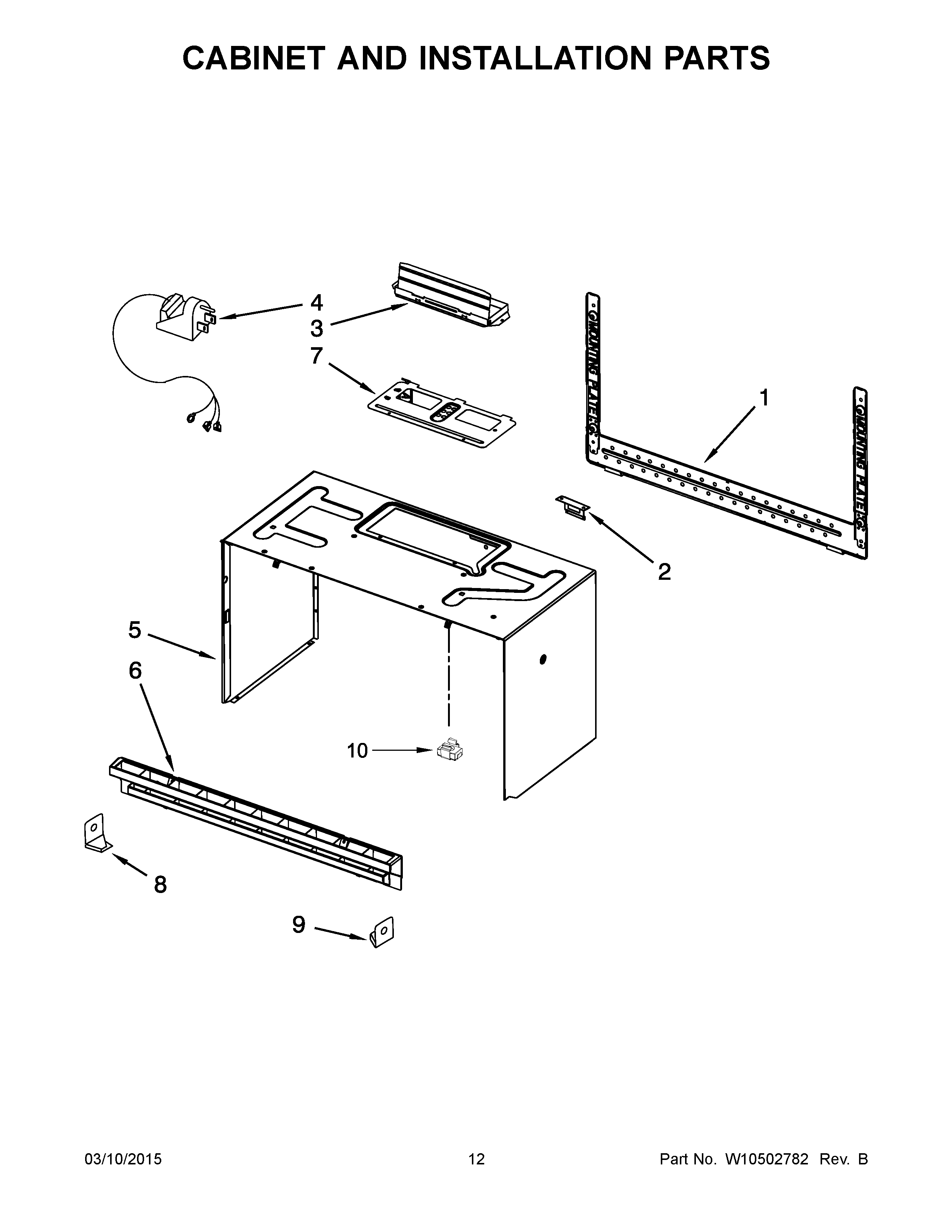

WMH1163XVQ5 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	W10539846 Whirlpool Wire Harness
NI	W10539842 Whirlpool Microwave Harness Wire
NI	W10539841 Whirlpool Microwave Wire Harness
NI	W10540464 Whirlpool Microwave Wire Harness
NI	W10821385 Whirlpool Hardware Kit
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10190018 Whirlpool Microwave Template
1	W11025649 Whirlpool Microwave Mounting Plate
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	W10708076 Whirlpool Microwave Power Cord
5A	WPW10462001 Whirlpool Microwave Cab Wrapper
5	WPW10462003 Whirlpool Oven Microwave Cabinet Wrapper
6B	GRILLE, VENT (STAINLESS)
6	W10245217 Whirlpool Microwave Vent Grill
6C	W10315776 Whirlpool Microwave Vent Grill
6A	W10245218 Whirlpool Microwave Vent Grille
7	COVER, HOOD FAN MOTOR
8	W10830163 Whirlpool Microwave Mounting Bracket
9	W10810989 Whirlpool Microwave Mounting Bracket
10	W10596040 Whirlpool Microwave Nut
