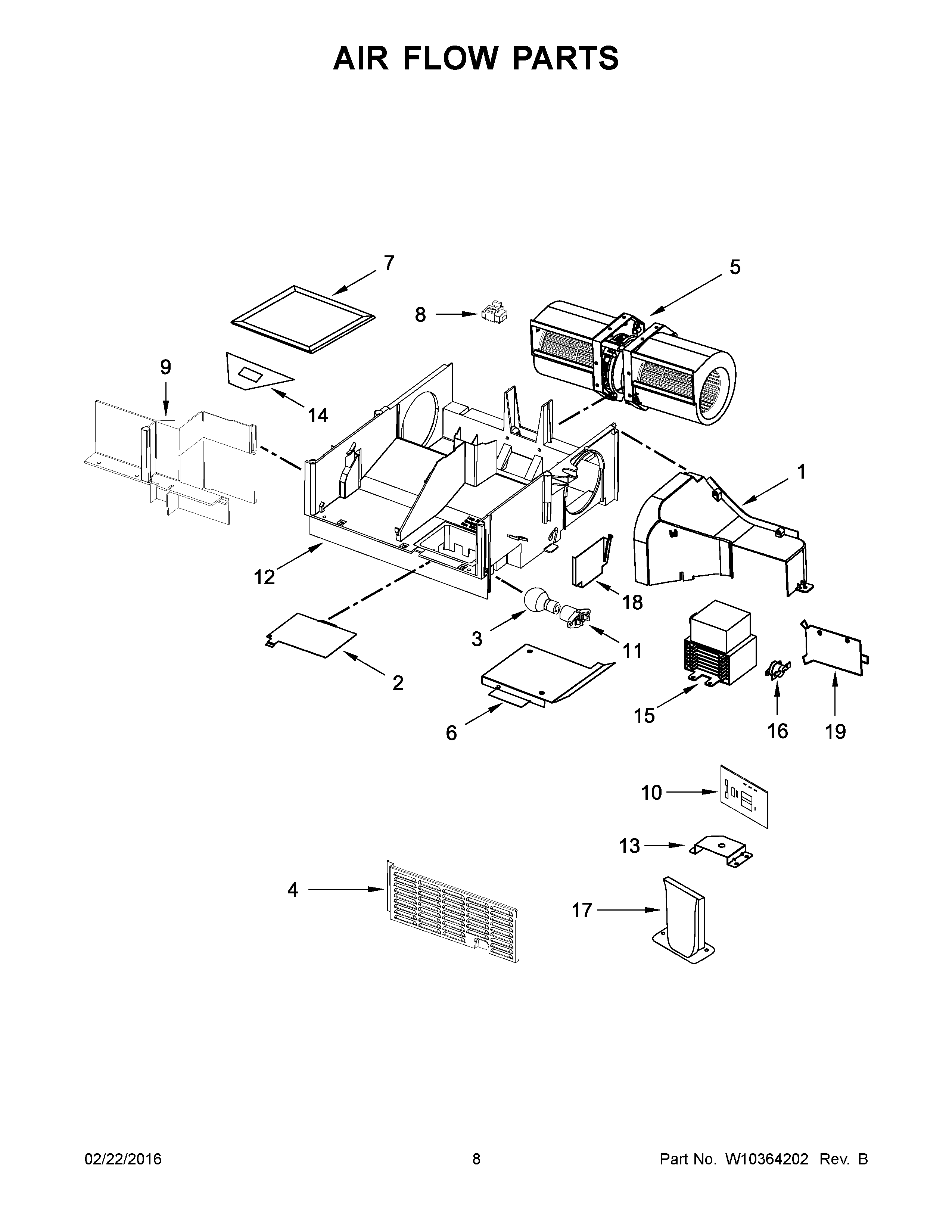

WMH1163XVS2 05 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	W10342991 Whirlpool Microwave Side Cover
5	MOTOR, FAN ASSY
6	W10138797 Whirlpool Microwave Duct Cover
7	8206230A Whirlpool Microwave Charcoal Filter
8	W10596040 Whirlpool Microwave Nut
9	AIR GUIDE
10	W10422269 Whirlpool Microwave Filter
11	WPW10210878 Whirlpool Microwave LMP Housing
12	BASE PLATE, AIR GUIDE
13	W10532064 Whirlpool Microwave Mounting Bracket
14	SOCKET, MOTOR WIRE
15	W10754299 Whirlpool Microwave Oven Magnetron
16	W10598693 Whirlpool Microwave Thermostat Fix
17	W11381953 Whirlpool Microwave Plate
18	W10269469 Whirlpool Microwave Duct Cover
19	W10313274 Whirlpool Microwave Mounting Bracket
