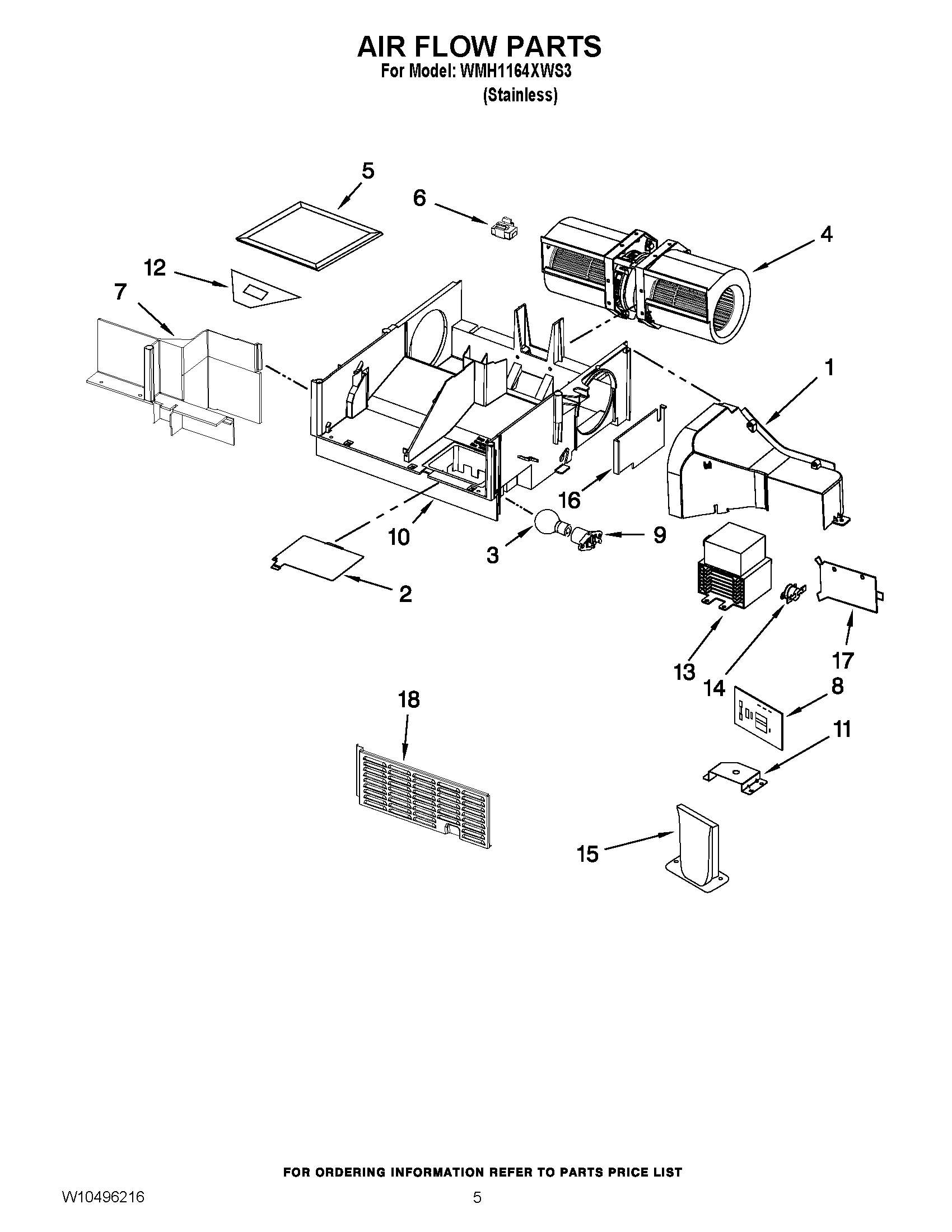

WMH1164XWS3 04 – AIR FLOW PARTS

WMH1164XWS3 04 – AIR FLOW PARTS

Written by

in

WMH1164XWS3 04 – AIR FLOW PARTS

Products

PositionProduct
1Deflector, Air
28206382 Whirlpool Microwave Light Cover
38206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4MOTOR, HOOD FAN BLOWER
58206230A Whirlpool Microwave Charcoal Filter
6W10596040 Whirlpool Microwave Nut
7AIR GUIDE
8W10422269 Whirlpool Microwave Filter
9WPW10210878 Whirlpool Microwave LMP Housing
10BASE PLATE, AIR GUIDE
11W10532064 Whirlpool Microwave Mounting Bracket
12SOCKET, MOTOR WIRE
13W10754299 Whirlpool Microwave Oven Magnetron
14W10598693 Whirlpool Microwave Thermostat Fix
15W11381953 Whirlpool Microwave Plate
16W10269469 Whirlpool Microwave Duct Cover
17W10313274 Whirlpool Microwave Mounting Bracket
18W10342991 Whirlpool Microwave Side Cover
