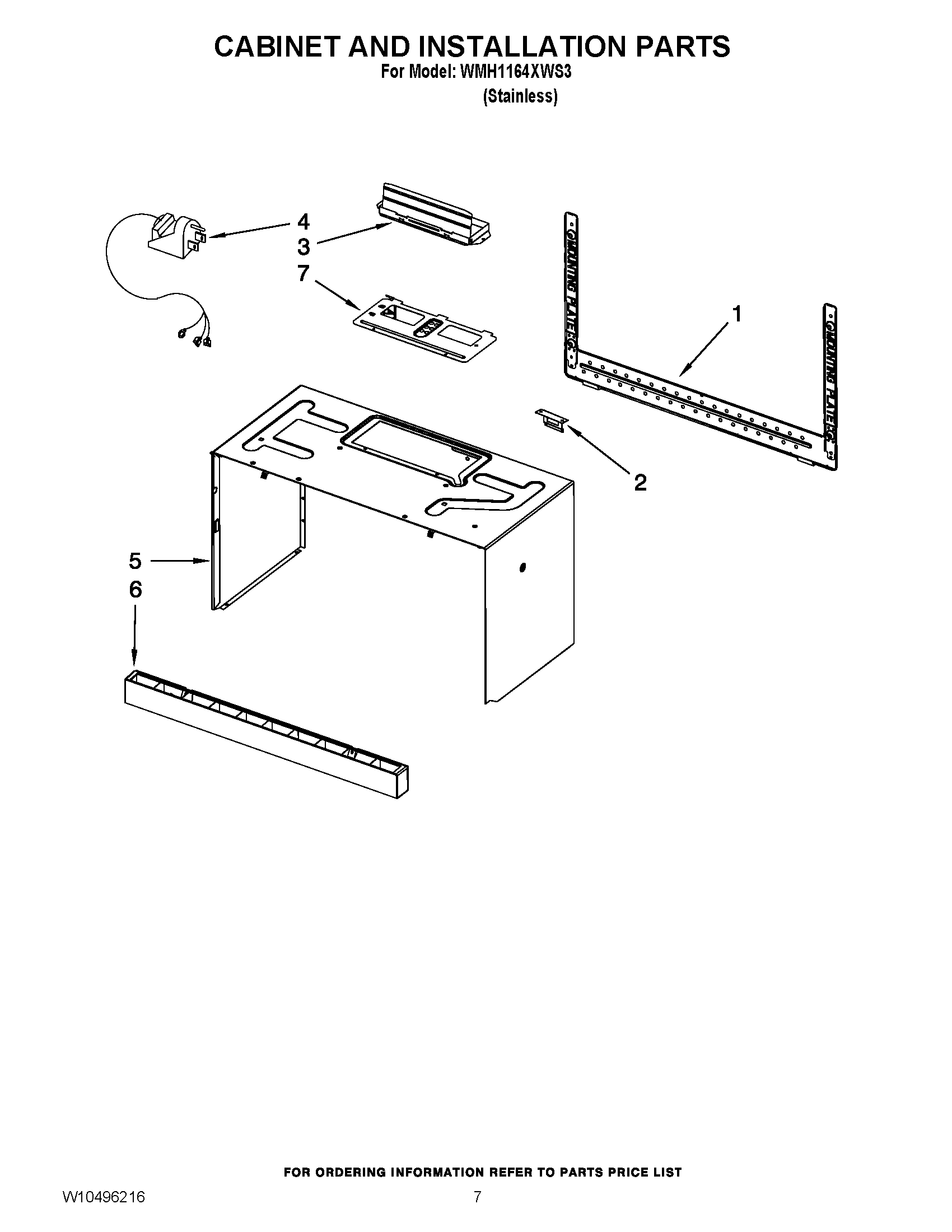

WMH1164XWS3 06 – CABINET AND INSTALLATION PARTS

WMH1164XWS3 06 – CABINET AND INSTALLATION PARTS

Written by

in

WMH1164XWS3 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIW10539842 Whirlpool Microwave Harness Wire
NIW10539841 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIW10821385 Whirlpool Hardware Kit
1WPW10269225 Whirlpool Bracket Mounting
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5CASE, OUTER (BLACK)
6GRILLE, VENT (STAINLESS)
7COVER, HOOD FAN MOTOR
