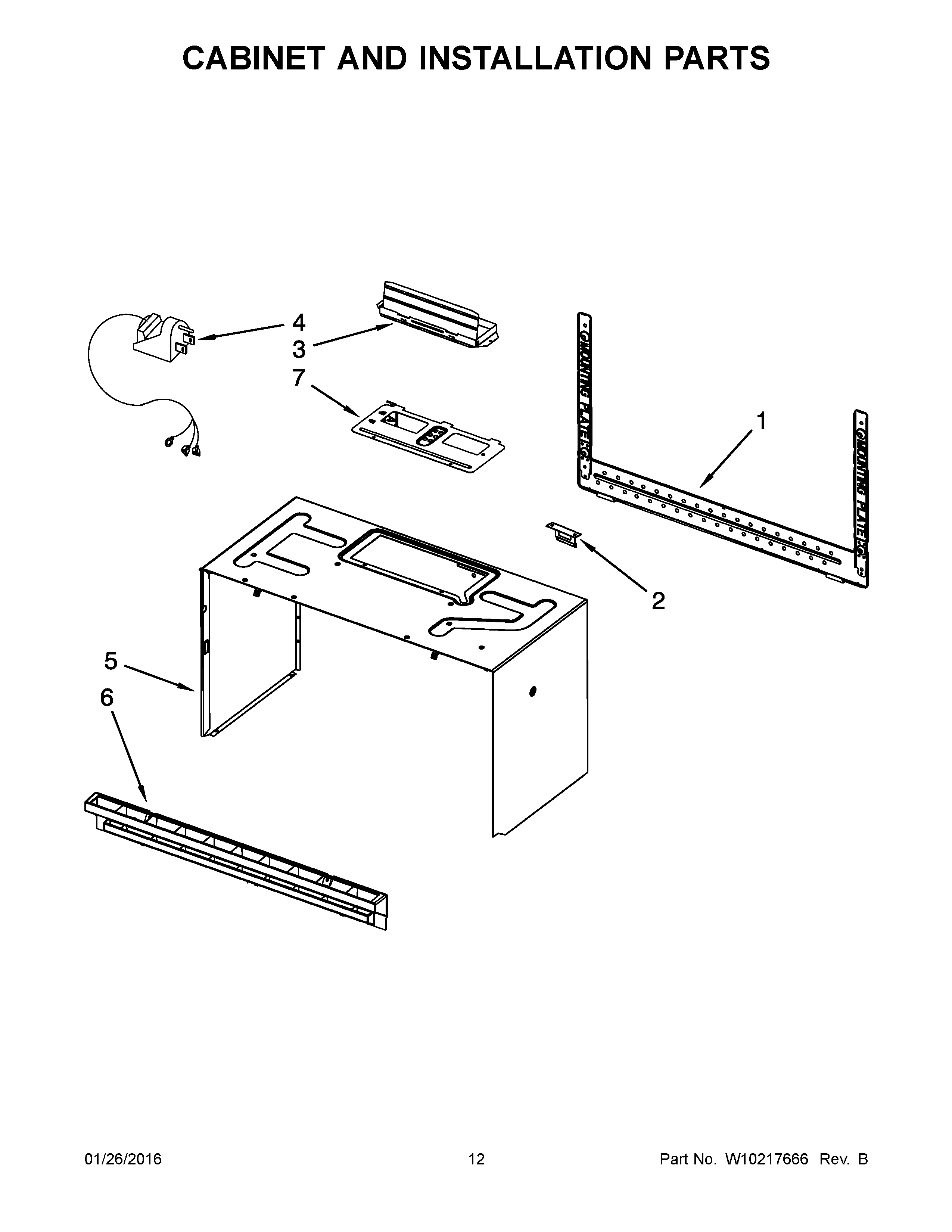

WMH2175XVB0 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	MISCELLANEOUS PARTS, HDLMP/TT WIRE ASSEMBLY
NI	MISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	W10539842 Whirlpool Microwave Harness Wire
NI	W10470168 Whirlpool Microwave Wire Harness
NI	Grnd Wire, Filter
NI	MISCELLANEOUS PARTS, MAIN HARNESS
NI	8205948 Whirlpool Microwave Mount
NI	H.V. Wire Assy
1	WPW10269225 Whirlpool Bracket Mounting
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	W10595343 Whirlpool Microwave Power Cord
5B	CASE, OUTER (BISCUIT)
5A	CASE, OUTER (BLACK)
5	CASE, OUTER (WHITE)
6	W10245217 Whirlpool Microwave Vent Grill
6B	W10247768 Whirlpool Microwave Vent Grill
6A	W10245218 Whirlpool Microwave Vent Grille
6C	W10245216 Whirlpool Microwave Vent Grille
7	COVER, HOOD FAN MOTOR
