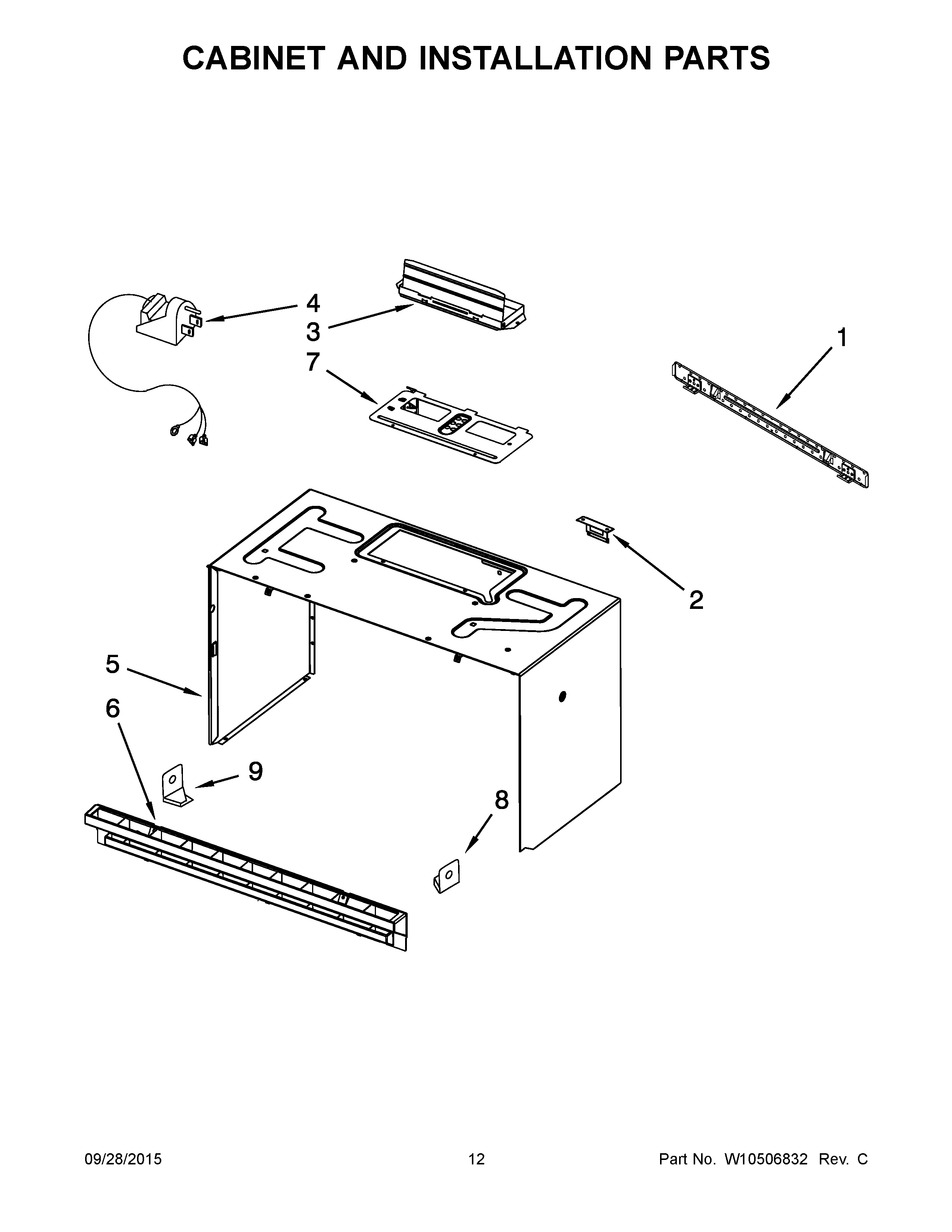

WMH2175XVQ5 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	W10539841 Whirlpool Microwave Wire Harness
NI	8205948 Whirlpool Microwave Mount
NI	W10539842 Whirlpool Microwave Harness Wire
NI	W10470168 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	W10190018 Whirlpool Microwave Template
1	W11025649 Whirlpool Microwave Mounting Plate
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	W10708076 Whirlpool Microwave Power Cord
5	WPW10462003 Whirlpool Oven Microwave Cabinet Wrapper
5A	WPW10462001 Whirlpool Microwave Cab Wrapper
5B	W10461999 Whirlpool Microwave Cabinet Wrapper
6A	W10245218 Whirlpool Microwave Vent Grille
6B	W10247768 Whirlpool Microwave Vent Grill
6	W10245217 Whirlpool Microwave Vent Grill
7	COVER, HOOD FAN MOTOR
8	W10703282 Whirlpool Microwave Mounting Bracket
8A	W10810989 Whirlpool Microwave Mounting Bracket
9	W11026306 Whirlpool Microwave Mounting Bracket
9A	W10830163 Whirlpool Microwave Mounting Bracket
