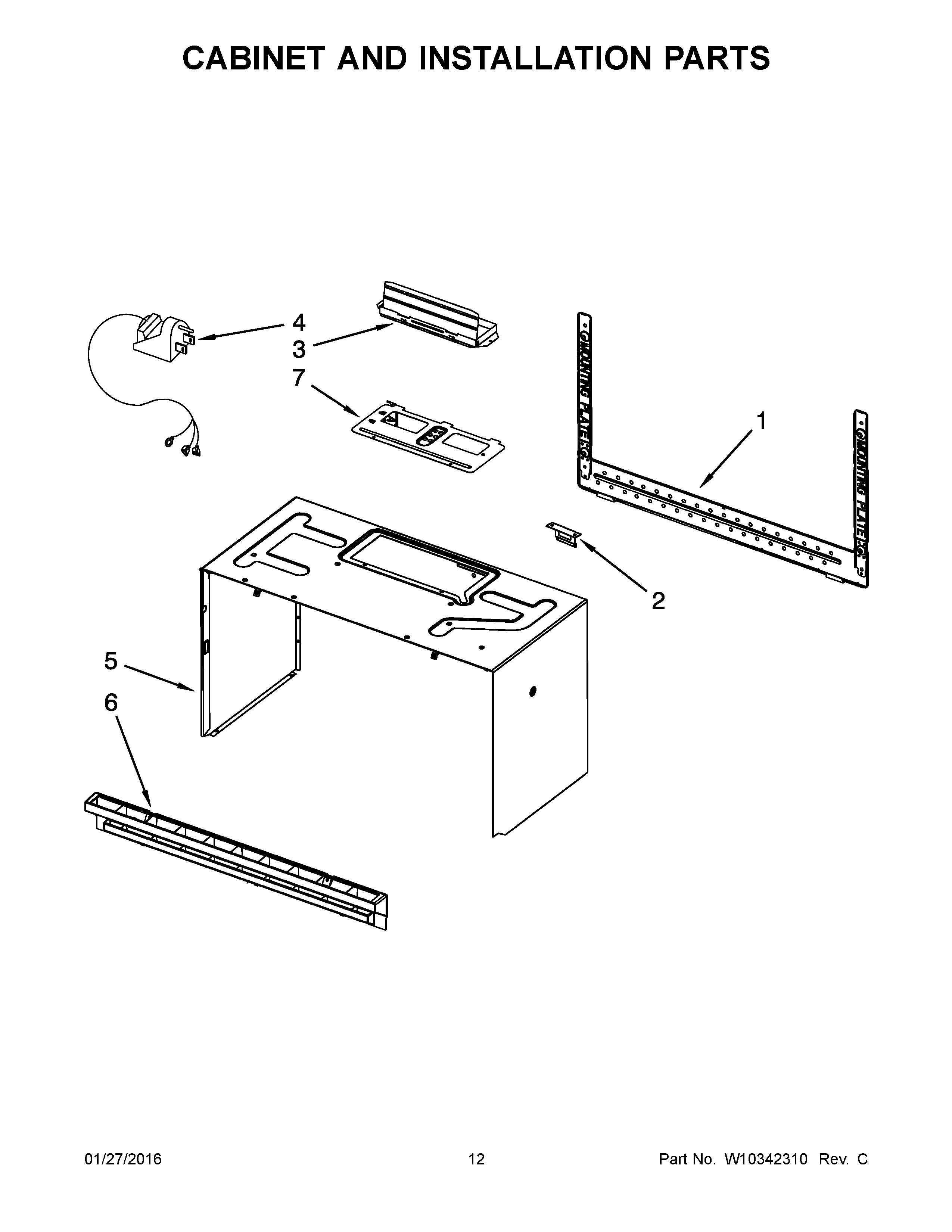

WMH2175XVS2 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	MISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	W10539842 Whirlpool Microwave Harness Wire
NI	W10539841 Whirlpool Microwave Wire Harness
NI	W10470168 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	Grnd Wire, Filter
NI	H.V. Wire Assy
NI	8205948 Whirlpool Microwave Mount
1	WPW10269225 Whirlpool Bracket Mounting
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	W10708076 Whirlpool Microwave Power Cord
5B	CASE, OUTER (BISCUIT)
5	CASE, OUTER (WHITE)
5A	CASE, OUTER (BLACK)
6C	W10245216 Whirlpool Microwave Vent Grille
6	W10245217 Whirlpool Microwave Vent Grill
6B	W10247768 Whirlpool Microwave Vent Grill
6A	W10245218 Whirlpool Microwave Vent Grille
7	COVER, HOOD FAN MOTOR
