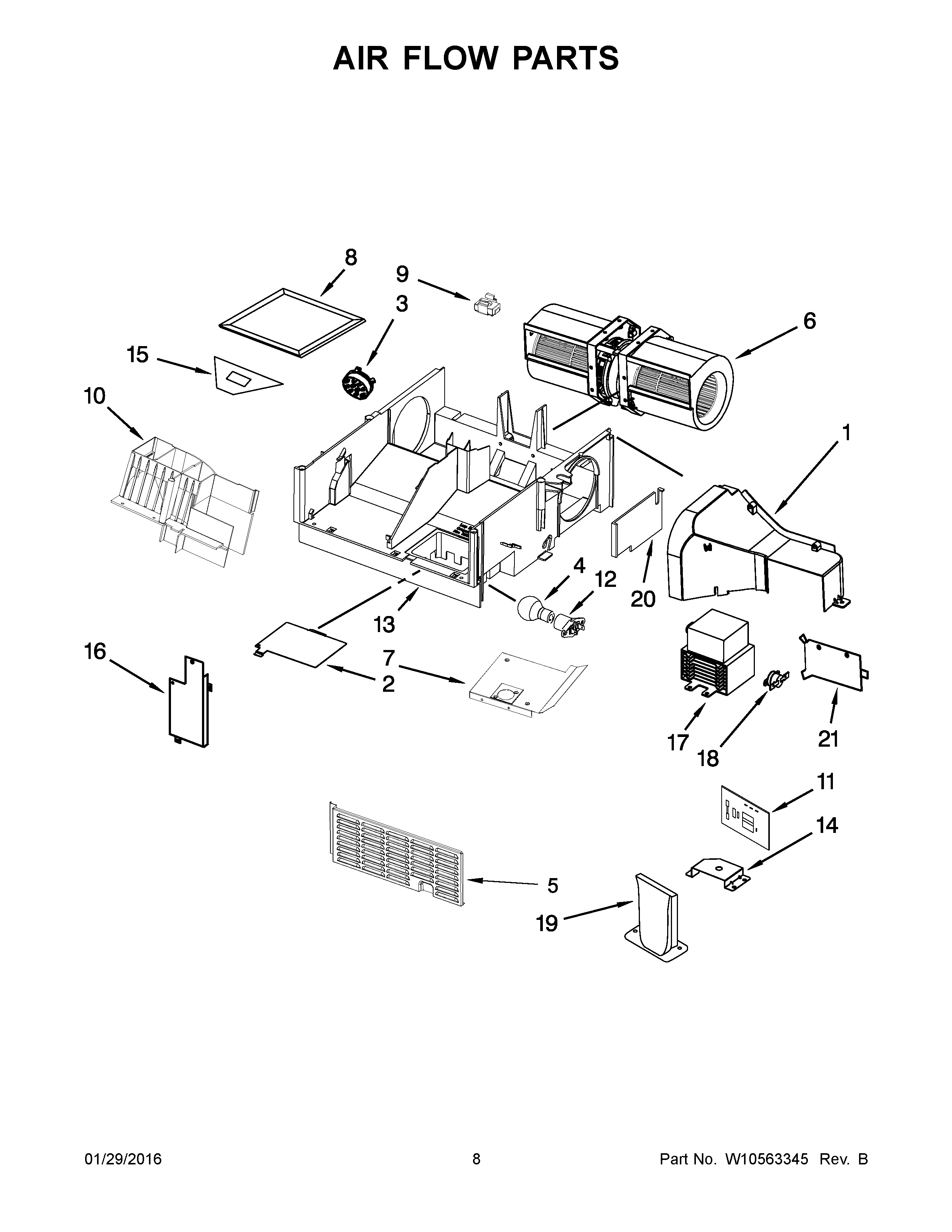

WMH2175XVS4 05 – AIR FLOW PARTS

Products

Position	Product
1	W10471570 Whirlpool Microwave Deflector Assembly
2	8206382 Whirlpool Microwave Light Cover
3	SENSOR, HUMIDITY
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	W10342991 Whirlpool Microwave Side Cover
6	MOTOR, HOOD FAN BLOWER
7	W10247762 Whirlpool Duct Cover
8	8206230A Whirlpool Microwave Charcoal Filter
9	W10596040 Whirlpool Microwave Nut
10	WPW10448768 Whirlpool Microwave Air Guide
11	W10422269 Whirlpool Microwave Filter
12	WPW10210878 Whirlpool Microwave LMP Housing
13	W10448773 Whirlpool Microwave Air Duct
14	W10532064 Whirlpool Microwave Mounting Bracket
15	SOCKET, MOTOR WIRE
16	COVER, CAVITY AIR GUIDE INLET
17	W10754299 Whirlpool Microwave Oven Magnetron
18	W10598693 Whirlpool Microwave Thermostat Fix
19	W11381953 Whirlpool Microwave Plate
20	W10269469 Whirlpool Microwave Duct Cover
21	W10313274 Whirlpool Microwave Mounting Bracket
