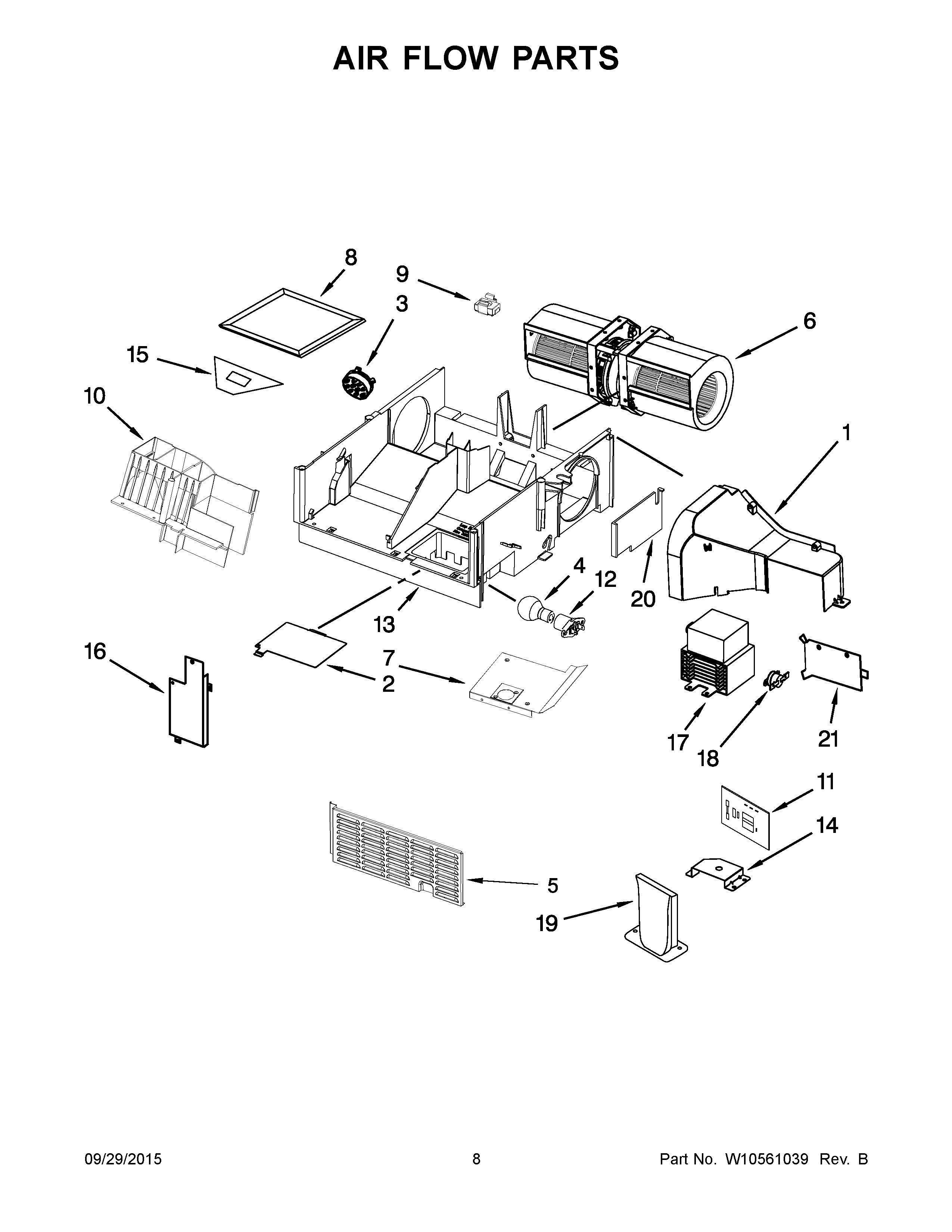

WMH2175XVS6 05 – AIR FLOW PARTS

WMH2175XVS6 05 – AIR FLOW PARTS

Written by

in

WMH2175XVS6 05 – AIR FLOW PARTS

Products

PositionProduct
1W10471570 Whirlpool Microwave Deflector Assembly
28206382 Whirlpool Microwave Light Cover
3SENSOR, HUMIDITY
48206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5W10342991 Whirlpool Microwave Side Cover
6MOTOR, HOOD FAN BLOWER
7W10247762 Whirlpool Duct Cover
88206230A Whirlpool Microwave Charcoal Filter
9W10596040 Whirlpool Microwave Nut
10WPW10448768 Whirlpool Microwave Air Guide
11W10422269 Whirlpool Microwave Filter
12WPW10210878 Whirlpool Microwave LMP Housing
13W10448773 Whirlpool Microwave Air Duct
14W10532064 Whirlpool Microwave Mounting Bracket
15SOCKET, MOTOR WIRE
16COVER, CAVITY AIR GUIDE INLET
17W10754299 Whirlpool Microwave Oven Magnetron
18W10598693 Whirlpool Microwave Thermostat Fix
19W11381953 Whirlpool Microwave Plate
20W10269469 Whirlpool Microwave Duct Cover
21W10313274 Whirlpool Microwave Mounting Bracket
