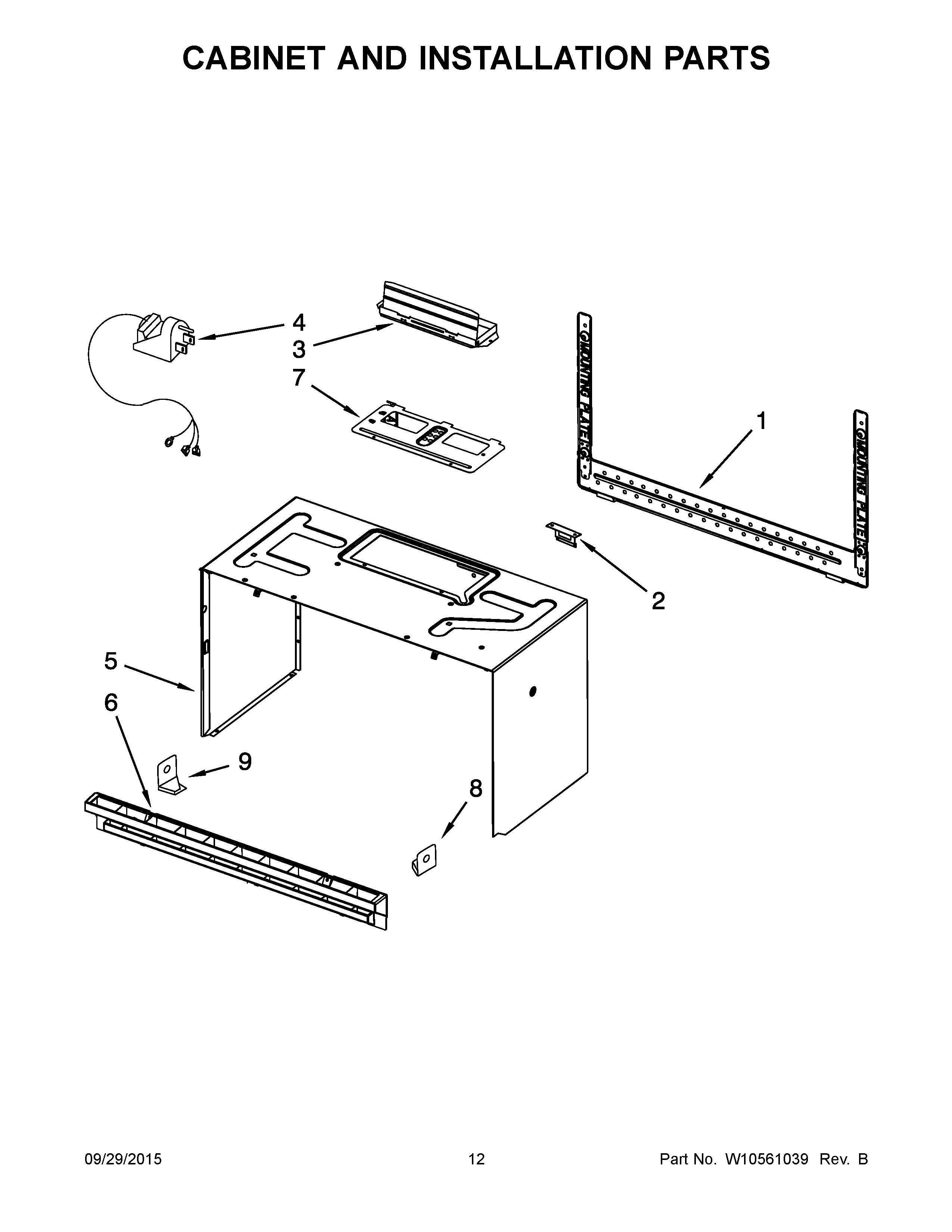

WMH2175XVS6 07 – CABINET AND INSTALLATION PARTS

WMH2175XVS6 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMH2175XVS6 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW10539842 Whirlpool Microwave Harness Wire
NIW10539841 Whirlpool Microwave Wire Harness
NIW10470168 Whirlpool Microwave Wire Harness
NI8205948 Whirlpool Microwave Mount
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIW10190018 Whirlpool Microwave Template
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5WPW10462001 Whirlpool Microwave Cab Wrapper
6GRILLE, VENT (STAINLESS)
7COVER, HOOD FAN MOTOR
8W10810989 Whirlpool Microwave Mounting Bracket
9W10830163 Whirlpool Microwave Mounting Bracket
