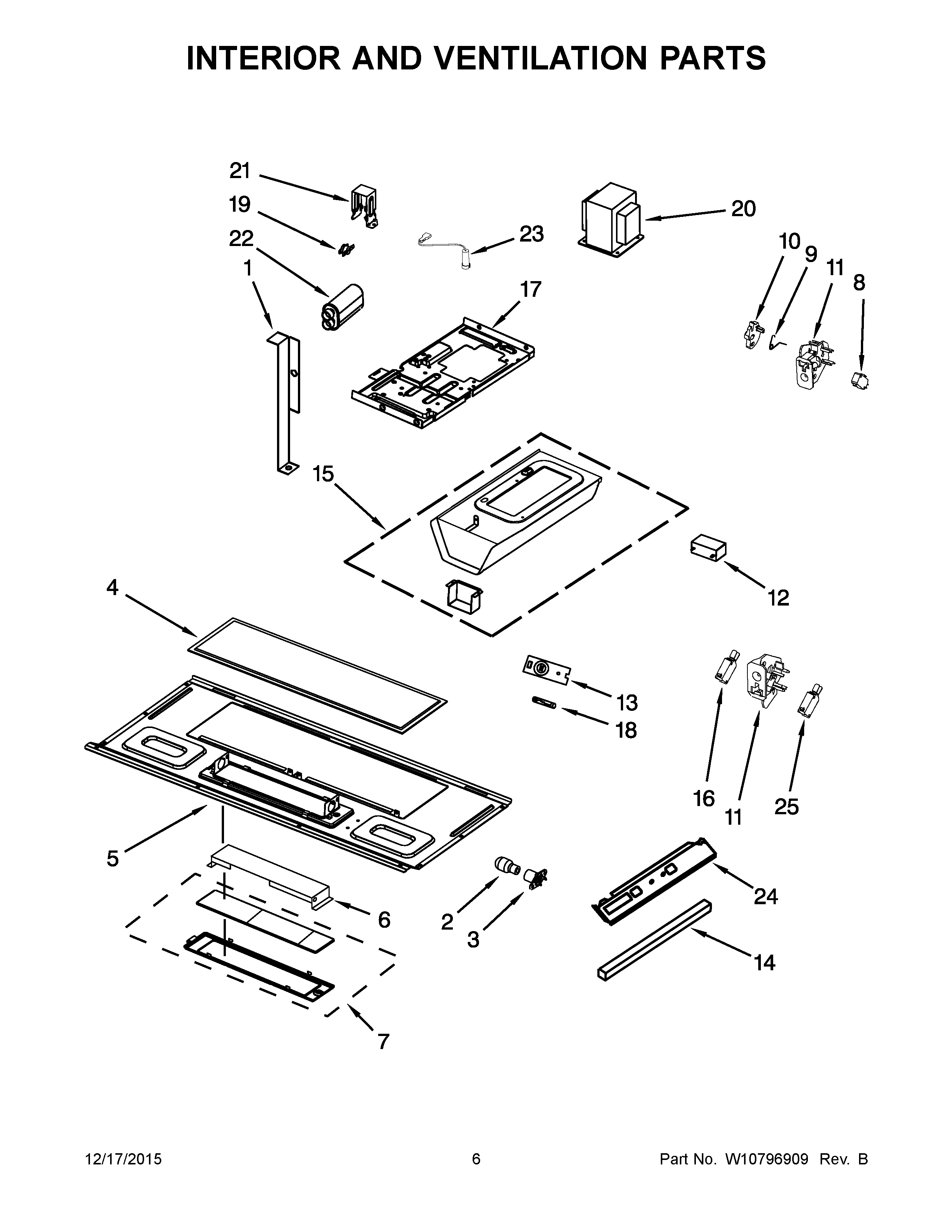

WMH31017AB3 04 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T12:41:49+00:00WMH31017AB3 04 – INTERIOR AND VENTILATION PARTS ProductsPositionProduct1W10313275 Whirlpool Microwave Support Bracket28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb3W10210871 Whirlpool Microwave Lamp Housing4W10208631A Whirlpool Microwave Grease Filter5W10245196 Whirlpool Microwave Base6W10250586 Whirlpool Microwave Reflector7COVR-LIGHT8W10269460 Whirlpool Microwave Door Switch9W10156812 Whirlpool Spring10W10562613 Whirlpool Microwave Interlock Cam Assembly11WP8206419 Whirlpool Microwave Top Interlock Support11AWPW10156813 Whirlpool Microwave Bottom Interlock Support12W11405832 Whirlpool Microwave Capacitor13W10163422 Whirlpool Microwave Thermistor14W11523261 Whirlpool Microwave Cushion15W10448770 Whirlpool Side Cover16W10727360 Whirlpool Microwave Door Switch17W10269456 Whirlpool Microwave Base18FUSE-THRML19W10269232 Whirlpool Microwave Thermostat Fix20W10836753 Whirlpool Microwave Transformer21W10532063 Whirlpool Microwave Bracket22CAPACTR-MG23W11256462 Whirlpool Microwave Diode24W10476124 Whirlpool Microwave Base25W10269458 Whirlpool Microwave Door Switch
