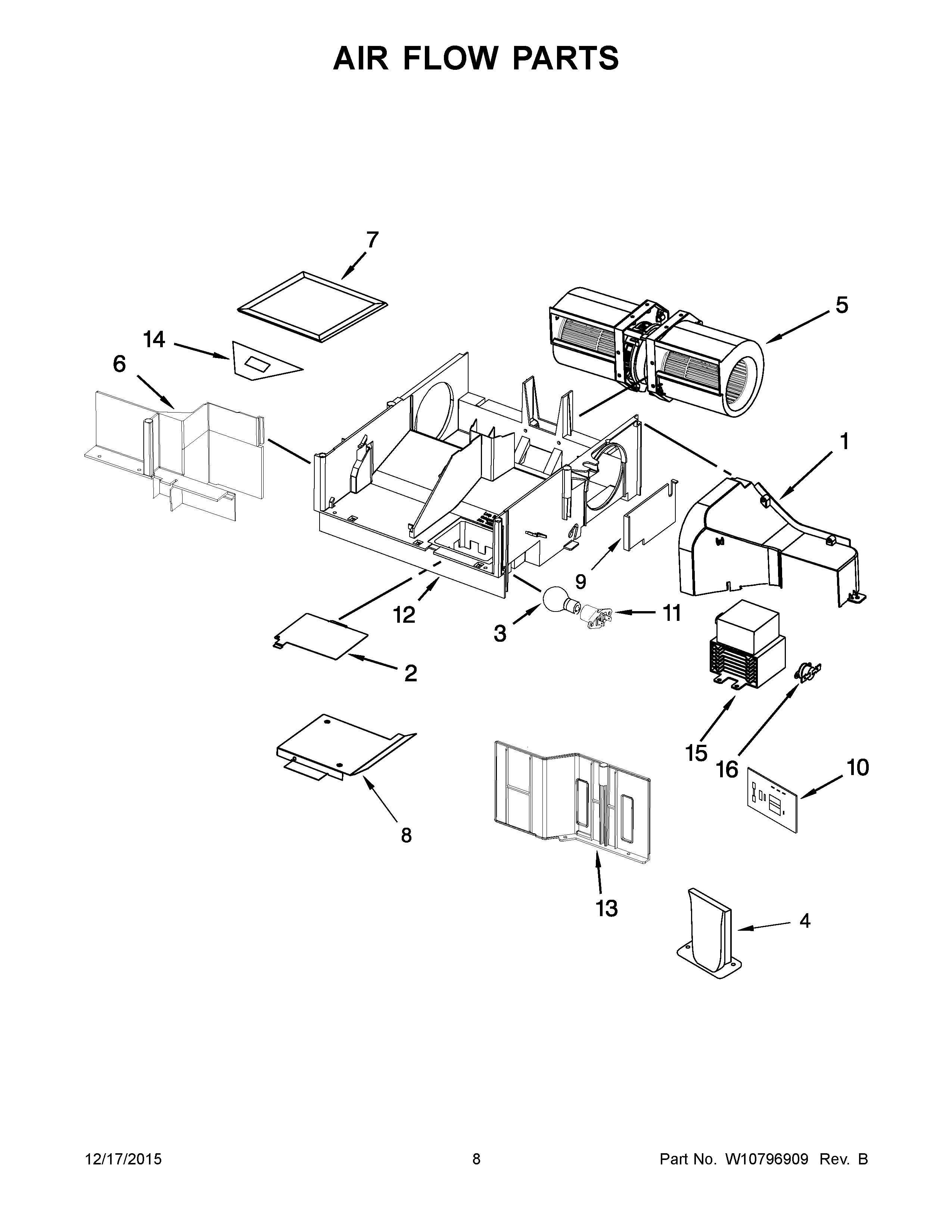

WMH31017AD3 05 – AIR FLOW PARTS

Products

Position	Product
1	W10471570 Whirlpool Microwave Deflector Assembly
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	W11381953 Whirlpool Microwave Plate
5	W11441128 Whirlpool Microwave Fan Motor
6	W10448769 Whirlpool Air Guide
7	8206230A Whirlpool Microwave Charcoal Filter
8	W10138797 Whirlpool Microwave Duct Cover
9	W11293488 Whirlpool Microwave Air Duct
10	W10422269 Whirlpool Microwave Filter
11	WPW10210878 Whirlpool Microwave LMP Housing
12	W10448773 Whirlpool Microwave Air Duct
13	W10342991 Whirlpool Microwave Side Cover
14	SOCKET, MOTOR WIRE
15	WPW10693025 Whirlpool Microwave Magnetron
16	W10491433 Whirlpool Microwave Thermostat Fix
