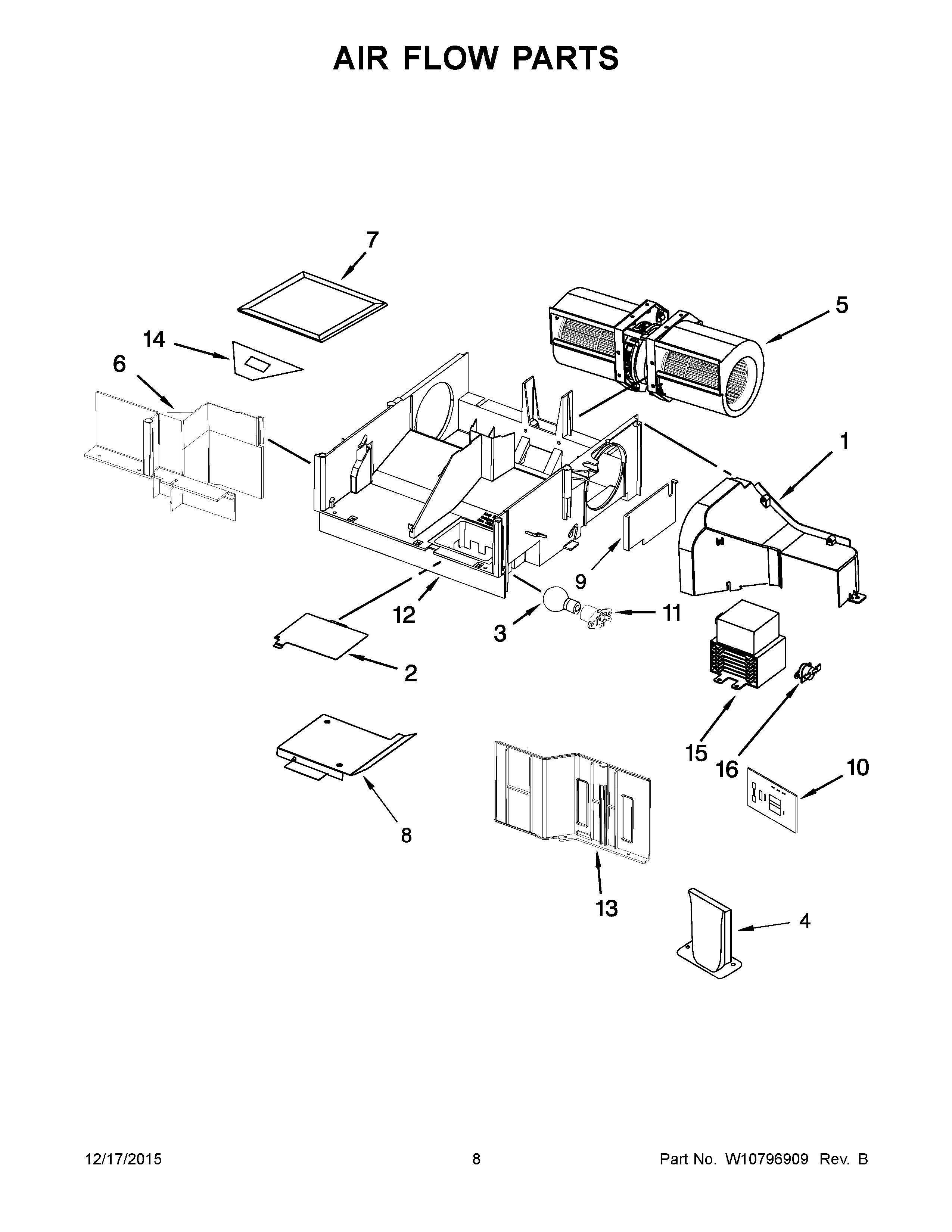

WMH31017AS3 05 – AIR FLOW PARTS

WMH31017AS3 05 – AIR FLOW PARTS

Written by

in

WMH31017AS3 05 – AIR FLOW PARTS

Products

PositionProduct
1W10471570 Whirlpool Microwave Deflector Assembly
28206382 Whirlpool Microwave Light Cover
38206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4W11381953 Whirlpool Microwave Plate
5W11441128 Whirlpool Microwave Fan Motor
6W10448769 Whirlpool Air Guide
78206230A Whirlpool Microwave Charcoal Filter
8W10138797 Whirlpool Microwave Duct Cover
9W11293488 Whirlpool Microwave Air Duct
10W10422269 Whirlpool Microwave Filter
11WPW10210878 Whirlpool Microwave LMP Housing
12W10448773 Whirlpool Microwave Air Duct
13W10342991 Whirlpool Microwave Side Cover
14SOCKET, MOTOR WIRE
15WPW10693025 Whirlpool Microwave Magnetron
16W10491433 Whirlpool Microwave Thermostat Fix
