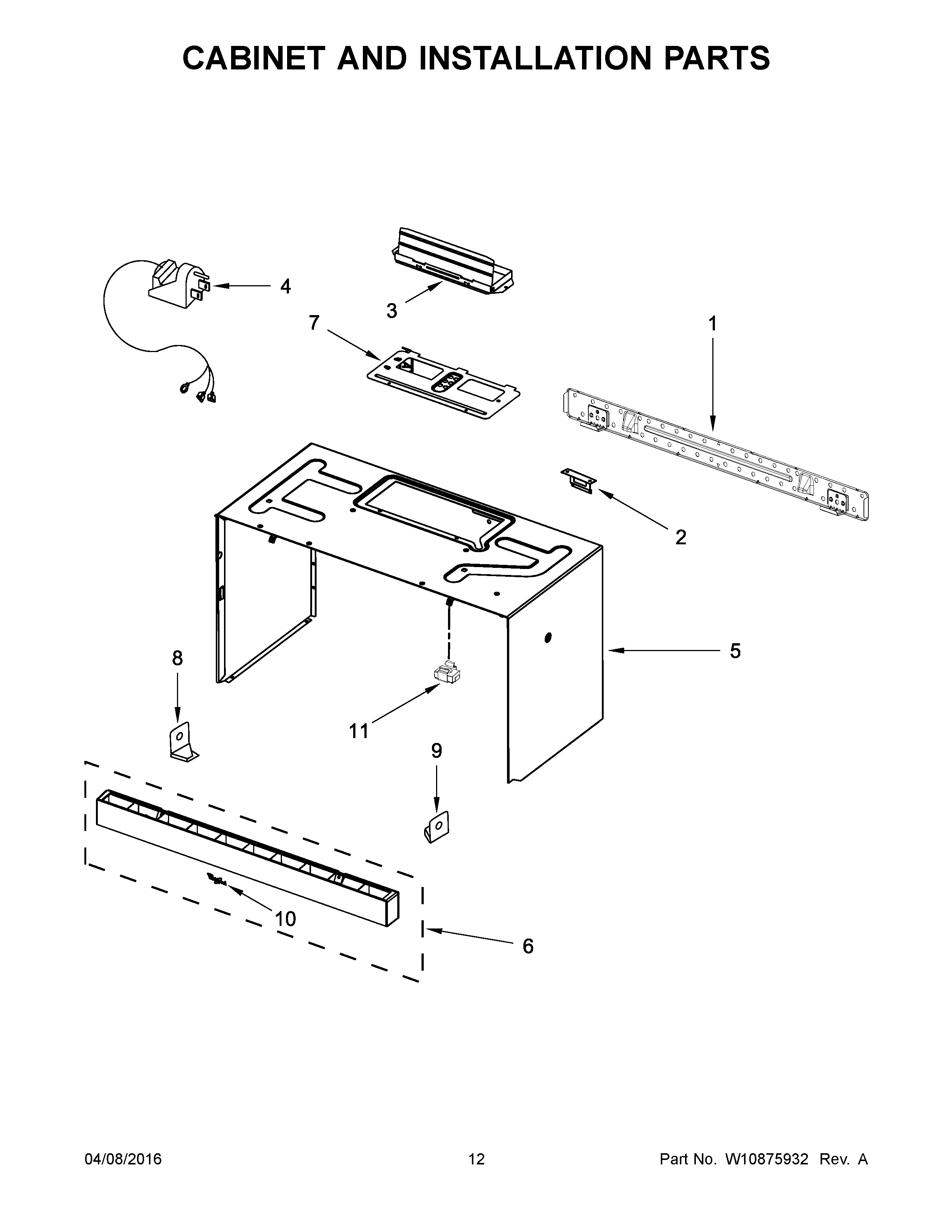

WMH31017AS4 07 – CABINET AND INSTALLATION PARTS

WMH31017AS4 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMH31017AS4 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW10498567 Whirlpool Microwave Wire Harness
NIW10872453 Whirlpool Microwave Wire Harness
NIW10821385 Whirlpool Hardware Kit
NIW10539840 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5W10883282 Whirlpool Microwave Cover Assembly
5AW10883284 Whirlpool Microwave Cabinet Wrapper
6CW10571504 Whirlpool Microwave Vent Grill
6W10468664 Whirlpool Microwave Vent Grill
6AWPW10468666 Whirlpool Microwave Vent Grille
6BW10468665 Whirlpool Microwave Vent Grill
7COVER, HOOD FAN MOTOR
8AW11026306 Whirlpool Microwave Mounting Bracket
8W10830163 Whirlpool Microwave Mounting Bracket
9W10810989 Whirlpool Microwave Mounting Bracket
9AW10703282 Whirlpool Microwave Mounting Bracket
10AW11178521 Whirlpool Dishwasher Nameplate
11W10596040 Whirlpool Microwave Nut
