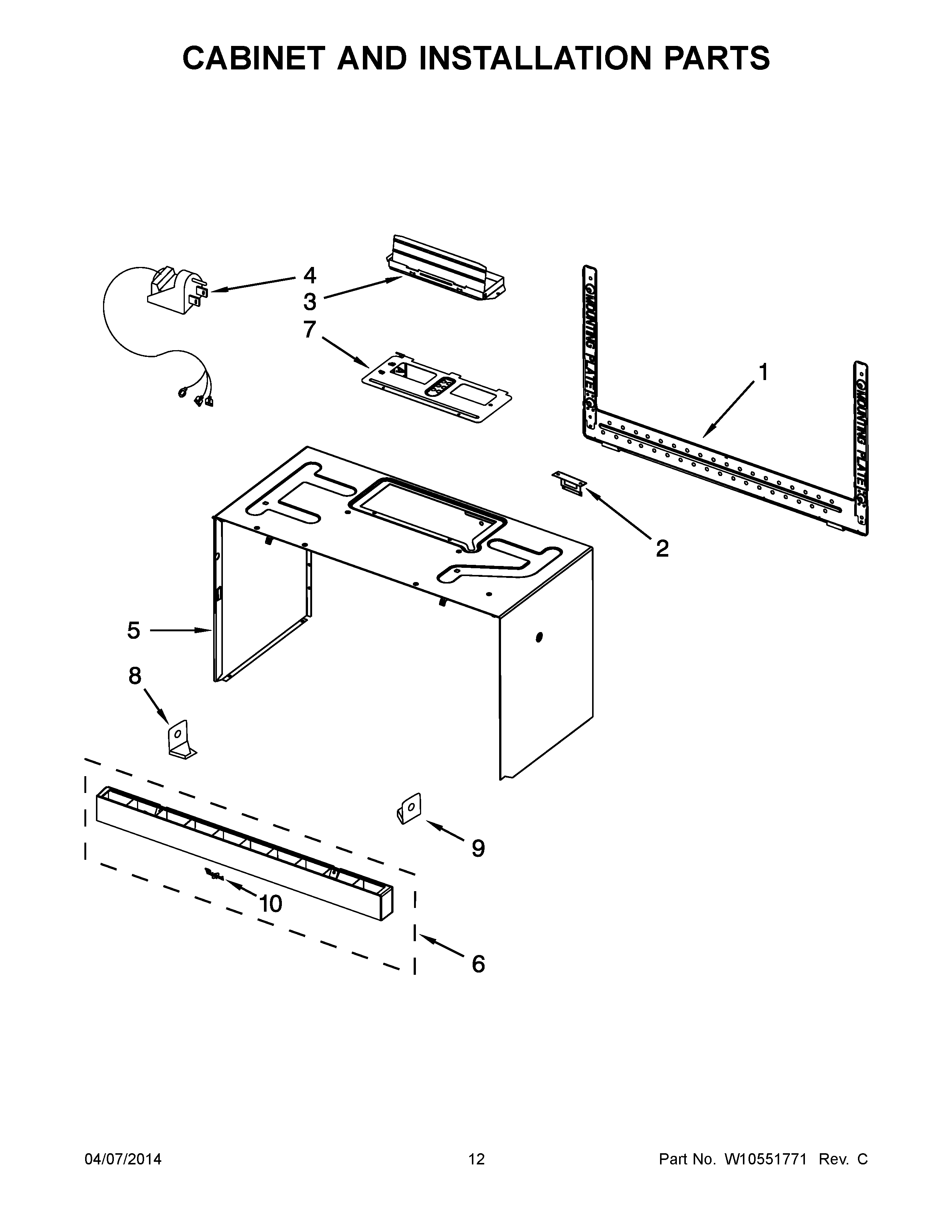

WMH31017AW1 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	W10543253 Whirlpool Microwave Wire Harness
NI	W10498567 Whirlpool Microwave Wire Harness
NI	W10450407 Whirlpool Microwave Wire Harness
NI	W10821385 Whirlpool Hardware Kit
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10190018 Whirlpool Microwave Template
1	W11025649 Whirlpool Microwave Mounting Plate
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	W10708076 Whirlpool Microwave Power Cord
5	WPW10462003 Whirlpool Oven Microwave Cabinet Wrapper
5	WPW10462001 Whirlpool Microwave Cab Wrapper
6	WPW10468666 Whirlpool Microwave Vent Grille
6	W10468665 Whirlpool Microwave Vent Grill
6	WPW10468667 Whirlpool Microwave Vent Grille
6	W10468664 Whirlpool Microwave Vent Grill
7	COVER, HOOD FAN MOTOR
8	W11026306 Whirlpool Microwave Mounting Bracket
8	W10830163 Whirlpool Microwave Mounting Bracket
9	W10810989 Whirlpool Microwave Mounting Bracket
9	W10703282 Whirlpool Microwave Mounting Bracket
10	W11178521 Whirlpool Dishwasher Nameplate
