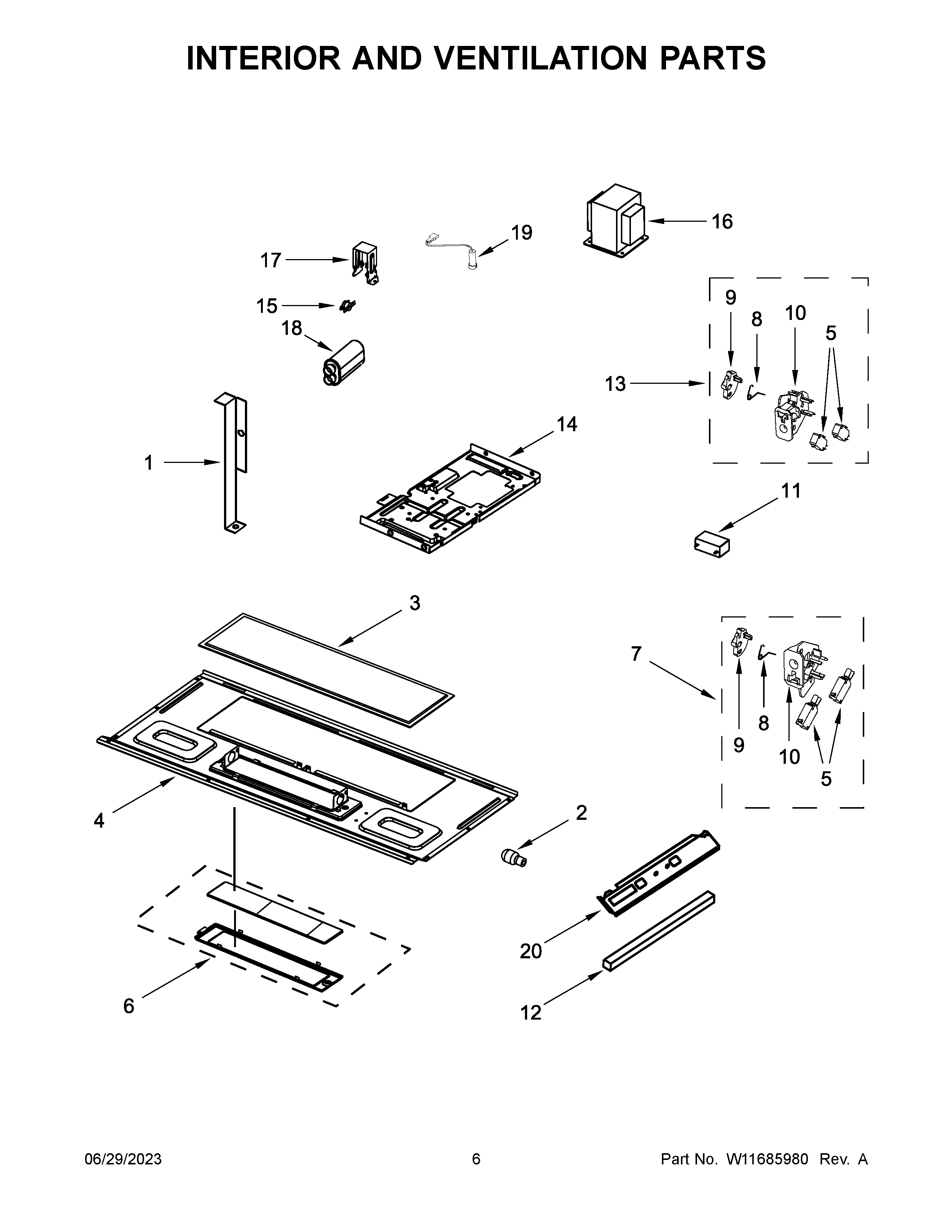

WMH31017HB08 04 – INTERIOR AND VENTILATION PARTS

WMH31017HB08 04 – INTERIOR AND VENTILATION PARTS

Written by

in

WMH31017HB08 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10313275 Whirlpool Microwave Support Bracket
2W11520384 Whirlpool Light Bulb
3W10208631A Whirlpool Microwave Grease Filter
4PLATE, BOTTOM
5CABINET (NOT A SERVICEABLE PART)
6COVR-LIGHT
7LOWER INTERLOCK ASSY
8W10156812 Whirlpool Spring
9W10562613 Whirlpool Microwave Interlock Cam Assembly
10AWPW10156813 Whirlpool Microwave Bottom Interlock Support
10WP8206419 Whirlpool Microwave Top Interlock Support
11W11405832 Whirlpool Microwave Capacitor
12SEAL, COOLING
13W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN187
14W11520831 Whirlpool Base
15W11574181 Whirlpool Thermostat Fix
16W11545872 Whirlpool Microwave Transformer
17W10532063 Whirlpool Microwave Bracket
18CAPACTR-MG
19W11256462 Whirlpool Microwave Diode
20SUPPORT, NTC
