WMH31017HS12 05 – AIR FLOW PARTS

WMH31017HS12 05 – AIR FLOW PARTS

Written by

in

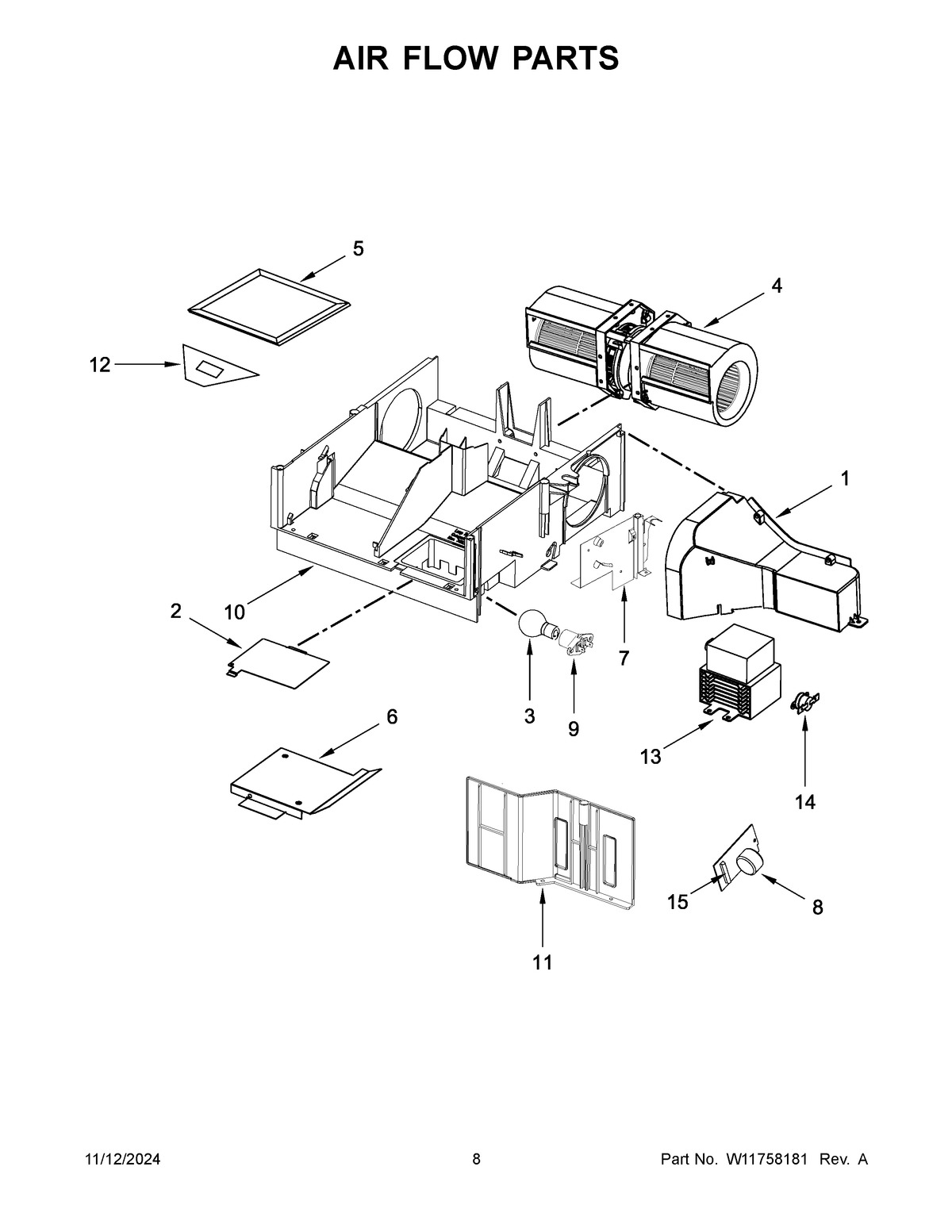

WMH31017HS12 05 – AIR FLOW PARTS

Products

PositionProduct
1W10471570 Whirlpool Microwave Deflector Assembly
28206382 Whirlpool Microwave Light Cover
3W11574182 Whirlpool Lamp Assembly
4MOTOR, HOOD FAN
5W10892387 Whirlpool Microwave Charcoal Filter
6W10138797 Whirlpool Microwave Duct Cover
7W11293488 Whirlpool Microwave Air Duct
8W10422269 Whirlpool Microwave Filter
9WPW10210878 Whirlpool Microwave LMP Housing
10W10828030 Whirlpool Microwave Air Duct
11W11520832 Whirlpool Side Cover
12SOCKET, MOTOR WIRE
13MAGNETRON
14W10832024 Whirlpool Microwave Thermostat Fix
15FUSE-THRML
