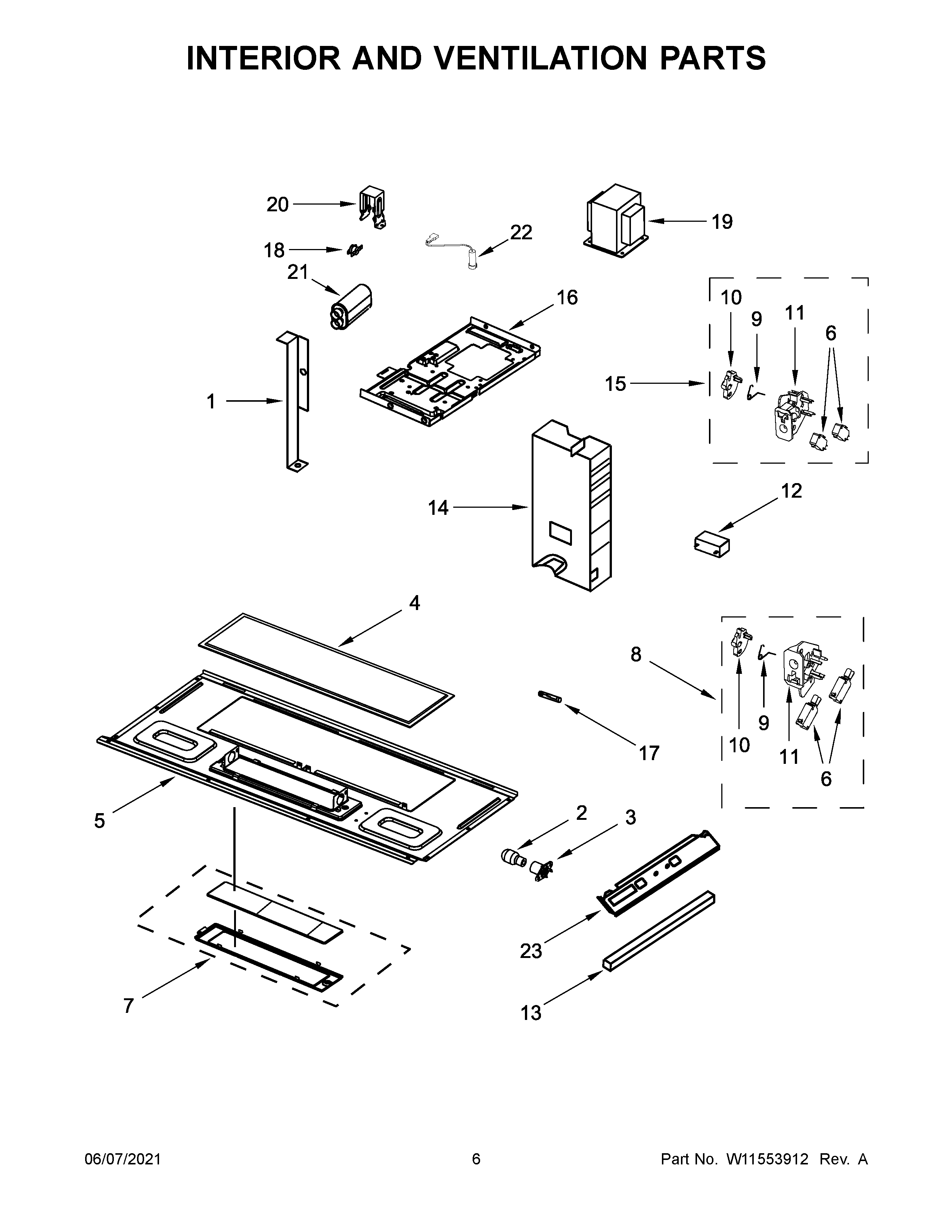

WMH31017HS7 04 – INTERIOR AND VENTILATION PARTS

WMH31017HS7 04 – INTERIOR AND VENTILATION PARTS

Written by

in

WMH31017HS7 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10313275 Whirlpool Microwave Support Bracket
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10208631A Whirlpool Microwave Grease Filter
5W10245196 Whirlpool Microwave Base
6CABINET (NOT A SERVICEABLE PART)
7COVR-LIGHT
8LOWER INTERLOCK ASSY
9W10156812 Whirlpool Spring
10W10562613 Whirlpool Microwave Interlock Cam Assembly
11WP8206419 Whirlpool Microwave Top Interlock Support
11AWPW10156813 Whirlpool Microwave Bottom Interlock Support
12W11405832 Whirlpool Microwave Capacitor
13W10571179 Whirlpool Cushion
14W11302941 Whirlpool Microwave Side Cover
15W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN187
16W10827115 Whirlpool Microwave Base
17FUSE-THRML
18W10269232 Whirlpool Microwave Thermostat Fix
19W11545872 Whirlpool Microwave Transformer
20W11265233 Whirlpool Cap Carrier Bracket
21WPW10574736 Whirlpool Microwave MG Capacitor
22W11256462 Whirlpool Microwave Diode
23W10904020 Whirlpool Base Assembly
