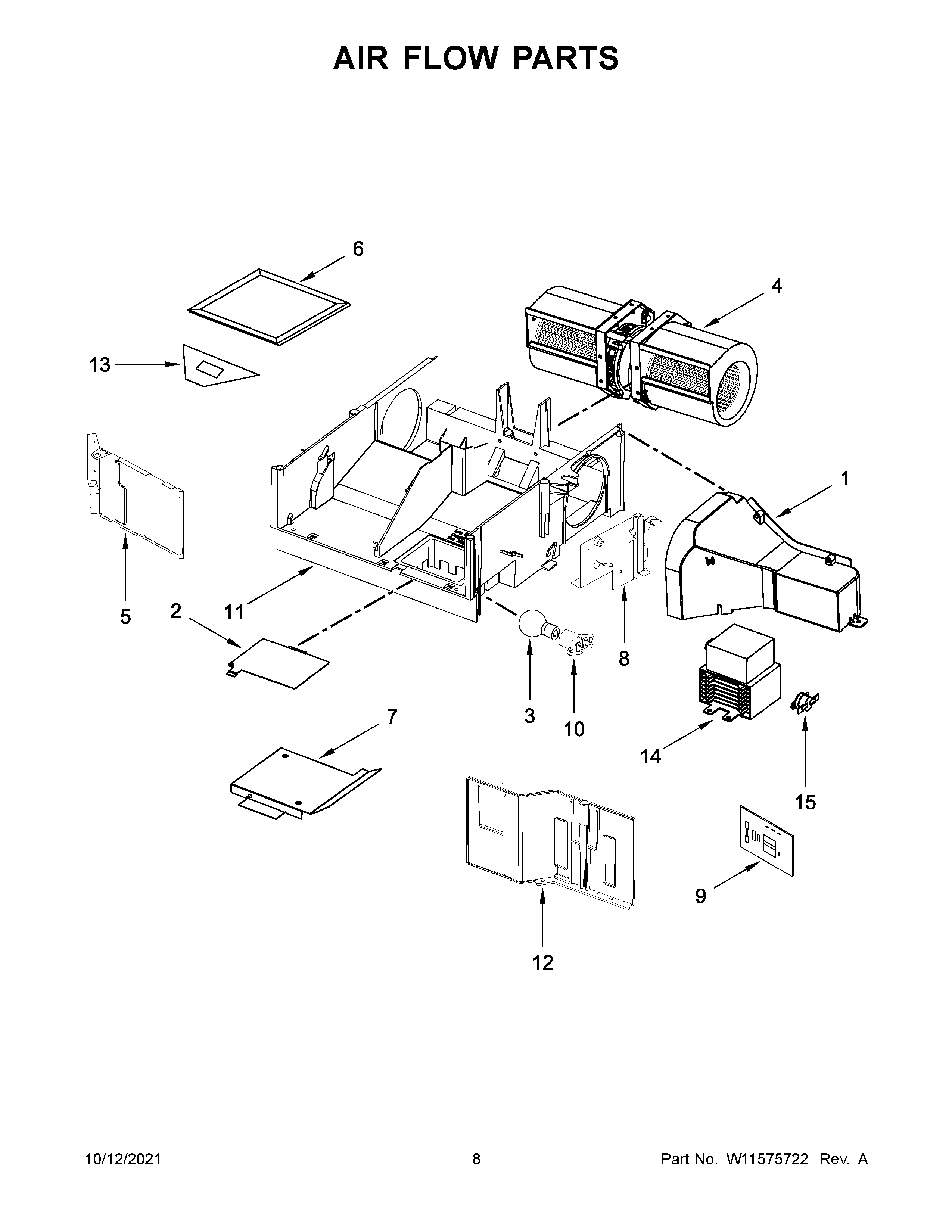

WMH31017HS9 05 – AIR FLOW PARTS

WMH31017HS9 05 – AIR FLOW PARTS

Written by

in

WMH31017HS9 05 – AIR FLOW PARTS

Products

PositionProduct
1W10471570 Whirlpool Microwave Deflector Assembly
28206382 Whirlpool Microwave Light Cover
38206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4W11441128 Whirlpool Microwave Fan Motor
5W10827148 Whirlpool Air Guide
6W10892387 Whirlpool Microwave Charcoal Filter
7W10138797 Whirlpool Microwave Duct Cover
8W11293488 Whirlpool Microwave Air Duct
9W10422269 Whirlpool Microwave Filter
10WPW10210878 Whirlpool Microwave LMP Housing
11W10828030 Whirlpool Microwave Air Duct
12W11520832 Whirlpool Side Cover
13W10810142 Whirlpool Relief Strain
14W11391712 Whirlpool Microwave Magnetron
15W10832024 Whirlpool Microwave Thermostat Fix
