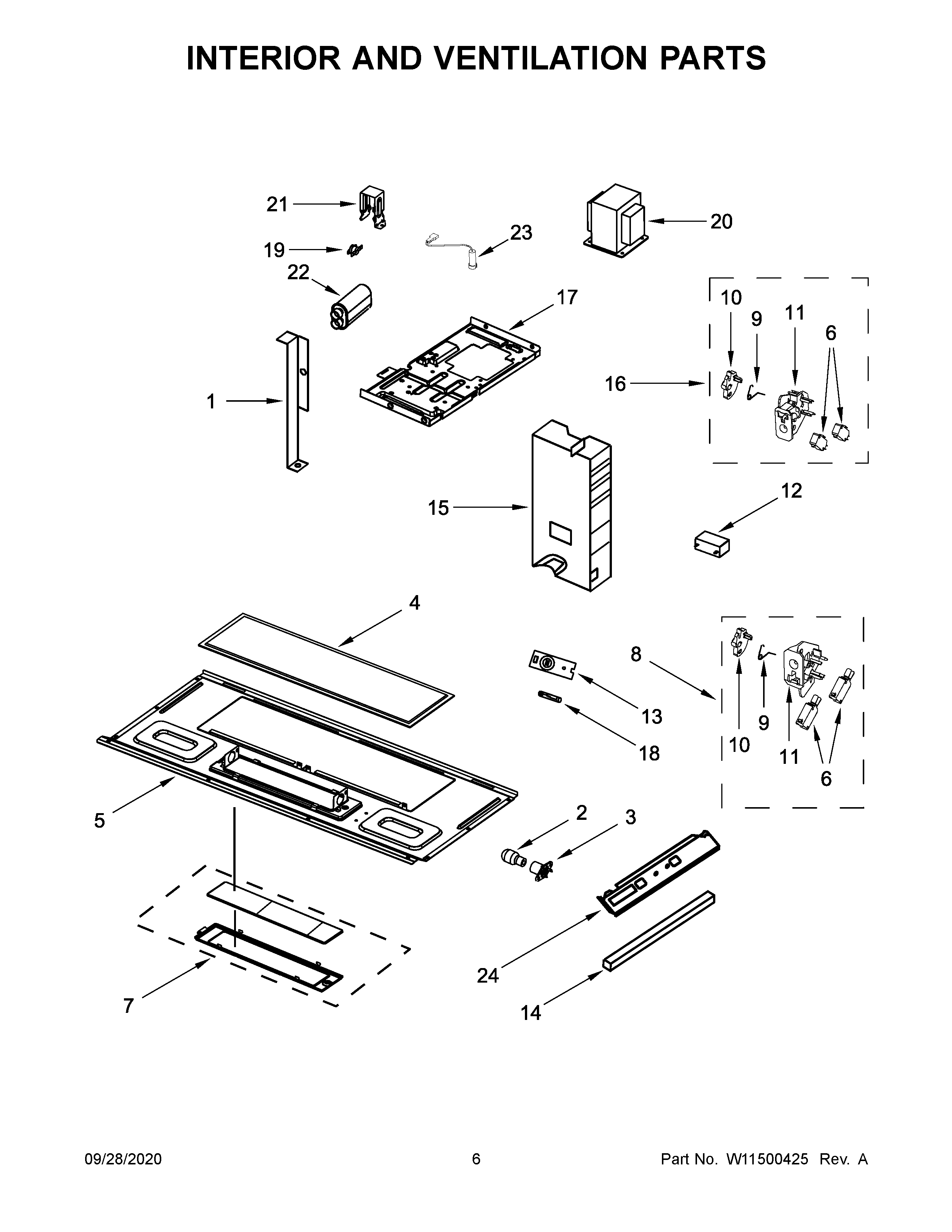

WMH31017HW6 04 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T12:43:10+00:00WMH31017HW6 04 – INTERIOR AND VENTILATION PARTS ProductsPositionProduct1W10313275 Whirlpool Microwave Support Bracket28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb3W10210871 Whirlpool Microwave Lamp Housing4W10208631A Whirlpool Microwave Grease Filter5W10245196 Whirlpool Microwave Base6CABINET (NOT A SERVICEABLE PART)7COVR-LIGHT8LOWER INTERLOCK ASSY9W10156812 Whirlpool Spring10W10562613 Whirlpool Microwave Interlock Cam Assembly11WP8206419 Whirlpool Microwave Top Interlock Support11AWPW10156813 Whirlpool Microwave Bottom Interlock Support12W11405830 Whirlpool Capacitor13W10163422 Whirlpool Microwave Thermistor14W10571179 Whirlpool Cushion15W11302941 Whirlpool Microwave Side Cover16W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN18717W10827115 Whirlpool Microwave Base18FUSE-THRML19W10269232 Whirlpool Microwave Thermostat Fix20W10836753 Whirlpool Microwave Transformer21W11265233 Whirlpool Cap Carrier Bracket22CAPACTR-MG23W11256462 Whirlpool Microwave Diode24W10904020 Whirlpool Base Assembly
