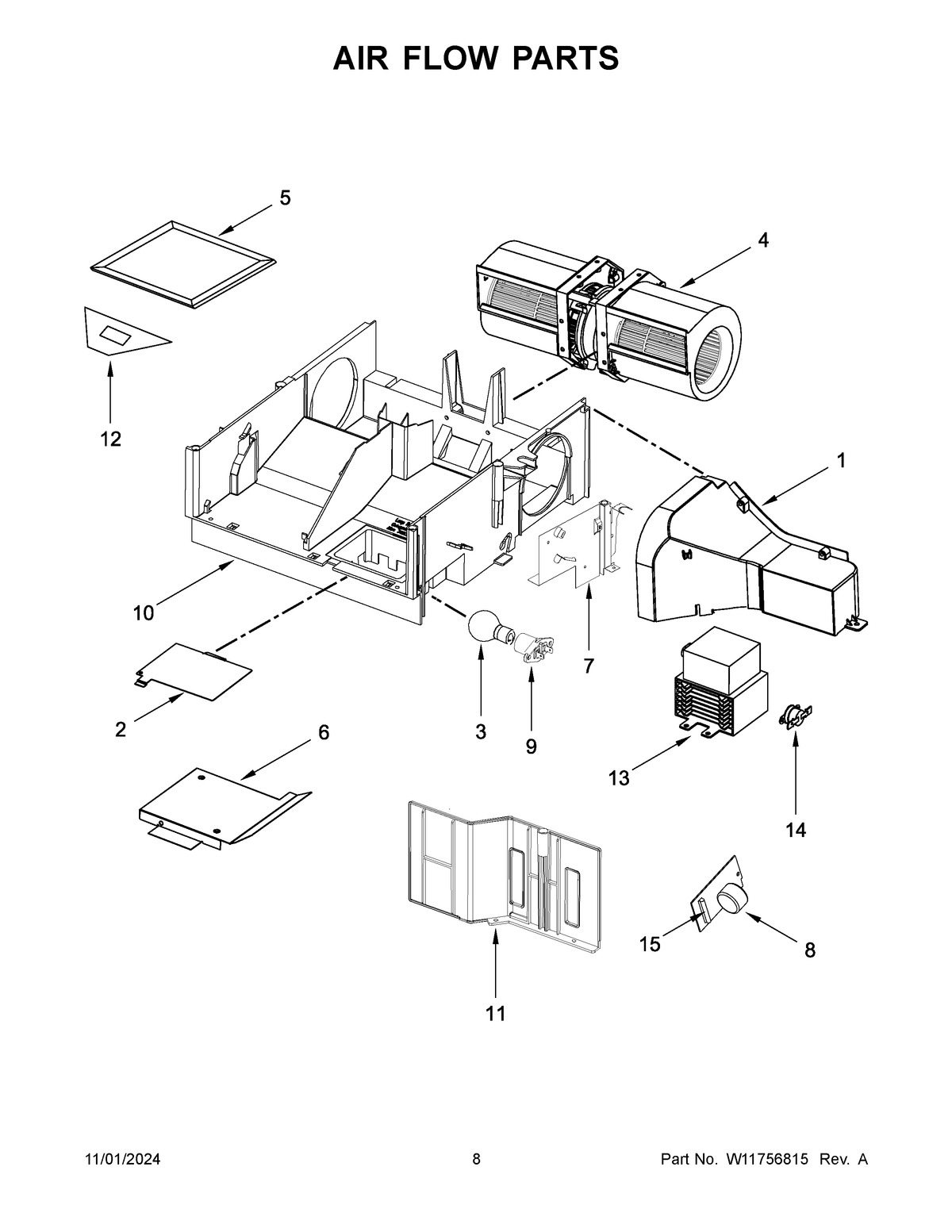

WMH31017HZ10 05 – AIR FLOW PARTS

Products

Position	Product
1	W10471570 Whirlpool Microwave Deflector Assembly
2	8206382 Whirlpool Microwave Light Cover
3	W11574182 Whirlpool Lamp Assembly
4	W11441128 Whirlpool Microwave Fan Motor
5	W10892387 Whirlpool Microwave Charcoal Filter
6	W10138797 Whirlpool Microwave Duct Cover
7	W11293488 Whirlpool Microwave Air Duct
8	W10422269 Whirlpool Microwave Filter
9	WPW10210878 Whirlpool Microwave LMP Housing
10	W10828030 Whirlpool Microwave Air Duct
11	W11520832 Whirlpool Side Cover
12	W10810142 Whirlpool Relief Strain
13	MAGNETRON
14	W10832024 Whirlpool Microwave Thermostat Fix
15	FUSE-THRML
