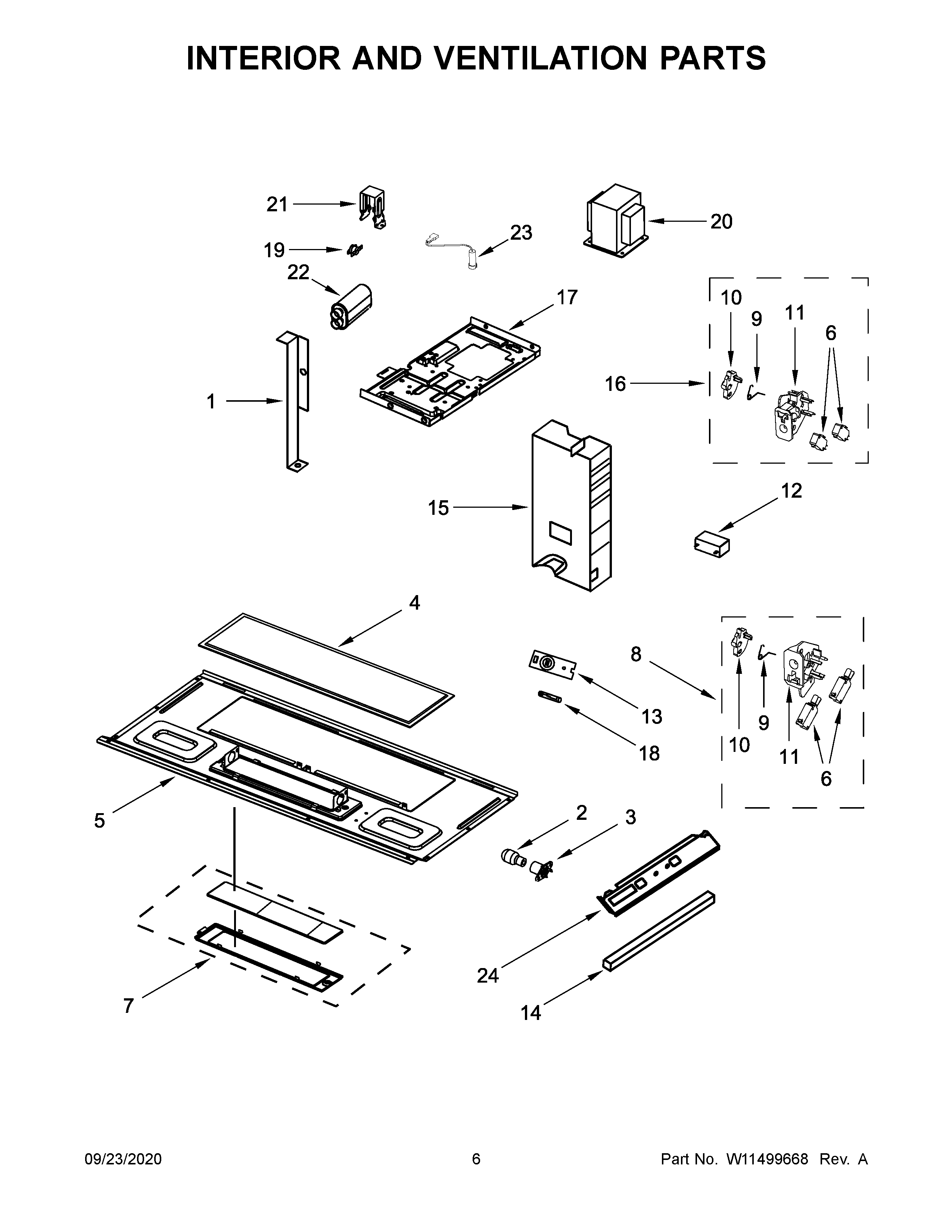

WMH31017HZ5 04 – INTERIOR AND VENTILATION PARTS

WMH31017HZ5 04 – INTERIOR AND VENTILATION PARTS

Written by

in

WMH31017HZ5 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10313275 Whirlpool Microwave Support Bracket
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10208631A Whirlpool Microwave Grease Filter
5W10245196 Whirlpool Microwave Base
6CABINET (NOT A SERVICEABLE PART)
7COVR-LIGHT
8LOWER INTERLOCK ASSY
9W10156812 Whirlpool Spring
10W10562613 Whirlpool Microwave Interlock Cam Assembly
11WP8206419 Whirlpool Microwave Top Interlock Support
11AWPW10156813 Whirlpool Microwave Bottom Interlock Support
12W11405830 Whirlpool Capacitor
13W10163422 Whirlpool Microwave Thermistor
14W10571179 Whirlpool Cushion
15W11302941 Whirlpool Microwave Side Cover
16W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN187
17W10827115 Whirlpool Microwave Base
18FUSE-THRML
19W10269232 Whirlpool Microwave Thermostat Fix
20W11493408 Whirlpool Microwave Transformer
21W11265233 Whirlpool Cap Carrier Bracket
22CAPACTR-MG
23W11256462 Whirlpool Microwave Diode
24W10904020 Whirlpool Base Assembly
