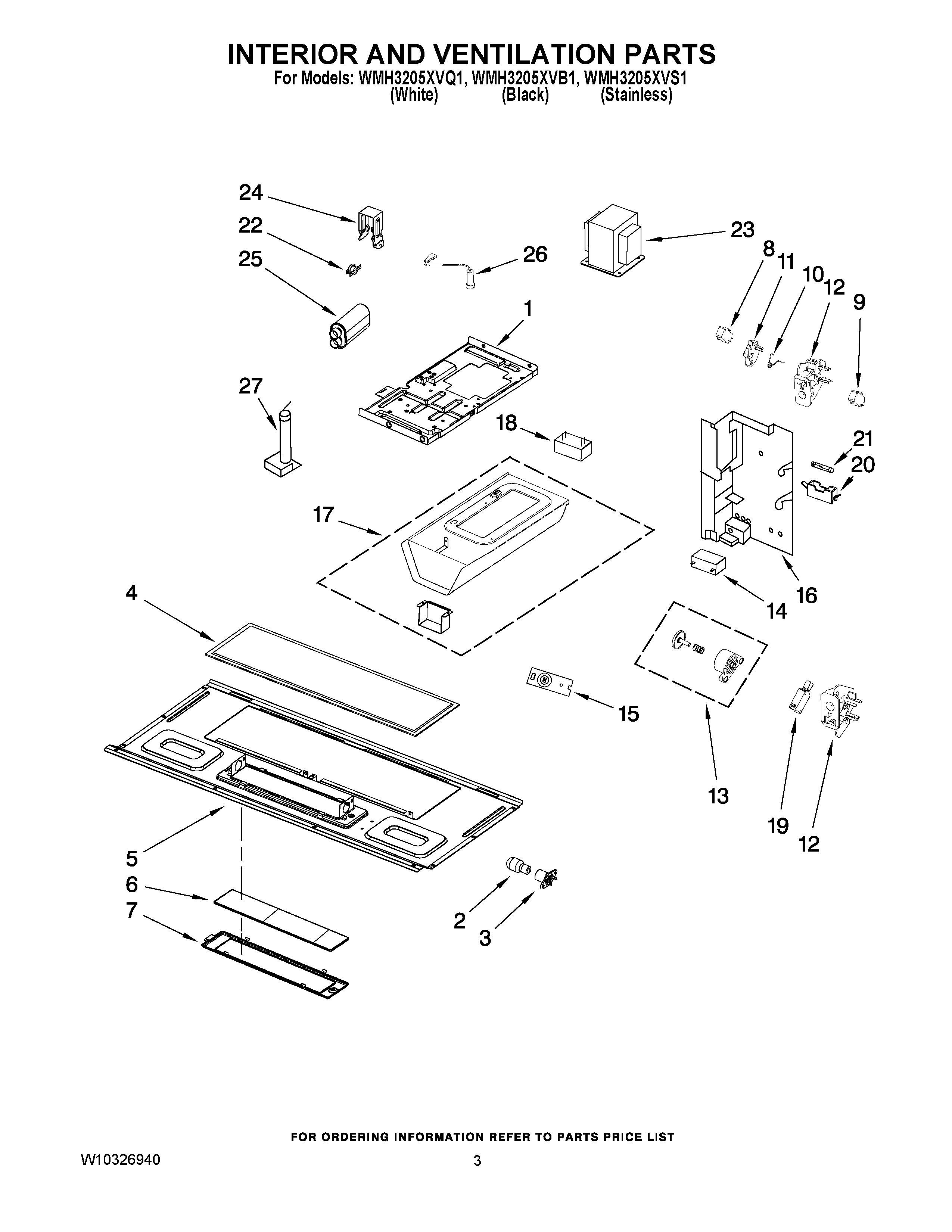

WMH3205XVB1 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Chassis
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10210871 Whirlpool Microwave Lamp Housing
4	W10208631A Whirlpool Microwave Grease Filter
5	W10245196 Whirlpool Microwave Base
6	WPW10210875 Whirlpool Microwave Lamp Glass Cover
7	HOLDER, GLASS
8	W10211972 Whirlpool Microwave Switch
9	W10269458 Whirlpool Microwave Door Switch
10	W10156812 Whirlpool Spring
11	W10562613 Whirlpool Microwave Interlock Cam Assembly
12	WPW10156813 Whirlpool Microwave Bottom Interlock Support
12	WP8206419 Whirlpool Microwave Top Interlock Support
13	W10197758 Whirlpool Microwave Piston
14	W11405831 Whirlpool Microwave Capacitor
15	W10163422 Whirlpool Microwave Thermistor
16	Plate, Side
17	W10310720 Whirlpool Microwave Base
18	W10245190 Whirlpool Microwave Resistor
19	W10211974 Whirlpool Microwave Door Interlock Micro Switch
20	W10245194 Whirlpool Microwave Fuse Block
21	FUSE-THRML
22	W10864742 Whirlpool Microwave Thermostat Fix
23	Transformer, H.V.
24	W10532063 Whirlpool Microwave Bracket
25	CAPACTR-MG
26	W11256462 Whirlpool Microwave Diode
27	W10245188 Whirlpool Microwave Support Bracket
