WMH32519CW2 04 – INTERIOR AND VENTILATION PARTS

WMH32519CW2 04 – INTERIOR AND VENTILATION PARTS

Written by

in

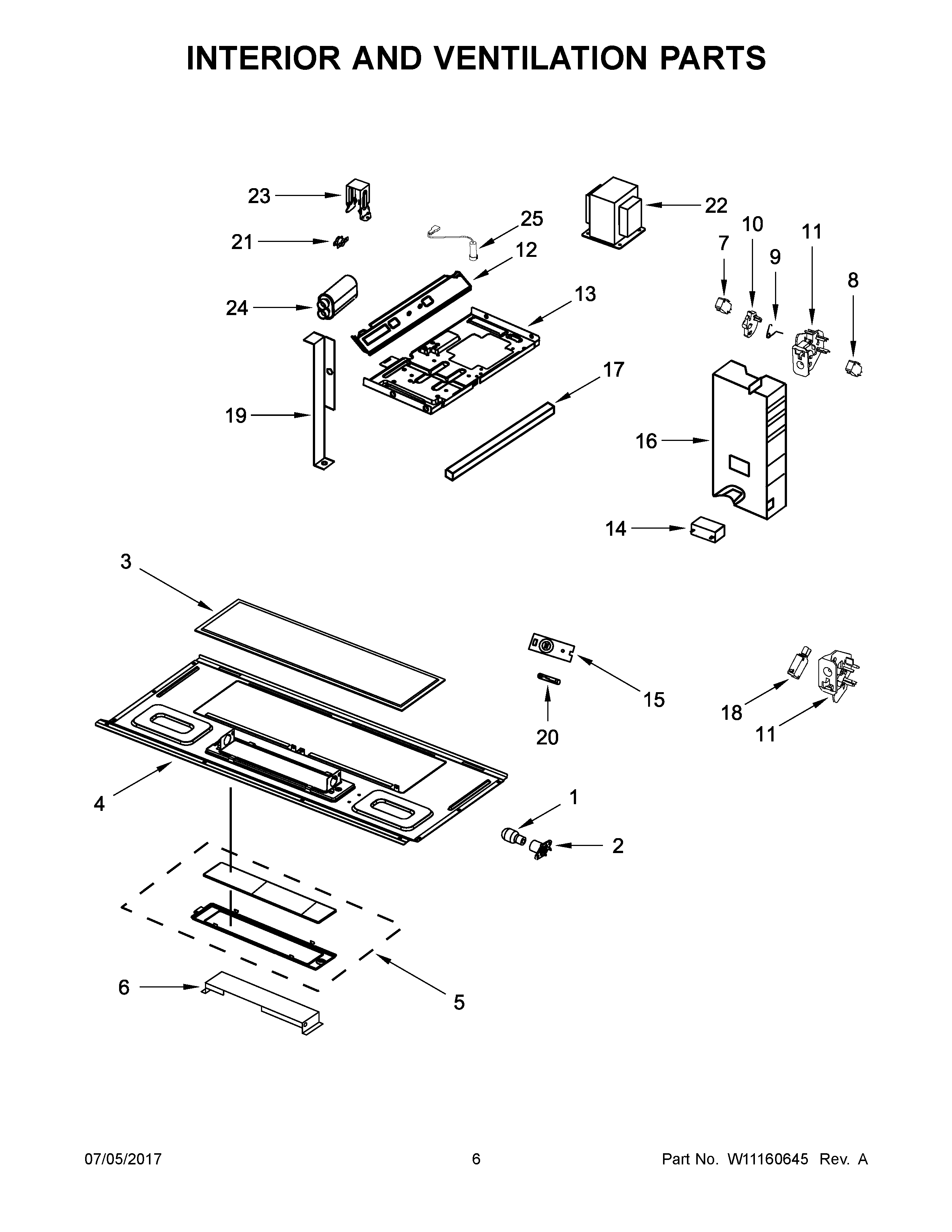

WMH32519CW2 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
18206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
2W10210871 Whirlpool Microwave Lamp Housing
3W10208631A Whirlpool Microwave Grease Filter
4W10245196 Whirlpool Microwave Base
5COVR-LIGHT
6W10250586 Whirlpool Microwave Reflector
7W10727360 Whirlpool Microwave Door Switch
8W10269458 Whirlpool Microwave Door Switch
9W10156812 Whirlpool Spring
10W10562613 Whirlpool Microwave Interlock Cam Assembly
11WP8206419 Whirlpool Microwave Top Interlock Support
11AWPW10156813 Whirlpool Microwave Bottom Interlock Support
12W10476124 Whirlpool Microwave Base
13W10269456 Whirlpool Microwave Base
14W11405832 Whirlpool Microwave Capacitor
15W10163422 Whirlpool Microwave Thermistor
16W11302941 Whirlpool Microwave Side Cover
17W11523261 Whirlpool Microwave Cushion
18W10269460 Whirlpool Microwave Door Switch
19W10313275 Whirlpool Microwave Support Bracket
20FUSE-THRML
21W10269232 Whirlpool Microwave Thermostat Fix
22W10836753 Whirlpool Microwave Transformer
23W10532063 Whirlpool Microwave Bracket
24CAPACTR-MG
25W11256462 Whirlpool Microwave Diode
