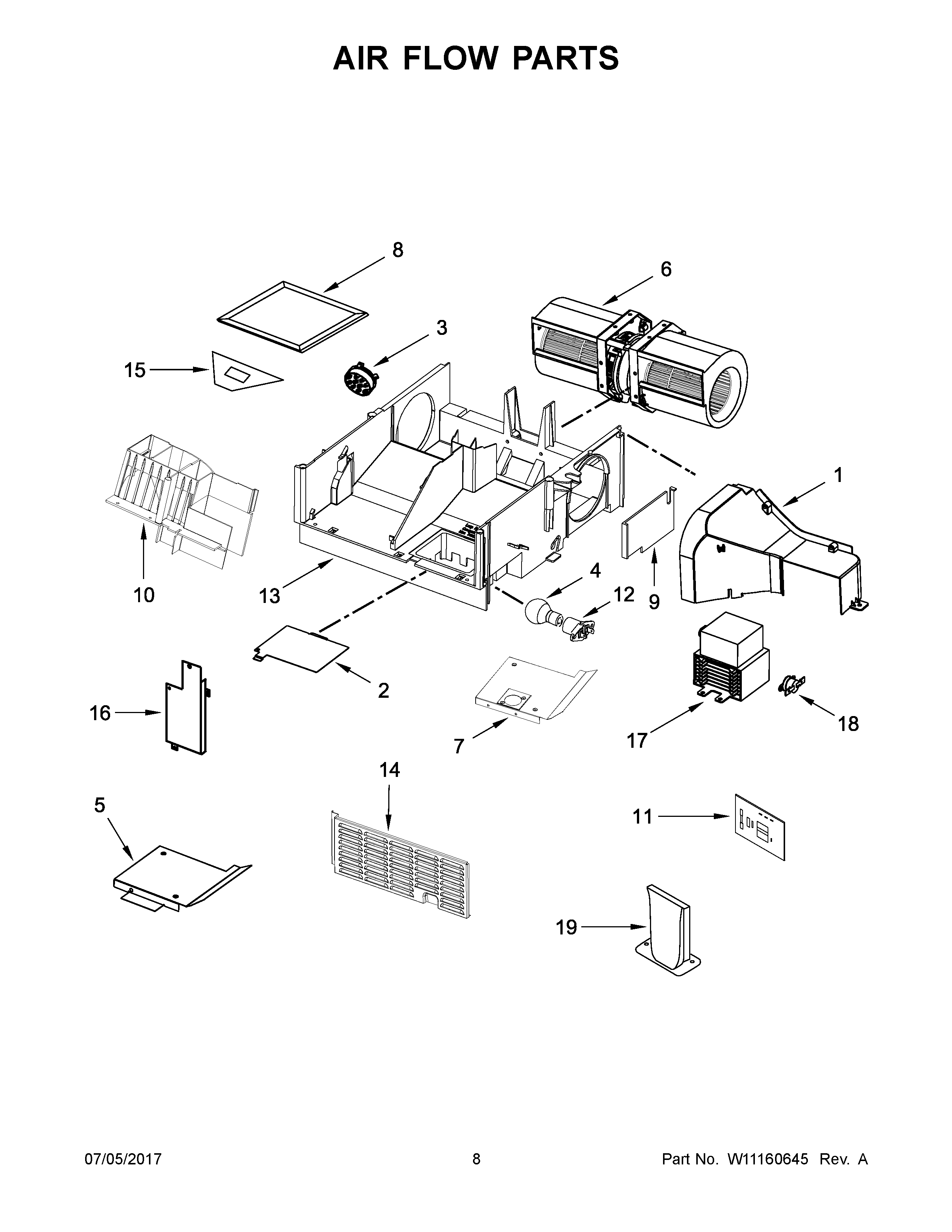

WMH32519CW2 05 – AIR FLOW PARTS

WMH32519CW2 05 – AIR FLOW PARTS

Written by

in

WMH32519CW2 05 – AIR FLOW PARTS

Products

PositionProduct
1W10471570 Whirlpool Microwave Deflector Assembly
28206382 Whirlpool Microwave Light Cover
3SENSOR, HUMIDITY
48206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5W10138797 Whirlpool Microwave Duct Cover
6W11441128 Whirlpool Microwave Fan Motor
7W10247762 Whirlpool Duct Cover
88206230A Whirlpool Microwave Charcoal Filter
9W11293488 Whirlpool Microwave Air Duct
10WPW10448768 Whirlpool Microwave Air Guide
11WPW10531156 Whirlpool Microwave Filter
12WPW10210878 Whirlpool Microwave LMP Housing
13W10771886 Whirlpool HVAC Air Duct
14W10342991 Whirlpool Microwave Side Cover
15W10810142 Whirlpool Relief Strain
16COVER, CAVITY AIR GUIDE INLET
17WPW10693025 Whirlpool Microwave Magnetron
18W10491433 Whirlpool Microwave Thermostat Fix
19W11381953 Whirlpool Microwave Plate
