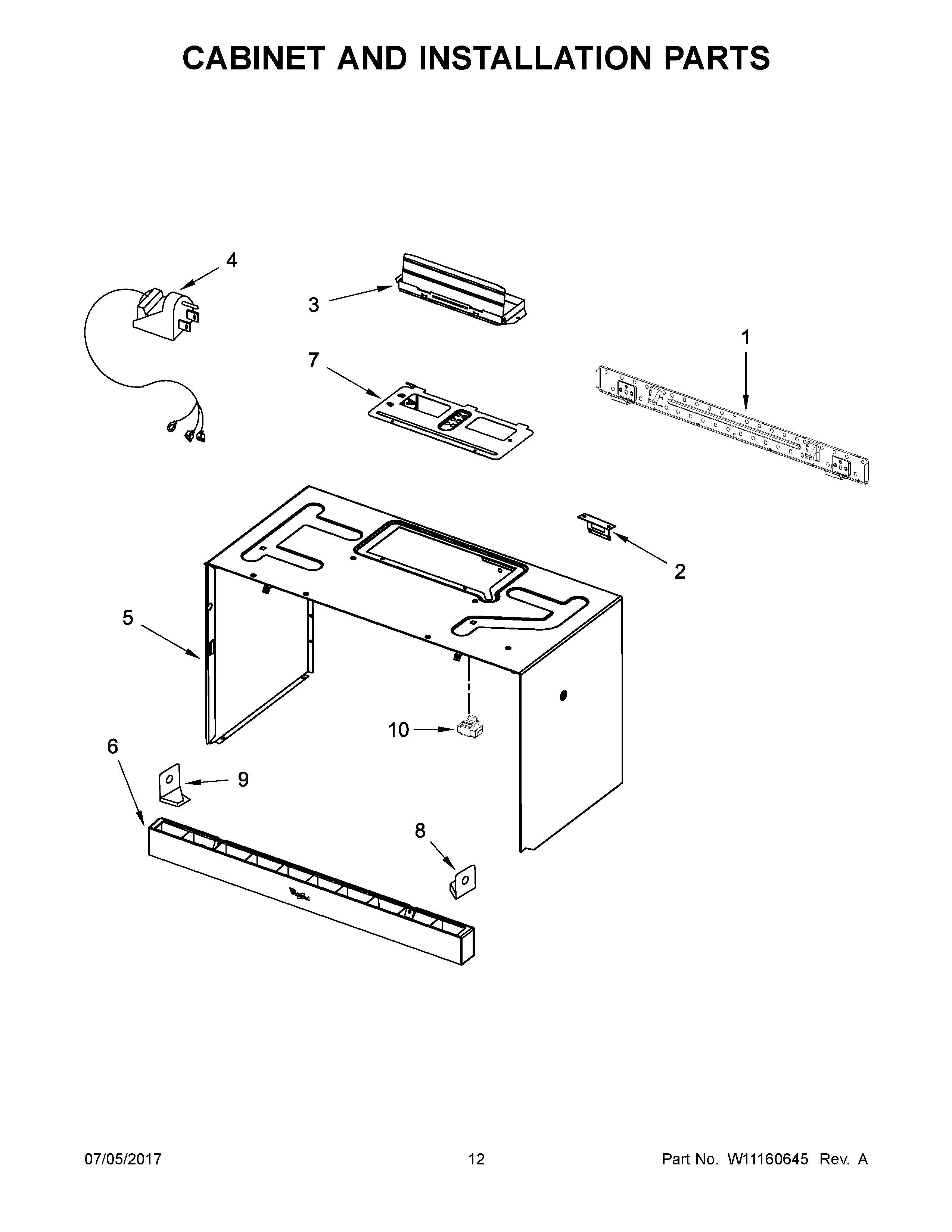

WMH32519CW2 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	W10899090 Whirlpool Microwave Wire Harness
NI	W10543253 Whirlpool Microwave Wire Harness
NI	W10498567 Whirlpool Microwave Wire Harness
NI	W10821385 Whirlpool Hardware Kit
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10190018 Whirlpool Microwave Template
1	W11025649 Whirlpool Microwave Mounting Plate
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	W10708076 Whirlpool Microwave Power Cord
5A	W10883284 Whirlpool Microwave Cabinet Wrapper
5	W10883282 Whirlpool Microwave Cover Assembly
5B	CASE, OUTER (BISCUIT)
6	W10468664 Whirlpool Microwave Vent Grill
6C	W10718221 Whirlpool Microwave Vent Grill
6A	WPW10468666 Whirlpool Microwave Vent Grille
6B	GRILLE, VENT (BISCUIT)
7	COVER, HOOD FAN MOTOR
8	W10810989 Whirlpool Microwave Mounting Bracket
8A	W10703282 Whirlpool Microwave Mounting Bracket
9A	W11026306 Whirlpool Microwave Mounting Bracket
9	W10830163 Whirlpool Microwave Mounting Bracket
10	W10596040 Whirlpool Microwave Nut
