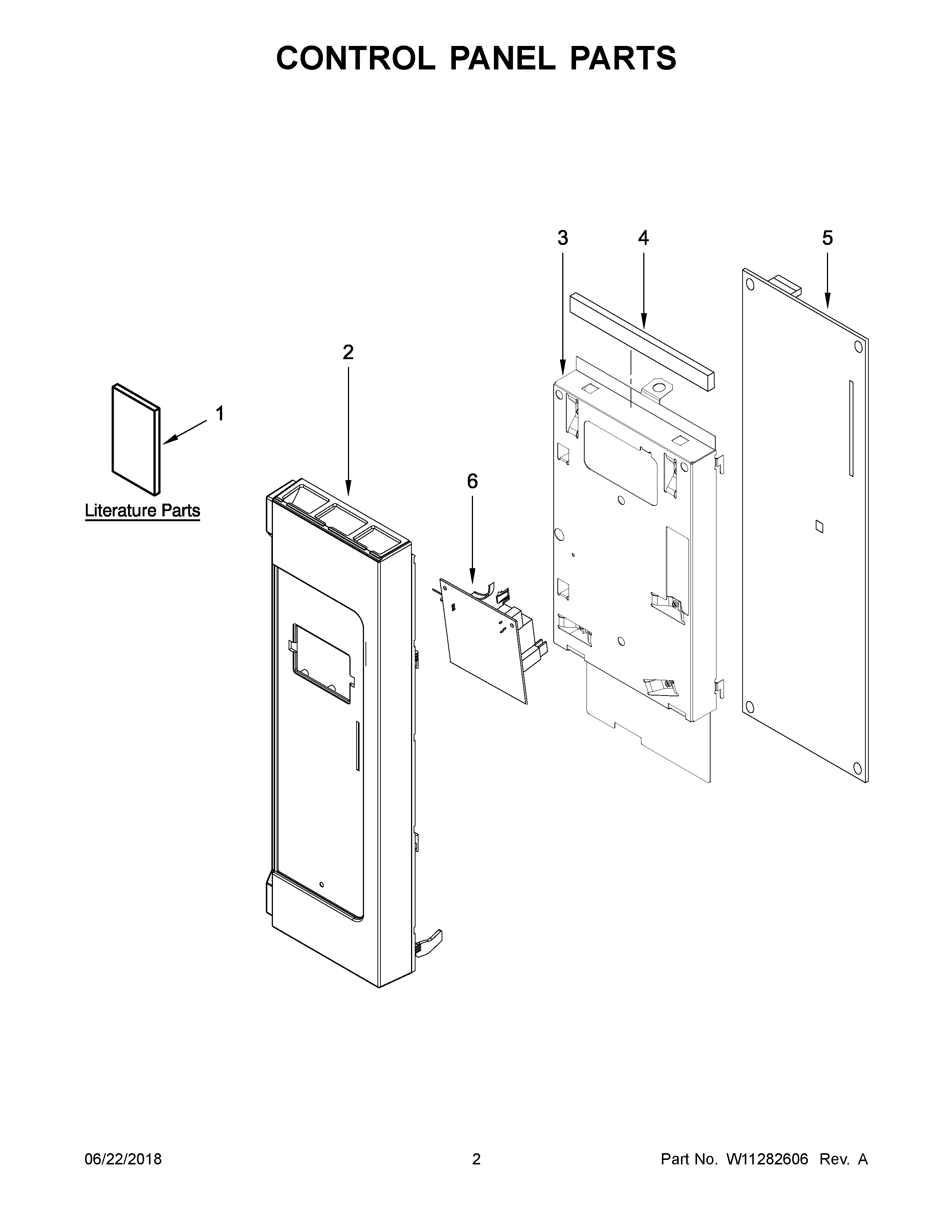

WMH32519FT3 02 – CONTROL PANEL PARTS

WMH32519FT3 02 – CONTROL PANEL PARTS

Written by

in

WMH32519FT3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CTECH SHEET
1BQUICK REFERENCE GUIDE
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2W10890786 Whirlpool Microwave Control Panel
2AW10890785 Whirlpool Microwave Control Panel
2BW10890787 Whirlpool Microwave Control Panel
2CW10918929 Whirlpool Microwave Control Panel
3W10833366 Whirlpool Microwave Control Bracket
4W10833531 Whirlpool Microwave Foam Seal
5W11342846 Whirlpool Microwave Electronic Control Board
6W11333816 Whirlpool Microwave Electronic Control Board
