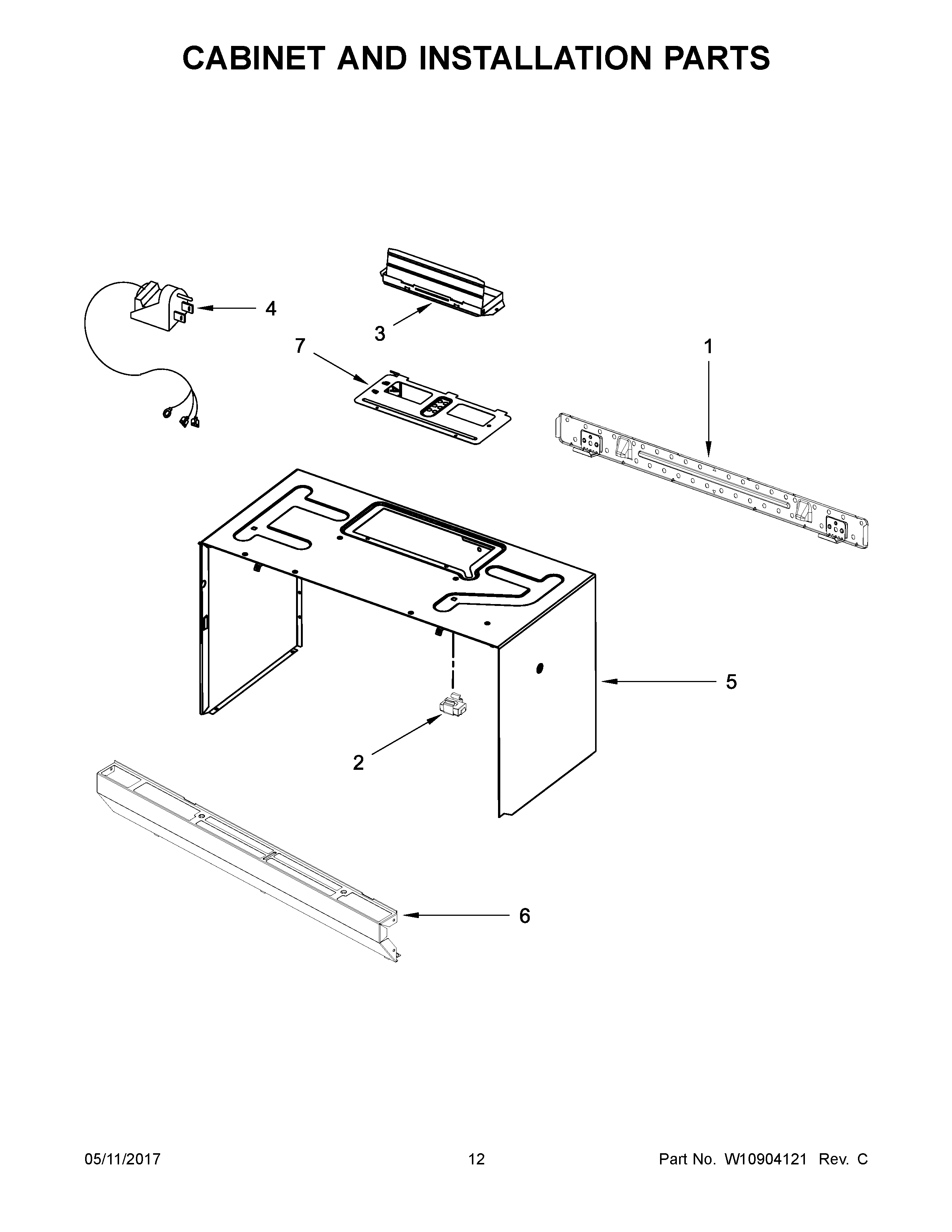

WMH32519FW0 07 – CABINET AND INSTALLATION PARTS

WMH32519FW0 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMH32519FW0 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW11638850 Whirlpool Wire Harness Assembly
NIW10543253 Whirlpool Microwave Wire Harness
NIW10498567 Whirlpool Microwave Wire Harness
NIW10899090 Whirlpool Microwave Wire Harness
NIW10821385 Whirlpool Hardware Kit
NIW10539840 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
1W11025649 Whirlpool Microwave Mounting Plate
2W10596040 Whirlpool Microwave Nut
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5AW10845689 Whirlpool Microwave Cabinet Wrapper
5BW10847294 Whirlpool Microwave Cabinet Wrapper
5W10846309 Whirlpool Microwave Cabinet Wrapper
6AW10845643 Whirlpool Microwave Vent Grill
6W10845642 Whirlpool Microwave Vent Grille
6BW10845638 Whirlpool Vent Grill
7COVER, FAN MOTOR
