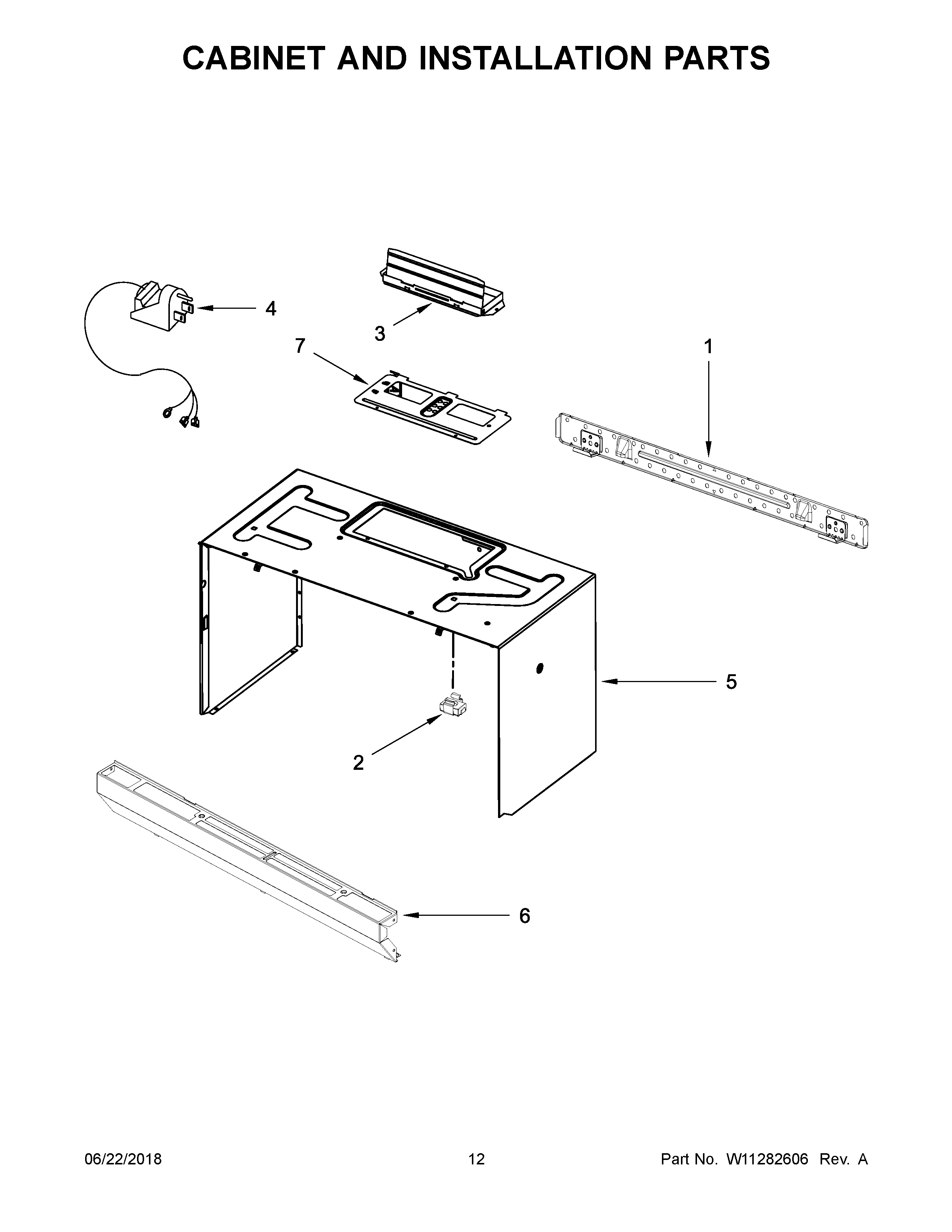

WMH32519FW3 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	W11219761 Whirlpool Microwave Wire Harness
NI	W11638850 Whirlpool Wire Harness Assembly
NI	W10498567 Whirlpool Microwave Wire Harness
NI	W10190018 Whirlpool Microwave Template
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10821385 Whirlpool Hardware Kit
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
1	W11025649 Whirlpool Microwave Mounting Plate
2	W11122643 Whirlpool Nut
3	W10843943 Whirlpool Microwave Vent Damper
4	W10708076 Whirlpool Microwave Power Cord
5A	W11446916 Whirlpool Microwave Cabinet Wrapper
5	W11446917 Whirlpool Microwave Cabinet Wrapper
5B	CASE, OUTER (BISCUIT)
6	W10845642 Whirlpool Microwave Vent Grille
6A	W10845643 Whirlpool Microwave Vent Grill
6B	W10845638 Whirlpool Vent Grill
7	COVER, FAN MOTOR
