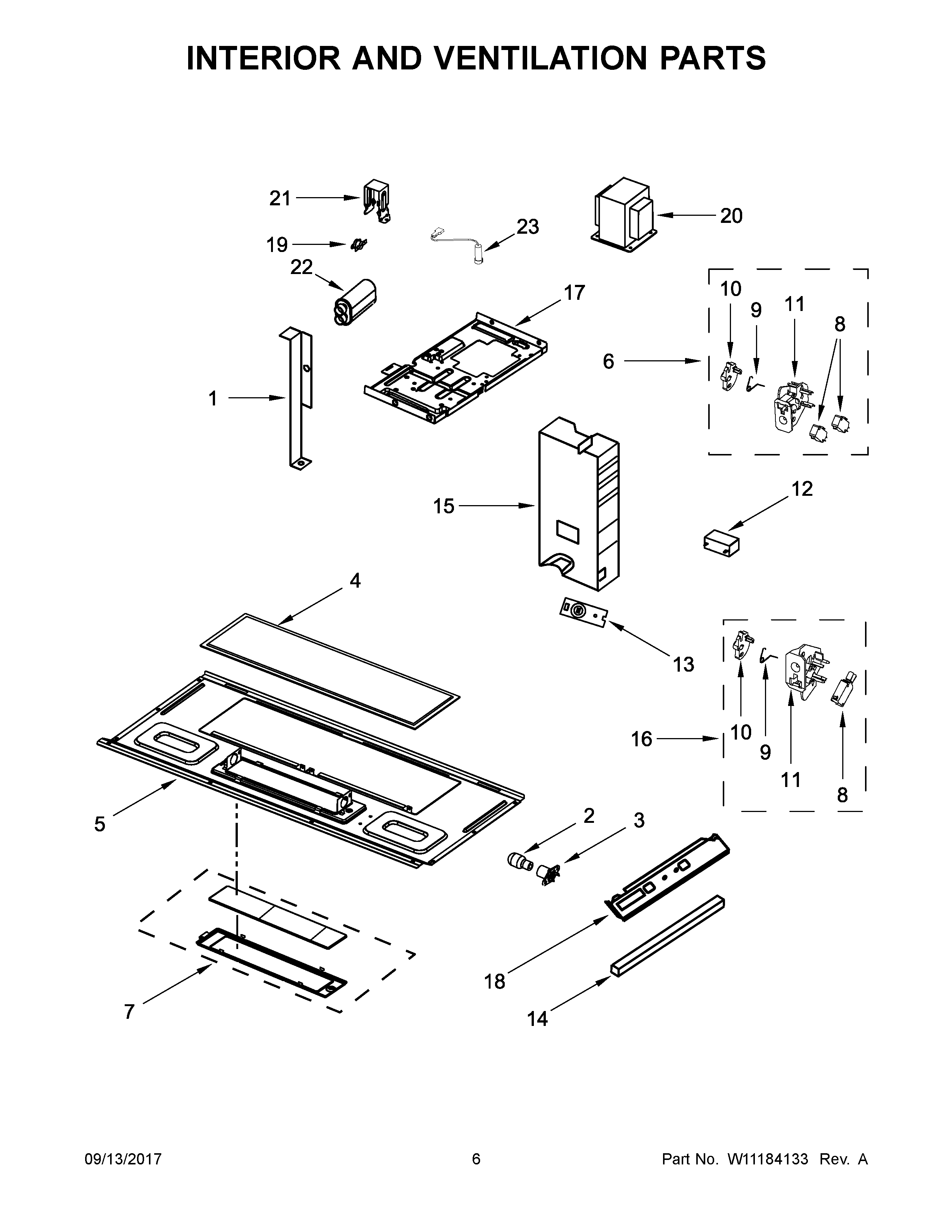

WMH32519FZ1 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W10313275 Whirlpool Microwave Support Bracket
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10210871 Whirlpool Microwave Lamp Housing
4	W10208631A Whirlpool Microwave Grease Filter
5	W10245196 Whirlpool Microwave Base
6	W11182140 Whirlpool Interlock Switch
7	COVR-LIGHT
8	CABINET (NOT A SERVICEABLE PART)
9	W10156812 Whirlpool Spring
10	W10562613 Whirlpool Microwave Interlock Cam Assembly
11	WP8206419 Whirlpool Microwave Top Interlock Support
11A	WPW10156813 Whirlpool Microwave Bottom Interlock Support
12	W11405832 Whirlpool Microwave Capacitor
13	W10163422 Whirlpool Microwave Thermistor
14	W10571179 Whirlpool Cushion
15	W11302941 Whirlpool Microwave Side Cover
16	W11182141 Whirlpool Interlock Switch
17	W10827115 Whirlpool Microwave Base
18	W10904020 Whirlpool Base Assembly
19	W10269232 Whirlpool Microwave Thermostat Fix
20	W10836753 Whirlpool Microwave Transformer
21	W10532063 Whirlpool Microwave Bracket
22	CAPACTR-MG
23	W11256462 Whirlpool Microwave Diode
