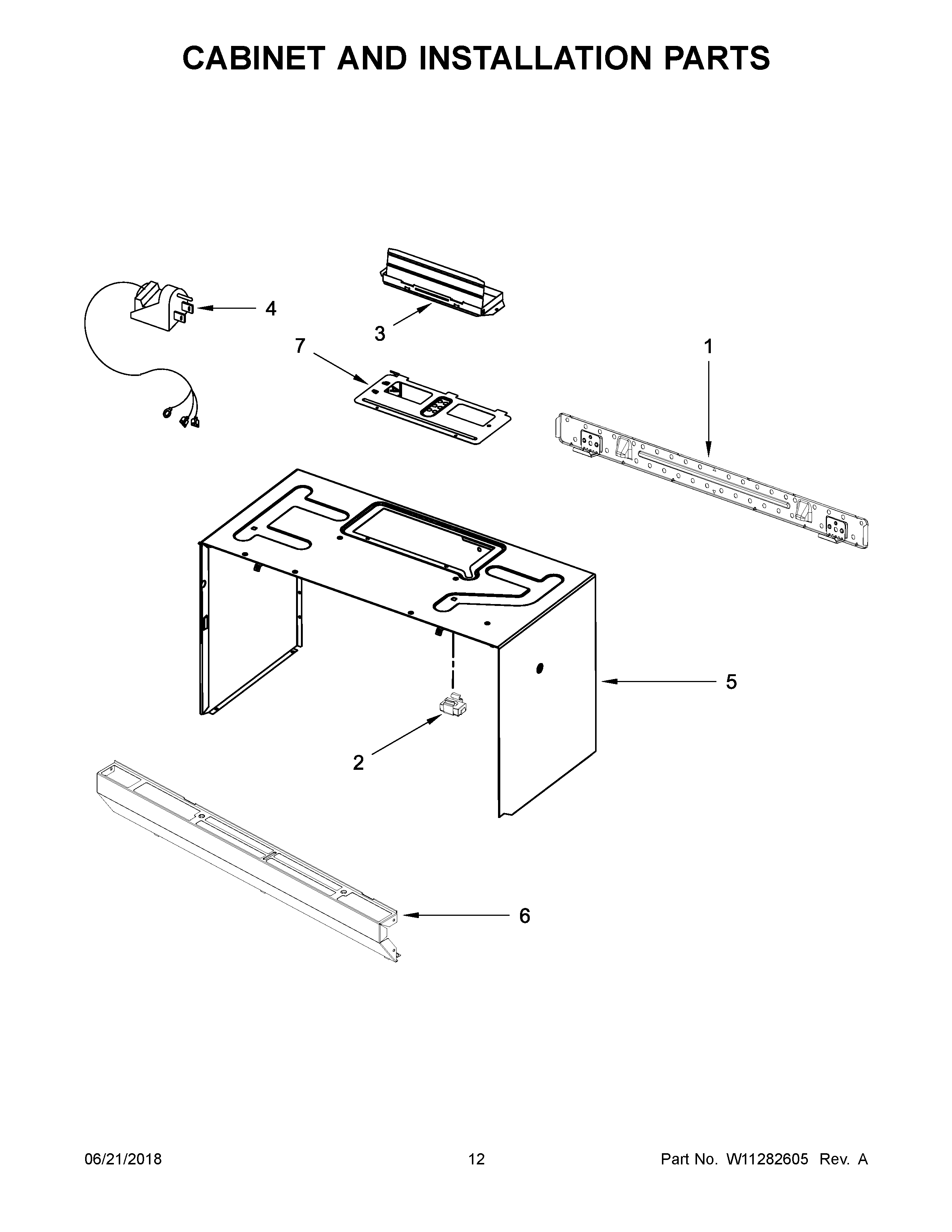

WMH32519FZ2 07 – CABINET AND INSTALLATION PARTS

WMH32519FZ2 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMH32519FZ2 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW11638850 Whirlpool Wire Harness Assembly
NIW10498567 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIW10821385 Whirlpool Hardware Kit
NIW10539840 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
NIW11219761 Whirlpool Microwave Wire Harness
1W11025649 Whirlpool Microwave Mounting Plate
2W11122643 Whirlpool Nut
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5W11446916 Whirlpool Microwave Cabinet Wrapper
6W10845643 Whirlpool Microwave Vent Grill
7COVER, FAN MOTOR
