WMH32519HV10 02 – CONTROL PANEL PARTS

WMH32519HV10 02 – CONTROL PANEL PARTS

Written by

in

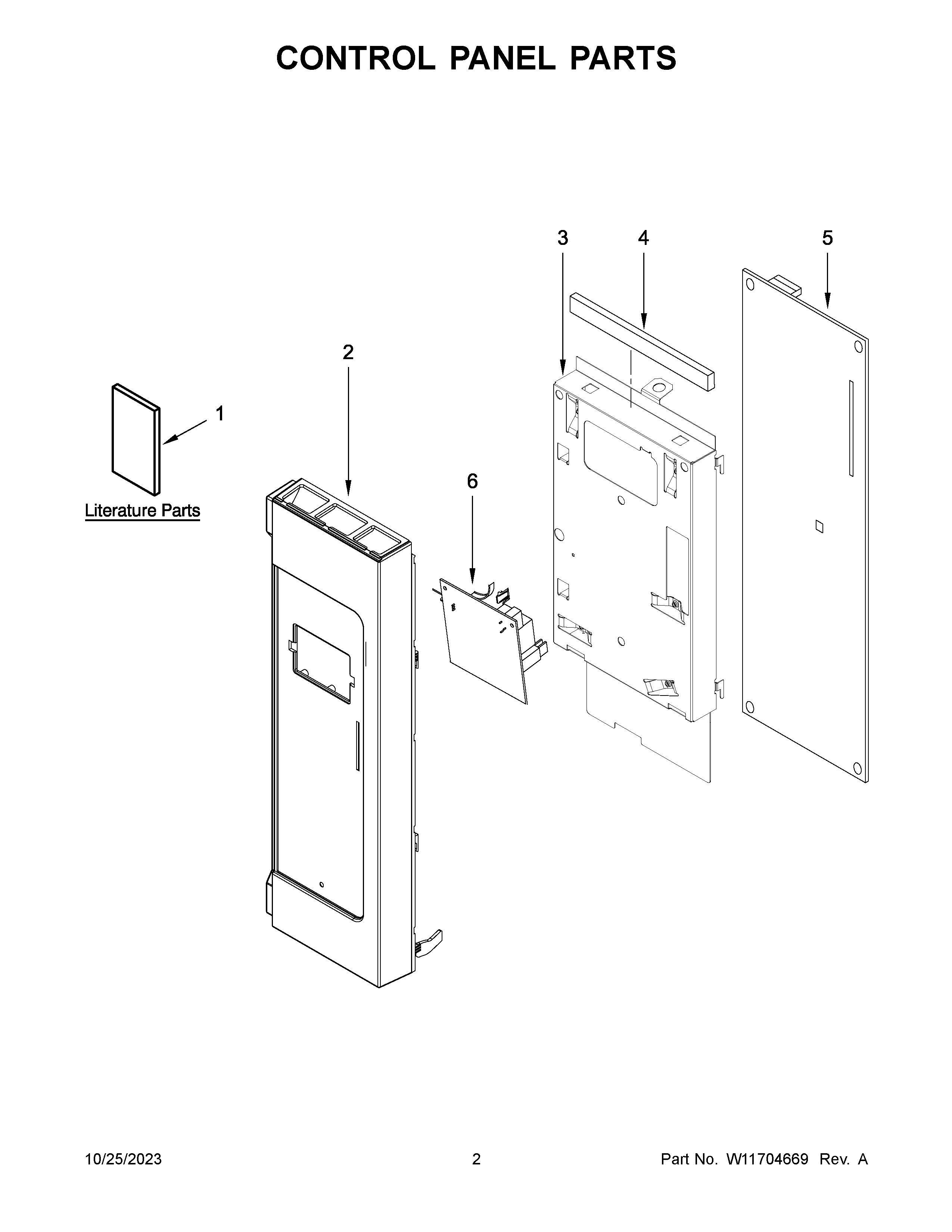

WMH32519HV10 02 – CONTROL PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CSHEET, TECH
1BQUICK REFERENCE GUIDE
1AUSE AND CARE GUIDE
2W11184551 Whirlpool Microwave Control Panel
2AW11184553 Whirlpool Microwave Control Panel
3W10833366 Whirlpool Microwave Control Bracket
4W11685342 Whirlpool Foam Seal
5W11342846 Whirlpool Microwave Electronic Control Board
6W11333816 Whirlpool Microwave Electronic Control Board
