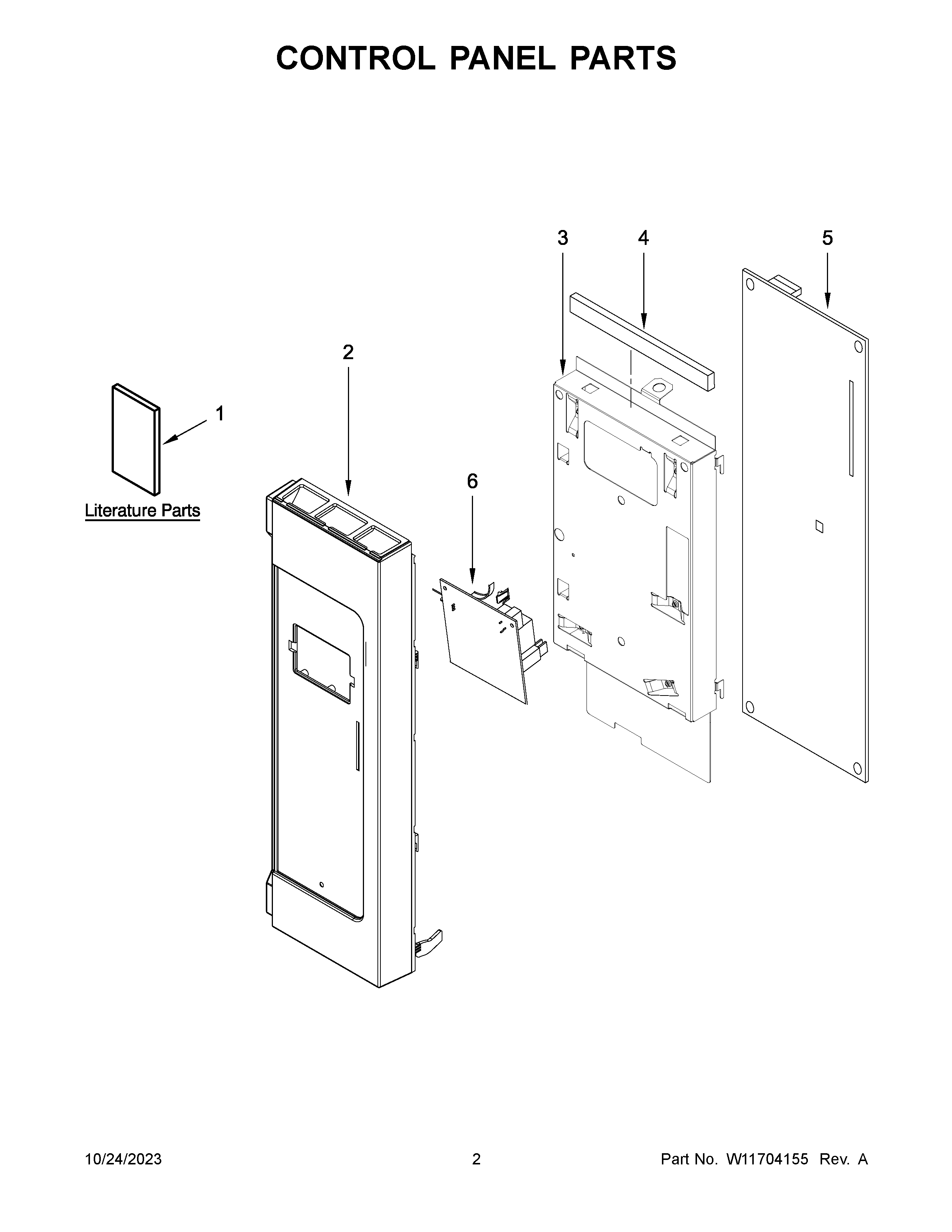

WMH32519HW07 02 – CONTROL PANEL PARTS

WMH32519HW07 02 – CONTROL PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CSHEET, TECH
1BQUICK REFERENCE GUIDE
1AUSE AND CARE GUIDE
2W11256450 Whirlpool Microwave Control Panel
2BCONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEMBRANE SWITCH) (BISCUIT)
2AW11256449 Whirlpool Microwave Control Panel
3W10833366 Whirlpool Microwave Control Bracket
4W11685342 Whirlpool Foam Seal
5W11342846 Whirlpool Microwave Electronic Control Board
6W11333816 Whirlpool Microwave Electronic Control Board
