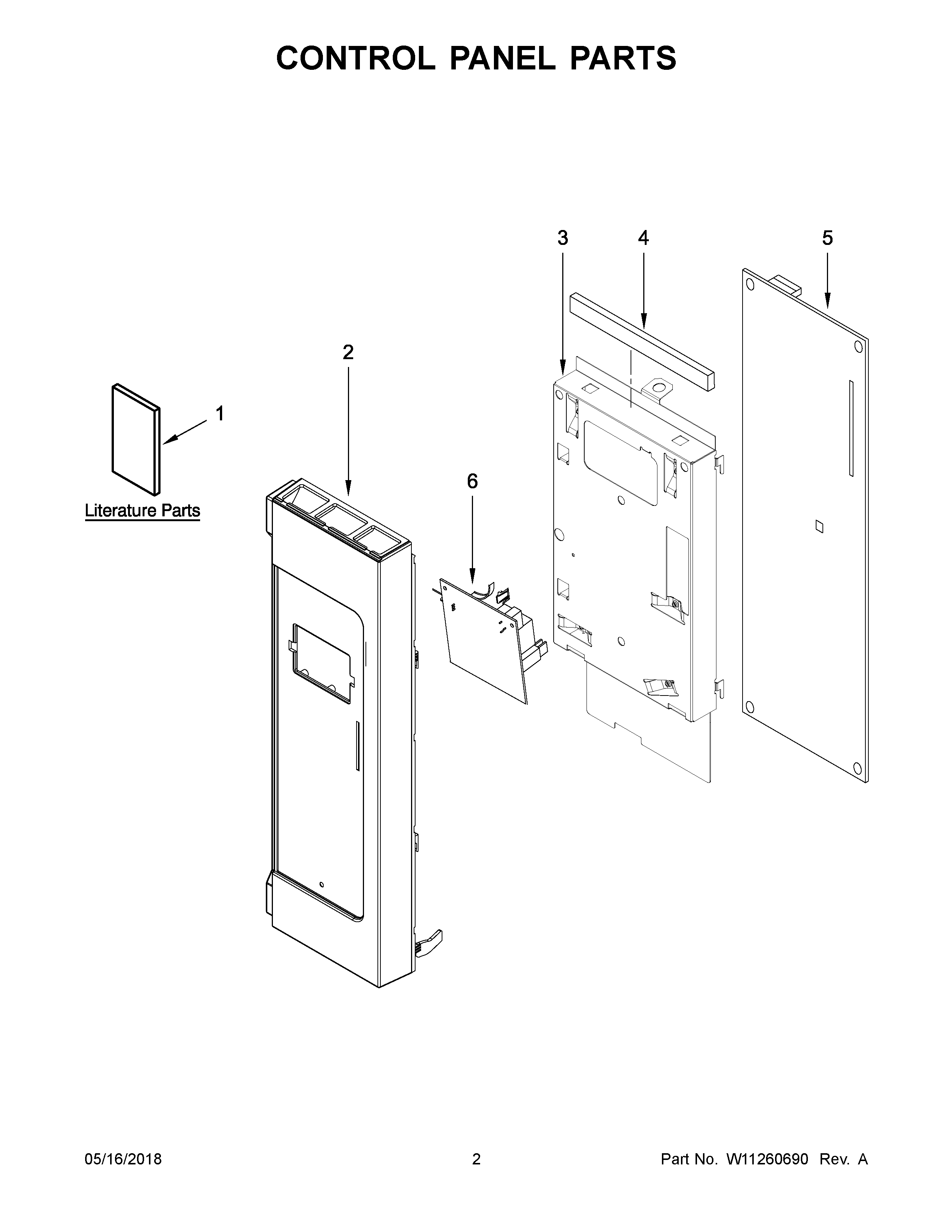

WMH32519HW2 02 – CONTROL PANEL PARTS

WMH32519HW2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CTECH SHEET
1INSTALLATION INSTRUCTIONS
1BQUICK REFERENCE GUIDE
1AUSE AND CARE GUIDE
2W11256450 Whirlpool Microwave Control Panel
2AW11256449 Whirlpool Microwave Control Panel
2BCONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEMBRANE SWITCH) (BISCUIT)
3W10833366 Whirlpool Microwave Control Bracket
4W10833531 Whirlpool Microwave Foam Seal
5W11342846 Whirlpool Microwave Electronic Control Board
6W11333816 Whirlpool Microwave Electronic Control Board
