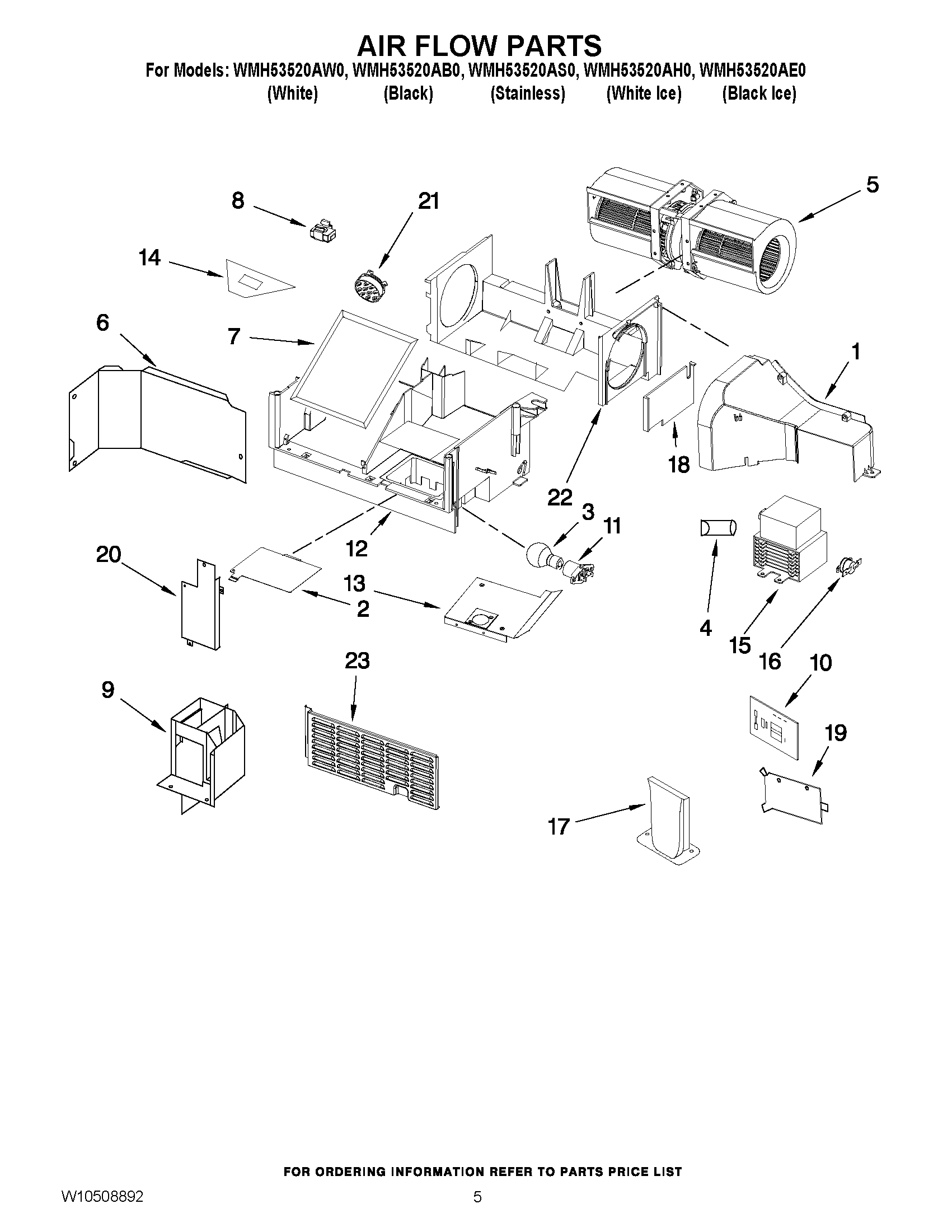

WMH53520AS0 04 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	Magnetron, Terminal Cover
5	MOTOR, FAN ASSEMBLY
6	Air Guide,Plate
7	8206230A Whirlpool Microwave Charcoal Filter
8	W10596040 Whirlpool Microwave Nut
9	PLATE, SEALING AIR GUIDE
10	WPW10452535 Whirlpool Microwave Filter
11	WPW10210878 Whirlpool Microwave LMP Housing
12	W10387590 Whirlpool Microwave Air Duct
13	Support, Sensor
14	SOCKET, MOTOR WIRE
15	W10245183 Whirlpool Microwave Magnetron
16	W10598693 Whirlpool Microwave Thermostat Fix
17	W11381953 Whirlpool Microwave Plate
18	W10245182 Whirlpool Microwave Duct Cover
19	W10313274 Whirlpool Microwave Mounting Bracket
20	Cover, Inlet Air Cavity Guide
21	W10245178 Whirlpool Microwave Sensor
22	HOLDER, HOOD FAN
23	W10342991 Whirlpool Microwave Side Cover
