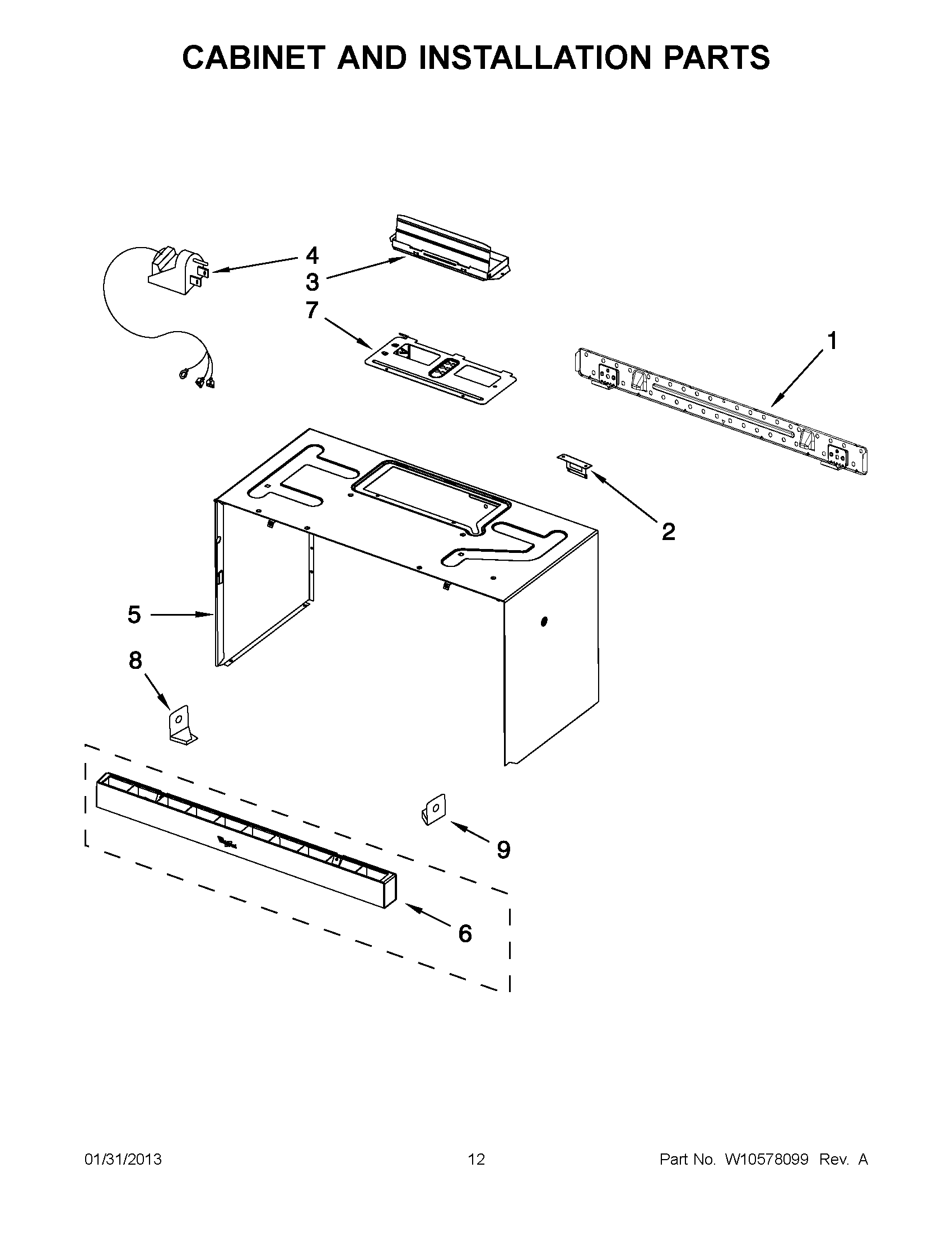

WMH53520AW1 06 – CABINET AND INSTALLATION PARTS

WMH53520AW1 06 – CABINET AND INSTALLATION PARTS

Written by

in

WMH53520AW1 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW10543255 Whirlpool Microwave Wire Harness
NIW10434801 Whirlpool Wire Harness
NIW10821385 Whirlpool Hardware Kit
NIW10539840 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5WPW10462003 Whirlpool Oven Microwave Cabinet Wrapper
5WPW10462001 Whirlpool Microwave Cab Wrapper
6WPW10468666 Whirlpool Microwave Vent Grille
6W10571504 Whirlpool Microwave Vent Grill
6W10468664 Whirlpool Microwave Vent Grill
7COVER, HOOD FAN MOTOR
8W11026306 Whirlpool Microwave Mounting Bracket
8W10830163 Whirlpool Microwave Mounting Bracket
9W10810989 Whirlpool Microwave Mounting Bracket
9W10703282 Whirlpool Microwave Mounting Bracket
