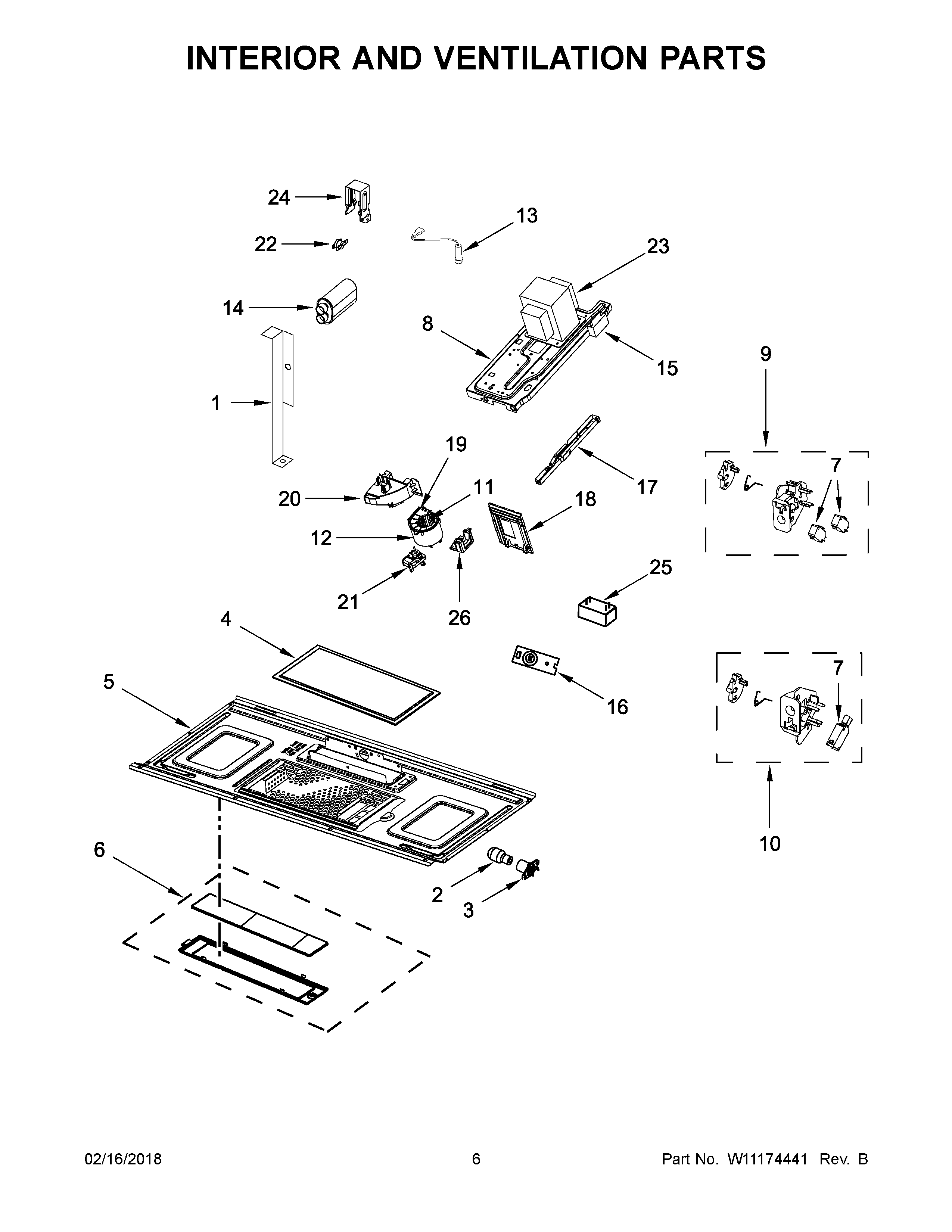

WMH53520CE6 04 – INTERIOR AND VENTILATION PARTS

WMH53520CE6 04 – INTERIOR AND VENTILATION PARTS

Written by

in

WMH53520CE6 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10540715 Whirlpool Microwave Support Bracket
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10208631A Whirlpool Microwave Grease Filter
5W10571127 Whirlpool Microwave Base
6COVR-LIGHT
7CABINET (NOT A SERVICEABLE PART)
8W10631826 Whirlpool Microwave Base
9W11192678 Whirlpool Interlock Switch
10W11192679 Whirlpool Interlock Switch
11W10533503 Whirlpool Microwave Fan Wheel
12W10533501 Whirlpool Microwave Housing
13W11256462 Whirlpool Microwave Diode
14CAPACTR-MG
15W11405831 Whirlpool Microwave Capacitor
16W10536989 Whirlpool Microwave Thermistor
17W10540718 Whirlpool Microwave Mounting Bracket
18W10533481 Whirlpool Microwave Deflector Assembly
19W10533502 Whirlpool Microwave Fan Cover
20W10631700 Whirlpool Microwave Air Guide
21W11230994 Whirlpool Microwave Fan Motor
22W10598693 Whirlpool Microwave Thermostat Fix
23W11371266 Whirlpool Microwave Transformer
24W10518719 Whirlpool Microwave Deflector Assembly
25W11035768 Whirlpool Microwave Resistor
26W10533480 Whirlpool Microwave Holder
