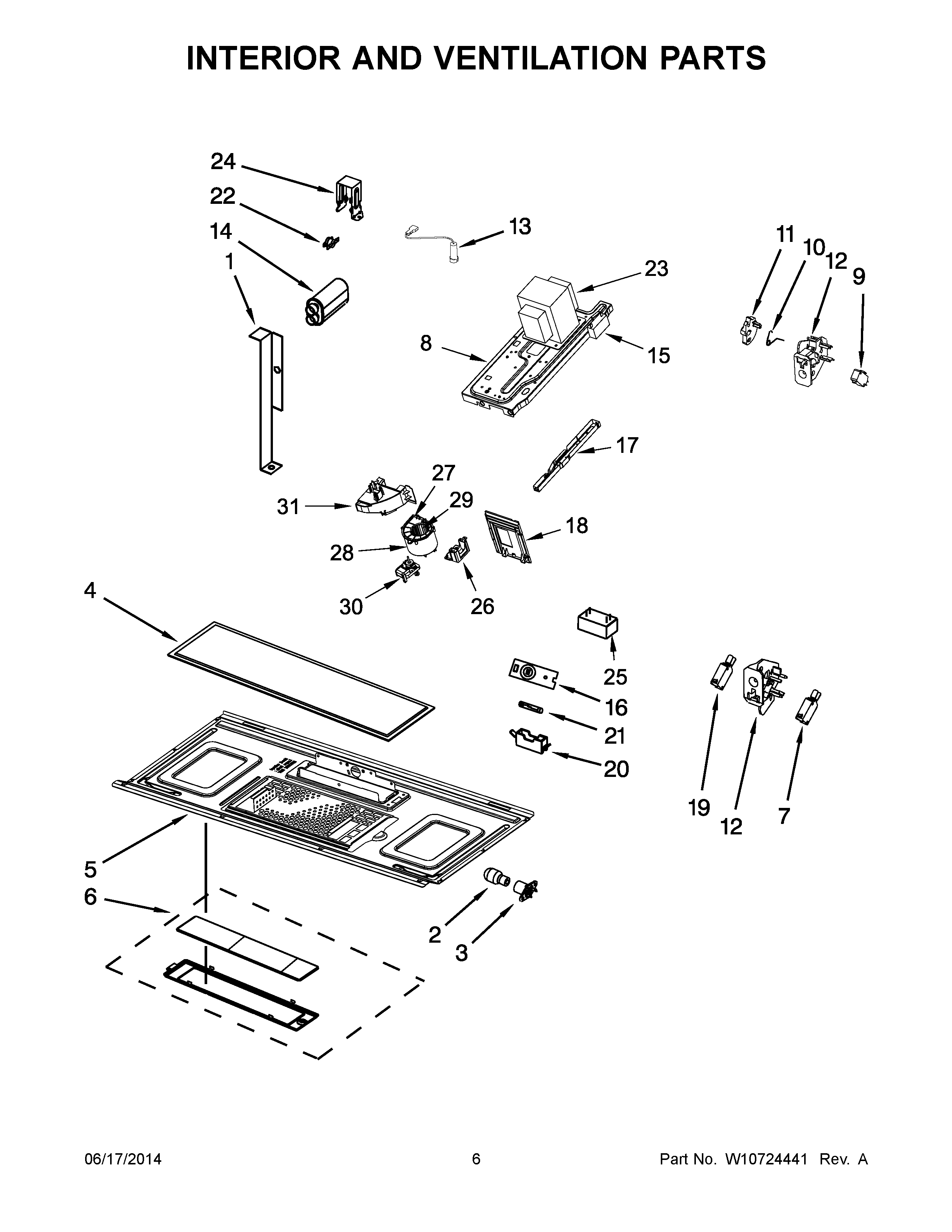

WMH53520CH1 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10540715 Whirlpool Microwave Support Bracket
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10208631A Whirlpool Microwave Grease Filter
5W10571127 Whirlpool Microwave Base
6COVR-LIGHT
7W10269458 Whirlpool Microwave Door Switch
8W10631826 Whirlpool Microwave Base
9W10269460 Whirlpool Microwave Door Switch
10W10156812 Whirlpool Spring
11W10562613 Whirlpool Microwave Interlock Cam Assembly
12WPW10156813 Whirlpool Microwave Bottom Interlock Support
12WP8206419 Whirlpool Microwave Top Interlock Support
13W11256462 Whirlpool Microwave Diode
14W10561770 Whirlpool Microwave Capacitor-MG
15W11405831 Whirlpool Microwave Capacitor
16W10536989 Whirlpool Microwave Thermistor
17W10540718 Whirlpool Microwave Mounting Bracket
18W10533481 Whirlpool Microwave Deflector Assembly
19W10727360 Whirlpool Microwave Door Switch
20W10245194 Whirlpool Microwave Fuse Block
21FUSE-THRML
22W10598693 Whirlpool Microwave Thermostat Fix
23W10733412 Whirlpool Microwave High Voltage Transformer
24W10518719 Whirlpool Microwave Deflector Assembly
25W10568805 Whirlpool Microwave Resistor
26W10533480 Whirlpool Microwave Holder
27W10533502 Whirlpool Microwave Fan Cover
28W10533501 Whirlpool Microwave Housing
29W10533503 Whirlpool Microwave Fan Wheel
30W11230994 Whirlpool Microwave Fan Motor
31W10631700 Whirlpool Microwave Air Guide
