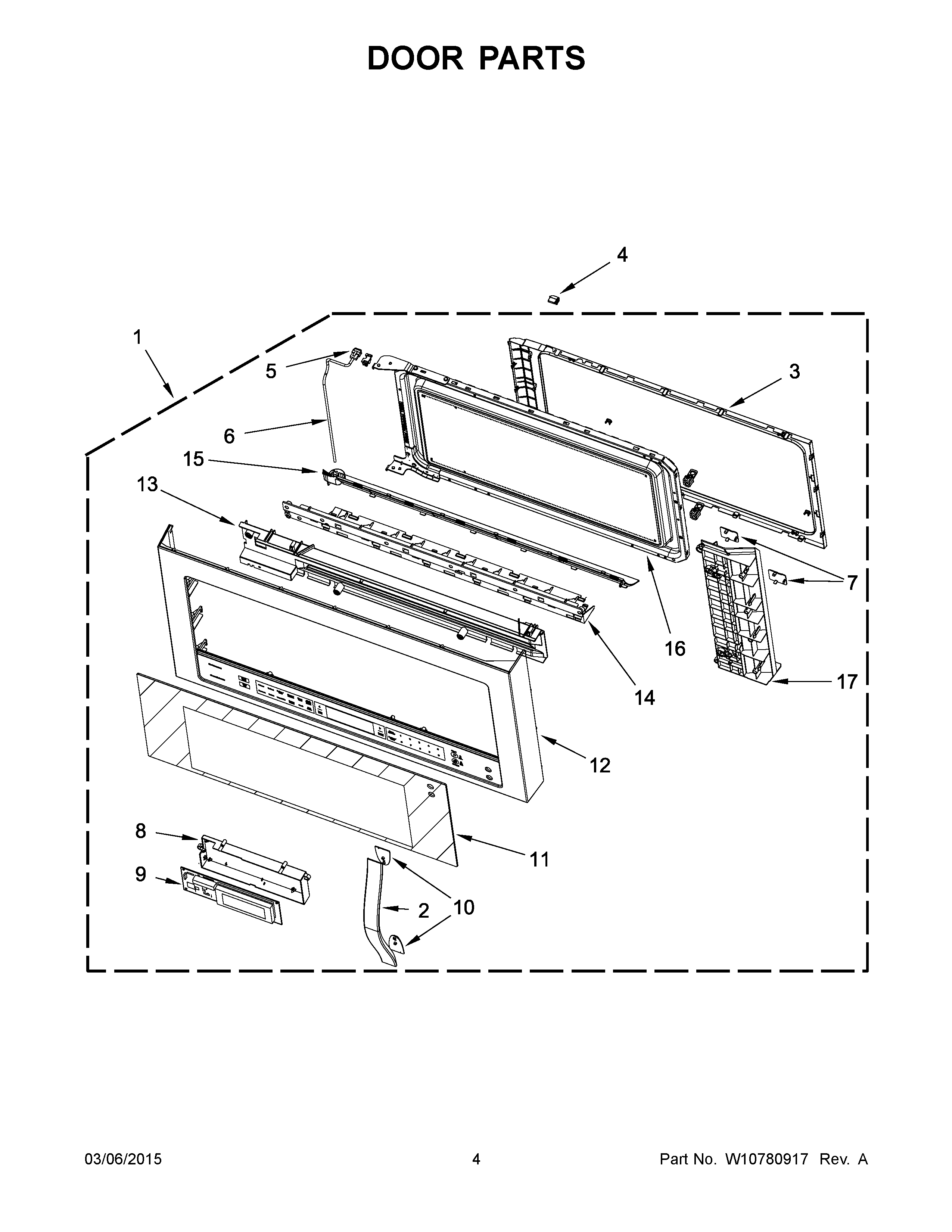

WMH73521CE1 03 – DOOR PARTS

WMH73521CE1 03 – DOOR PARTS

Written by

in

WMH73521CE1 03 – DOOR PARTS

Products

PositionProduct
1DW10860357 Whirlpool Microwave Door
1W10860355 Whirlpool Microwave Door
1AW10860354 Whirlpool Microwave Door
1BDOOR, COMPLETE (STAINLESS)
1CW10860358 Whirlpool Microwave Door
2W10571333 Whirlpool Microwave Door Handle
2AW10571332 Whirlpool Microwave Door Handle
2BW10478162 Whirlpool Microwave Door Handle
3W10647773 Whirlpool Microwave Choke Cover
3AW10647772 Whirlpool Microwave Choke Cover
4AW10643974 Whirlpool Microwave Clip
4W10643975 Whirlpool Microwave Clip
5W10478659 Whirlpool Microwave Wire Holder
6W10508745 Whirlpool Microwave Wire Harness
7AW10478657 Whirlpool Microwave Cover
7W10571119 Whirlpool Plate Cover
8W10478216 Whirlpool Holder Assembly
9WPW10508737 Whirlpool Microwave Electronic Control Board + Core
10W10478213 Whirlpool Microwave Cushion
11CWPW10531174 Whirlpool Glass Door
11AWPW10478721 Whirlpool Microwave Door Glass
11WPW10478716 Whirlpool Door Glass
11BGLASS, OUTER (STAINLESS)
12BW10578583 Whirlpool Microwave Outer Door
12W10648080 Whirlpool Outer Door
12AW10648081 Whirlpool Microwave Outer Door
12DW10648083 Whirlpool Microwave Outer Door
12CDOOR-OUTER
13AW10478222 Whirlpool Microwave Cover
13W10476553 Whirlpool Microwave Cover
14W10476546 Whirlpool Microwave Support Bracket
15AW10476550 Whirlpool Microwave Door Trim
15W10570992 Whirlpool Microwave Door Trim
16AW10648084 Whirlpool Microwave Inner Door
16W10648085 Whirlpool Door Inner
17AW11699920 Whirlpool Microwave Support Bracket
17W10734944 Whirlpool Microwave Support Bracket
