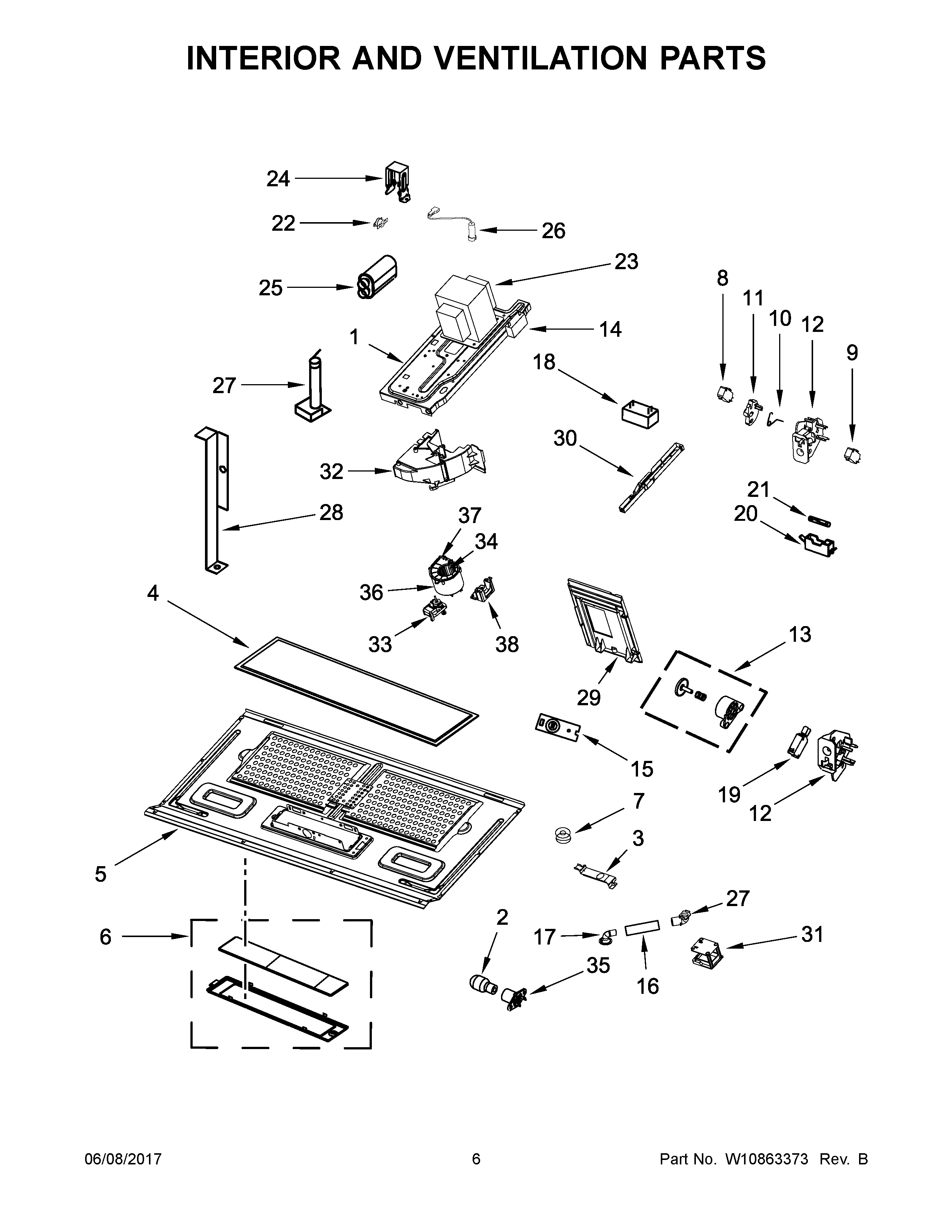

WMH73521CE3 04 – INTERIOR AND VENTILATION PARTS

WMH73521CE3 04 – INTERIOR AND VENTILATION PARTS

Written by

in

WMH73521CE3 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10631826 Whirlpool Microwave Base
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10525853 Whirlpool Microwave Sensor Bracket
4W10535950 Whirlpool Microwave Grease Filter
5W10571126 Whirlpool Microwave Base
6COVR-LIGHT
7W10510237 Whirlpool Microwave Spacer
8W10727360 Whirlpool Microwave Door Switch
9W10269458 Whirlpool Microwave Door Switch
10W10156812 Whirlpool Spring
11W10562613 Whirlpool Microwave Interlock Cam Assembly
12WP8206419 Whirlpool Microwave Top Interlock Support
12AWPW10156813 Whirlpool Microwave Bottom Interlock Support
13W10197758 Whirlpool Microwave Piston
14W11405831 Whirlpool Microwave Capacitor
15W10536989 Whirlpool Microwave Thermistor
16W10510235 Whirlpool Microwave Shield
17W10510234 Whirlpool Microwave Shield
18W10568805 Whirlpool Microwave Resistor
19W10211974 Whirlpool Microwave Door Interlock Micro Switch
20W10245194 Whirlpool Microwave Fuse Block
21FUSE-THRML
22W10864742 Whirlpool Microwave Thermostat Fix
23W10733412 Whirlpool Microwave High Voltage Transformer
24W10633730 Whirlpool Microwave Control Bracket
25W10561770 Whirlpool Microwave Capacitor-MG
26W11256462 Whirlpool Microwave Diode
27W10510233 Whirlpool Microwave Shield
28W10540715 Whirlpool Microwave Support Bracket
29W10533481 Whirlpool Microwave Deflector Assembly
30W10540718 Whirlpool Microwave Mounting Bracket
31W11416049 Whirlpool Microwave Electronic Control Board
32W10631700 Whirlpool Microwave Air Guide
33W11230994 Whirlpool Microwave Fan Motor
34W10533503 Whirlpool Microwave Fan Wheel
35W10210871 Whirlpool Microwave Lamp Housing
36W10533501 Whirlpool Microwave Housing
37W10533502 Whirlpool Microwave Fan Cover
38W10533480 Whirlpool Microwave Holder
