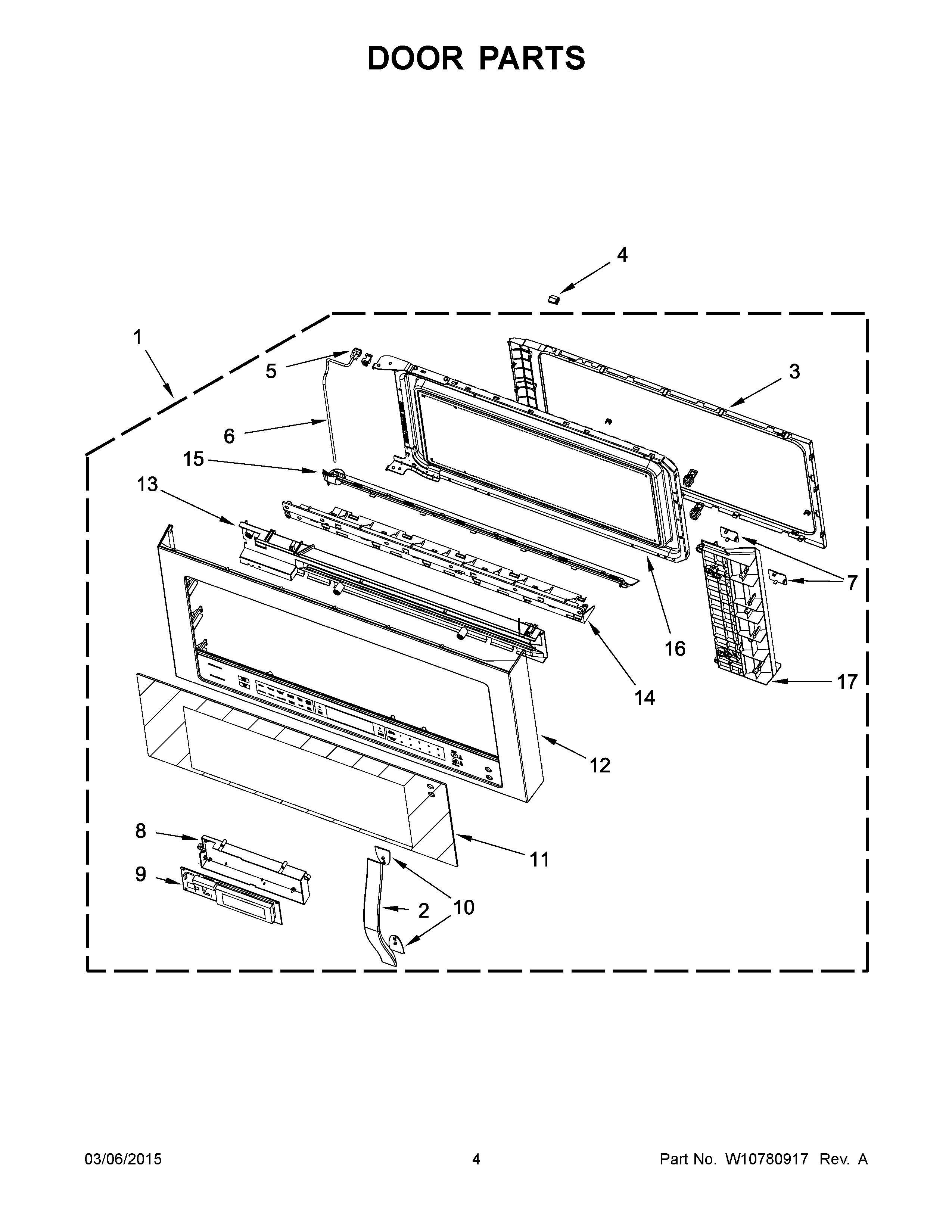

WMH73521CH1 03 – DOOR PARTS

Products

Position	Product
1D	W10860357 Whirlpool Microwave Door
1	W10860355 Whirlpool Microwave Door
1A	W10860354 Whirlpool Microwave Door
1B	DOOR, COMPLETE (STAINLESS)
1C	W10860358 Whirlpool Microwave Door
2	W10571333 Whirlpool Microwave Door Handle
2A	W10571332 Whirlpool Microwave Door Handle
2B	W10478162 Whirlpool Microwave Door Handle
3	W10647773 Whirlpool Microwave Choke Cover
3A	W10647772 Whirlpool Microwave Choke Cover
4A	W10643974 Whirlpool Microwave Clip
4	W10643975 Whirlpool Microwave Clip
5	W10478659 Whirlpool Microwave Wire Holder
6	W10508745 Whirlpool Microwave Wire Harness
7A	W10478657 Whirlpool Microwave Cover
7	W10571119 Whirlpool Plate Cover
8	W10478216 Whirlpool Holder Assembly
9	WPW10508737 Whirlpool Microwave Electronic Control Board + Core
10	W10478213 Whirlpool Microwave Cushion
11C	WPW10531174 Whirlpool Glass Door
11A	WPW10478721 Whirlpool Microwave Door Glass
11	WPW10478716 Whirlpool Door Glass
11B	GLASS, OUTER (STAINLESS)
12B	W10578583 Whirlpool Microwave Outer Door
12	W10648080 Whirlpool Outer Door
12A	W10648081 Whirlpool Microwave Outer Door
12D	W10648083 Whirlpool Microwave Outer Door
12C	DOOR-OUTER
13A	W10478222 Whirlpool Microwave Cover
13	W10476553 Whirlpool Microwave Cover
14	W10476546 Whirlpool Microwave Support Bracket
15A	W10476550 Whirlpool Microwave Door Trim
15	W10570992 Whirlpool Microwave Door Trim
16A	W10648084 Whirlpool Microwave Inner Door
16	W10648085 Whirlpool Door Inner
17A	W11699920 Whirlpool Microwave Support Bracket
17	W10734944 Whirlpool Microwave Support Bracket
