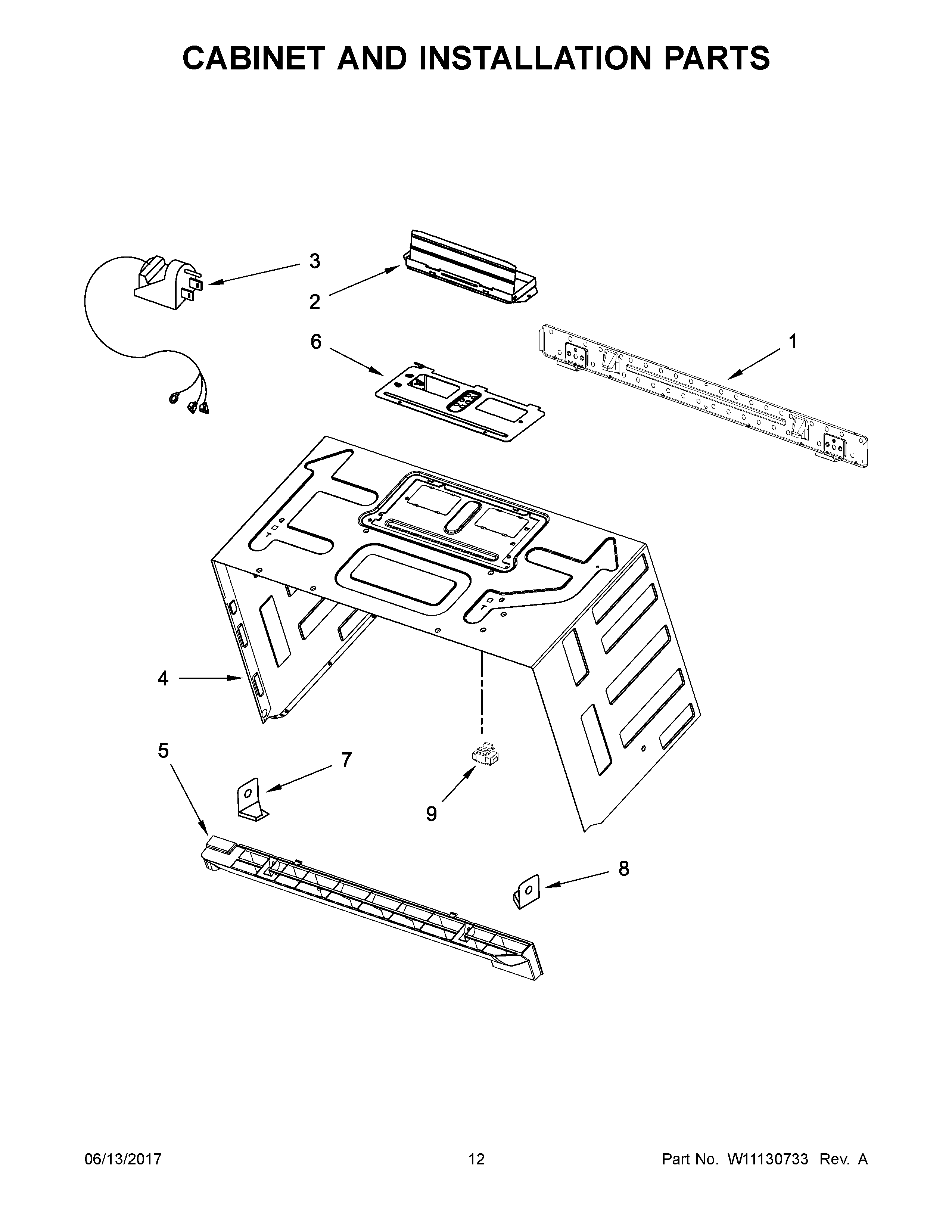

WMH75021HV0 07 – CABINET AND INSTALLATION PARTS

WMH75021HV0 07 – CABINET AND INSTALLATION PARTS

Written by

in

WMH75021HV0 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW11302288 Whirlpool Microwave Wire Harness
NIW10508746 Whirlpool Microwave Wire Harness
NIW10821385 Whirlpool Hardware Kit
NIW10539840 Whirlpool Microwave Wire Harness
NIW10508741 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
NIMISCELLANEOUS PARTS, HARNESS, MAIN
1W11025649 Whirlpool Microwave Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
3W10708076 Whirlpool Microwave Power Cord
4W10818229 Whirlpool Microwave Cabinet Wrapper
5W10701699 Whirlpool Microwave Vent Grill
6COVER, FAN MOTOR
7AW11026306 Whirlpool Microwave Mounting Bracket
7W10830163 Whirlpool Microwave Mounting Bracket
8W10810989 Whirlpool Microwave Mounting Bracket
8AW10703282 Whirlpool Microwave Mounting Bracket
9W10596040 Whirlpool Microwave Nut
