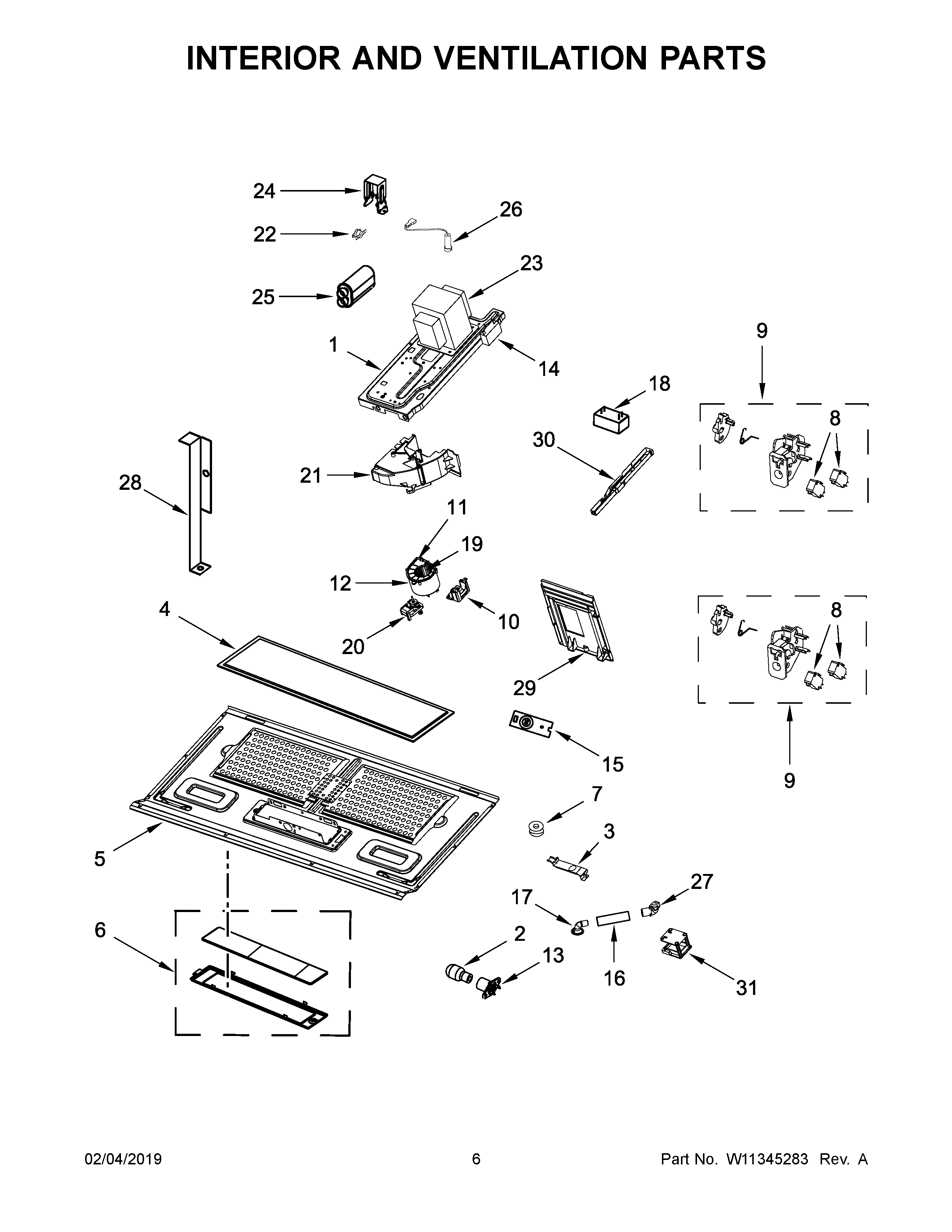

WMH75021HV2 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W10631826 Whirlpool Microwave Base
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10525853 Whirlpool Microwave Sensor Bracket
4	W10535950 Whirlpool Microwave Grease Filter
5	W10571126 Whirlpool Microwave Base
6	COVR-LIGHT
7	W10510237 Whirlpool Microwave Spacer
8	CABINET (NOT A SERVICEABLE PART)
9	INTERLOCK
10	W10533480 Whirlpool Microwave Holder
11	W10533502 Whirlpool Microwave Fan Cover
12	W10533501 Whirlpool Microwave Housing
13	W10210871 Whirlpool Microwave Lamp Housing
14	W11405831 Whirlpool Microwave Capacitor
15	W10536989 Whirlpool Microwave Thermistor
16	W10510235 Whirlpool Microwave Shield
17	W10510234 Whirlpool Microwave Shield
18	W11259891 Whirlpool Resistor
19	W10533503 Whirlpool Microwave Fan Wheel
20	W11230994 Whirlpool Microwave Fan Motor
21	W10631700 Whirlpool Microwave Air Guide
22	W10864742 Whirlpool Microwave Thermostat Fix
23	W11371718 Whirlpool Microwave Transformer
24	W10633730 Whirlpool Microwave Control Bracket
25	W10561770 Whirlpool Microwave Capacitor-MG
26	W11256462 Whirlpool Microwave Diode
27	W10510233 Whirlpool Microwave Shield
28	W10540715 Whirlpool Microwave Support Bracket
29	W10533481 Whirlpool Microwave Deflector Assembly
30	W10540718 Whirlpool Microwave Mounting Bracket
31	W11416049 Whirlpool Microwave Electronic Control Board
