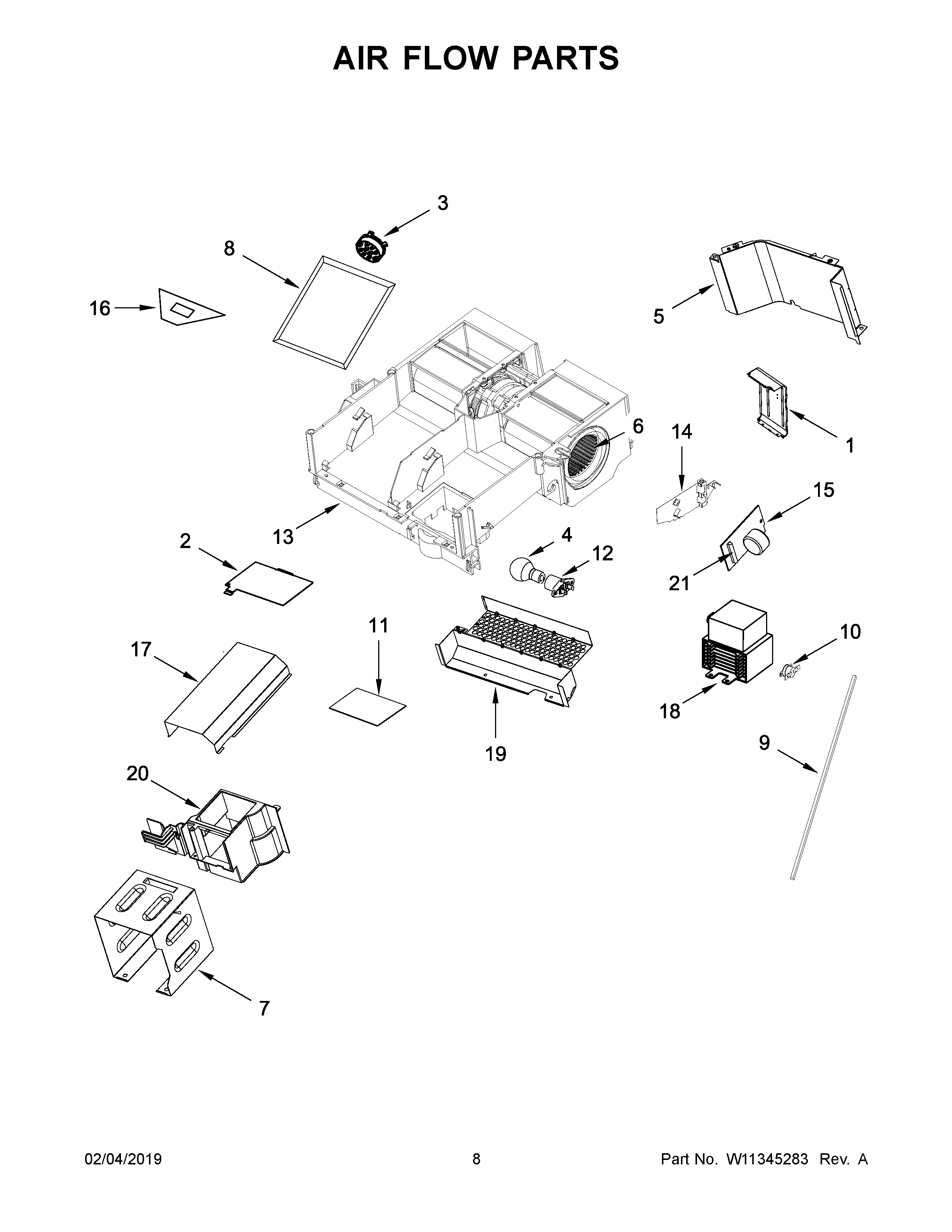

WMH75021HZ2 05 – AIR FLOW PARTS

Products

Position	Product
1	W10631697 Whirlpool Microwave Deflector Assembly
2	8206382 Whirlpool Microwave Light Cover
3	W10557536 Whirlpool Microwave Sensor
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	W10533116 Whirlpool Microwave Deflector Assembly
6	W11545875 Whirlpool Microwave Fan Motor
7	W10556824 Whirlpool Microwave Housing
8	8206230A Whirlpool Microwave Charcoal Filter
9	SEAL, FOAM
10	W10598693 Whirlpool Microwave Thermostat Fix
11	W10531724 Whirlpool Microwave Lamp Glass
12	WPW10210878 Whirlpool Microwave LMP Housing
13	W10533096 Whirlpool Microwave Air Duct
14	W10533484 Whirlpool Microwave Air Duct
15	WPW10531156 Whirlpool Microwave Filter
16	W10810142 Whirlpool Relief Strain
17	OUTLET, CAVITY (BACK)
18	W10818686 Whirlpool Magnetron
19	W10629803 Whirlpool Microwave Side Cover
20	OUTLET, CAVITY (FRONT)
21	FUSE-THRML
