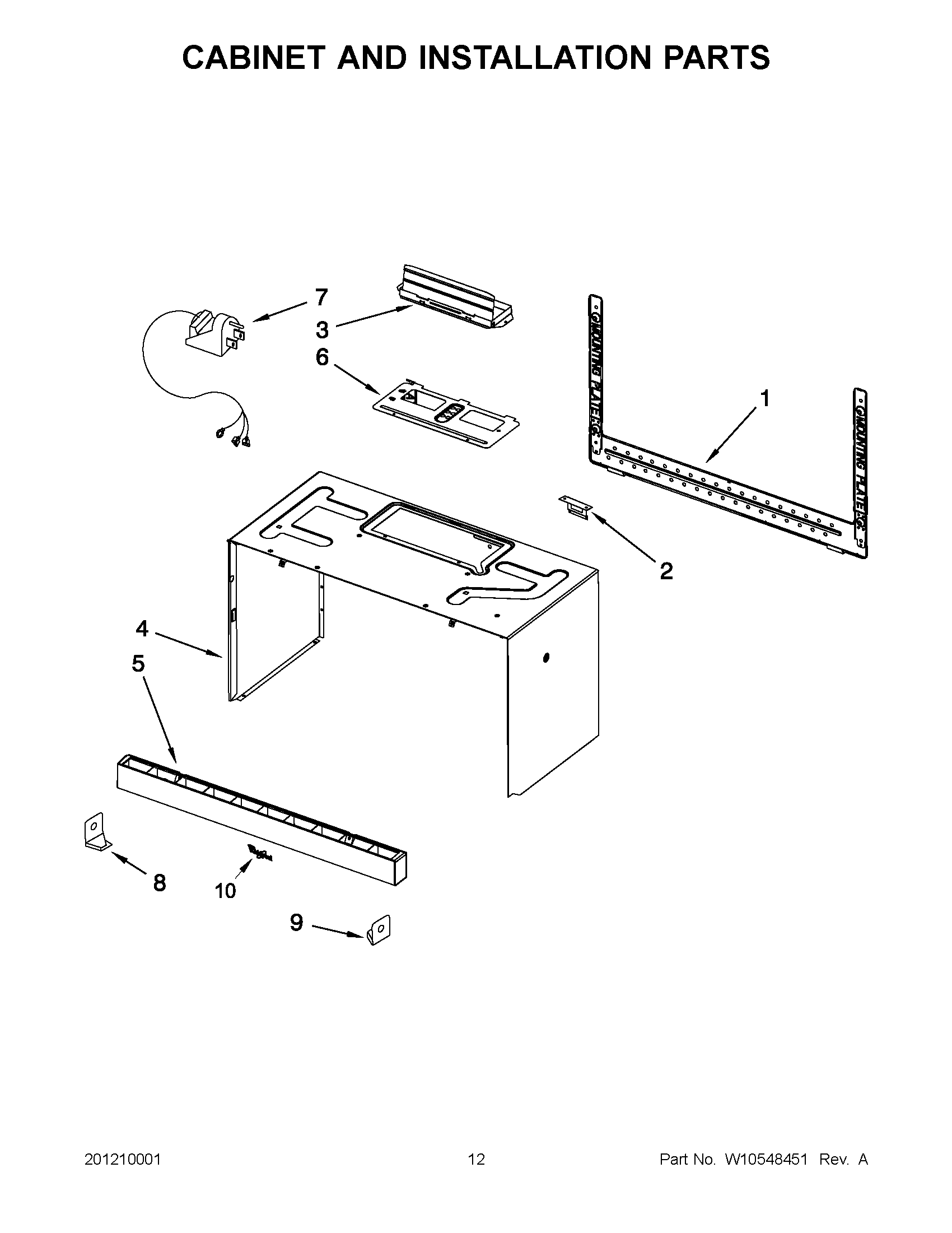

WMH75520AS0 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	WP8169704 Whirlpool Screw
NI	MISCELLANEOUS, INVERTER CABLE P23 TO CN7201 INVERTER
NI	MISCELLANEOUS, MAIN HARNESS
NI	Hdlmp/TT Wire Assy
NI	8205948 Whirlpool Microwave Mount
NI	MISCELLANEOUS, WIRE, HIGH VOLTAGE
NI	W10539840 Whirlpool Microwave Wire Harness
NI	W10190018 Whirlpool Microwave Template
1	W11025649 Whirlpool Microwave Mounting Plate
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	WPW10462001 Whirlpool Microwave Cab Wrapper
4	WPW10462003 Whirlpool Oven Microwave Cabinet Wrapper
5	W10286322 Whirlpool Microwave Vent Grill
5	GRILLE, VENT (BLACK)
5	W10286318 Whirlpool Microwave Vent Grill
6	COVER, HOOD FAN MOTOR
7	W10708076 Whirlpool Microwave Power Cord
8	W10810989 Whirlpool Microwave Mounting Bracket
8	W11026306 Whirlpool Microwave Mounting Bracket
9	W10703282 Whirlpool Microwave Mounting Bracket
9	W10830163 Whirlpool Microwave Mounting Bracket
10	W11178521 Whirlpool Dishwasher Nameplate
